MAHLE LX 3542 Air Filter Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, function, and maintenance of the MAHLE LX 3542 Air Filter. The engine air filter is a critical component of your vehicle's engine system, designed to protect the engine from harmful contaminants such as dust, dirt, and debris, ensuring optimal performance and longevity.

2. Safety Information

Always prioritize safety when working on your vehicle. Failure to follow safety precautions can result in injury or damage to the vehicle.

• Ensure the vehicle's engine is turned off and cool before beginning any work.
• Wear appropriate personal protective equipment, such as gloves and eye protection.
• Consult your vehicle's owner's manual or service manual for specific instructions and safety warnings related to your vehicle model.
• Keep children and pets away from the work area.

3. Product Overview

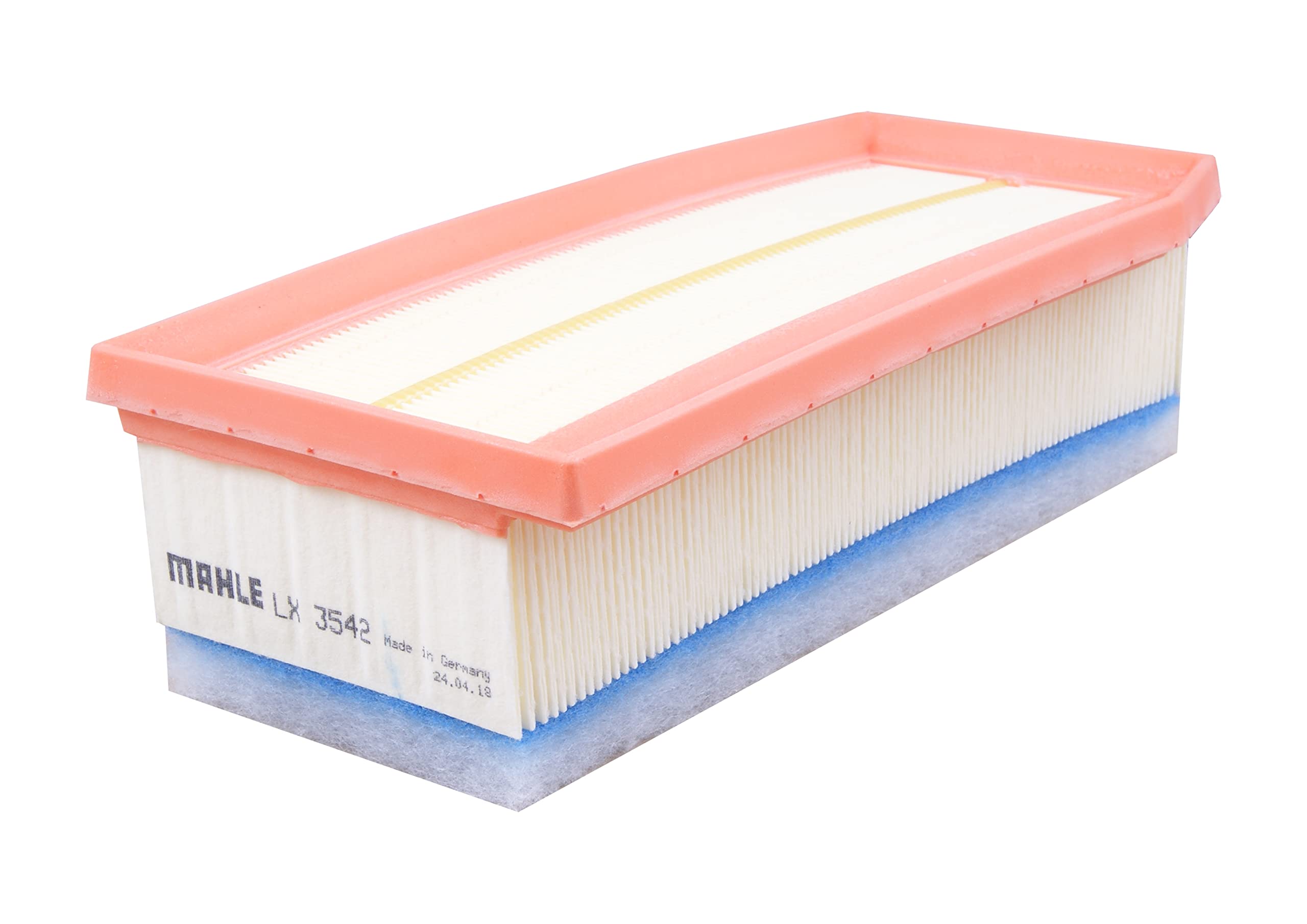

The MAHLE LX 3542 is a high-quality engine air filter designed to meet or exceed original equipment specifications. It effectively filters incoming air, preventing abrasive particles from entering the engine's combustion chambers. This helps maintain engine efficiency, reduce wear, and prolong engine life.

Figure 1: A selection of MAHLE air filters, showcasing various designs including rectangular and cylindrical forms. The LX 3542 is a rectangular filter designed for specific vehicle applications.

Equivalent OEM Part Numbers:

• LADA: 165460509R
• NISSAN: 1654600Q3D
• RENAULT: 165460509R, 165467674R, 165469843R, 8660003761
• DACIA: 165467674R, 165469843R, 8660003761

4. Setup (Installation)

The installation process for the MAHLE LX 3542 Air Filter typically involves the following steps. Always refer to your vehicle's specific service manual for detailed instructions and diagrams.

1. Locate the Air Filter Housing: The air filter housing is usually a black plastic box located under the hood, connected to the engine's air intake system.
2. Open the Housing: Depending on your vehicle, the housing may be secured with clips, screws, or a combination of both. Carefully unfasten these to open the housing cover.
3. Remove the Old Filter: Gently lift out the old air filter. Note its orientation to ensure the new filter is installed correctly.
4. Inspect and Clean: While the housing is open, inspect the interior for any debris, leaves, or dust. Clean the housing thoroughly with a damp cloth if necessary.
5. Insert the New Filter: Place the new MAHLE LX 3542 Air Filter into the housing, ensuring it sits flush and correctly oriented. The foam frame material should create a proper seal.
6. Close the Housing: Securely reattach the housing cover, ensuring all clips or screws are fastened properly to prevent unfiltered air from entering the engine.

Figure 2: An array of MAHLE air filters, demonstrating the variety of shapes and sizes available. The LX 3542 is a panel-type filter, similar to some shown here, designed for specific vehicle applications.

5. Operating

The MAHLE LX 3542 Air Filter operates passively once installed. Its primary function is to continuously filter the air entering your engine. There are no active controls or adjustments required for its operation. Proper installation ensures that the filter performs its function effectively, allowing clean air to reach the engine while trapping contaminants.

6. Maintenance

Regular inspection and timely replacement of the air filter are crucial for maintaining engine health and performance.

• Inspection: Periodically inspect the air filter for signs of dirt, debris, leaves, insects, or damage. A heavily soiled filter will appear dark and clogged.
• Replacement Schedule: Refer to your vehicle manufacturer's recommended maintenance schedule for air filter replacement intervals. These typically range from every 15,000 to 30,000 miles (24,000 to 48,000 kilometers), but can vary based on driving conditions (e.g., dusty environments may require more frequent replacement).
• Benefits of Timely Replacement: Replacing a dirty air filter improves engine performance, fuel efficiency, and reduces harmful emissions.

7. Troubleshooting

A clogged or improperly installed air filter can lead to several issues. If you experience any of the following symptoms, inspect your air filter as a potential cause:

• Reduced Engine Performance: The engine may feel sluggish, especially during acceleration.
• Decreased Fuel Efficiency: A restricted airflow can cause the engine to work harder, consuming more fuel.
• Check Engine Light: In some modern vehicles, a severely clogged air filter can trigger the check engine light.
• Unusual Engine Noises: A whistling or sucking sound might indicate an improperly sealed air filter housing.

Solution: Inspect the air filter. If it is dirty, replace it with a new MAHLE LX 3542 filter. Ensure the air filter housing is properly sealed after installation.

8. Specifications

9. Warranty and Support

For detailed warranty information, technical assistance, or customer support regarding your MAHLE LX 3542 Air Filter, please refer to the official MAHLE website or contact your authorized MAHLE dealer. Keep your purchase receipt as proof of purchase.
