Crimestopper REVO1.1 REVO-1 One-Button RF Add-on Kit Instruction Manual

Introduction

This manual provides essential information for the proper setup, operation, and maintenance of your Crimestopper REVO1.1 REVO-1 One-Button RF Add-on Kit. Please read these instructions carefully before installation and use to ensure optimal performance and safety.

Product Overview and Features

The Crimestopper REVO1.1 REVO-1 is a 1-Way RF Add-on Kit designed to enhance your vehicle's remote start or security system. It provides convenient remote control functionality.

• 1-Way RF Kit: Provides reliable radio frequency communication.
• Two 1-Button Remotes: Includes two compact remote controls for primary functions.
• Extended Range: Offers an operating range of up to 1500 feet.
• Door Unlock Functionality: Capable of unlocking doors when the vehicle is started remotely.
• System Compatibility: Specifically designed to integrate with OFA (Omega Research) and Fortin integration products.

Package Contents

Verify that all items are present in the package:

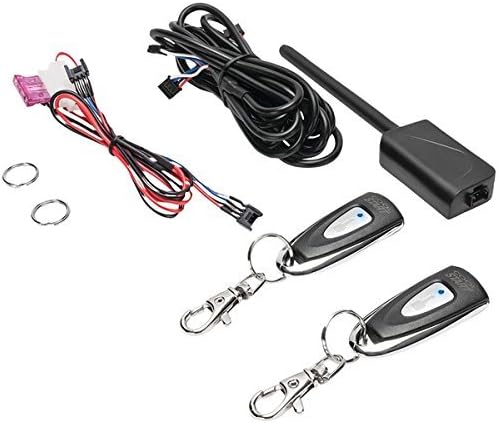

Image: Contents of the Crimestopper REVO1.1 REVO-1 One-Button RF Add-on Kit. This includes two black 1-button remote controls with metal key rings and clasps, a wiring harness with a fuse, and a black antenna module with an attached cable.

• Two (2) 1-Button Remote Controls
• One (1) RF Antenna Module
• One (1) Wiring Harness
• Installation Hardware (e.g., key rings)

Setup and Installation

The Crimestopper REVO1.1 REVO-1 RF Add-on Kit requires integration with an existing compatible remote start or security system (OFA or Fortin products). Due to the complexity of vehicle electrical systems and the need for proper integration, professional installation by a qualified technician is highly recommended.

General Installation Considerations:

• Ensure the vehicle's battery is disconnected before beginning any electrical work.
• Mount the RF antenna module in a location that provides optimal signal reception, away from metal obstructions.
• Connect the wiring harness according to the specific instructions provided with your compatible OFA or Fortin integration product.
• Properly secure all wiring to prevent damage or interference.

Refer to the installation guide of your primary remote start/security system for detailed wiring diagrams and programming procedures for the REVO1.1 REVO-1 add-on kit.

Operating Instructions

The 1-button remote control typically performs multiple functions based on the duration or sequence of button presses. The exact operation may vary slightly depending on how it is programmed with your main remote start/security system.

Common Functions (Example):

• Remote Start/Stop: Press and hold the button for approximately 3 seconds.
• Lock/Arm: Press the button briefly.
• Unlock/Disarm: Press the button briefly twice (or as programmed).
• Trunk Release: Press and hold the button for a longer duration (e.g., 5 seconds).

Always refer to the programming instructions of your main remote start/security system for the precise button functions and sequences.

Maintenance

• Remote Battery Replacement: If the remote's range decreases or it stops responding, the battery may need replacement. Consult the remote's specific instructions for battery type and replacement procedure.
• Cleaning: Clean the remote controls with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
• Environmental Protection: Keep remote controls away from extreme temperatures, direct sunlight, and moisture.

Troubleshooting

If you experience issues with your REVO1.1 REVO-1 kit, consider the following:

• Remote Not Responding:
  • Check the remote control battery.
  • Ensure you are within the operating range (up to 1500 ft).
  • Verify there are no major obstructions between the remote and the vehicle.
  • Re-program the remote to the system if necessary (refer to your main system's manual).
• Reduced Range:
  • Replace the remote battery.
  • Check the antenna module's placement and connections.
  • Avoid areas with high radio frequency interference.
• System Malfunction: If the issue persists, consult a professional installer or contact Crimestopper technical support.

Specifications

Warranty and Support

For specific warranty information, please refer to the documentation included with your purchase or visit the official Crimestopper website. For technical assistance, troubleshooting beyond this manual, or to locate an authorized installer, please contact Crimestopper customer support.

Manufacturer: Crimestopper

ASIN: B01M8F17YO

Manufacturer Link: Visit the Crimestopper Store on Amazon
