Introduction
Welcome to the Tamiya TT-02R Chassis Kit. This manual provides essential information for the assembly, setup, operation, and maintenance of your 1:10 scale remote-controlled vehicle. The TT-02R is an enhanced version of the TT-02 chassis, featuring various tuning parts for improved performance.
Product Overview
The Tamiya TT-02R chassis kit (model 47326) is designed for enthusiasts seeking a versatile and upgradeable platform for remote-controlled car racing and hobby building. This kit includes several performance-enhancing components to optimize the vehicle's handling and durability.
Key Features:
- Improved TT-02 chassis with tuning parts for racing.
- Enhanced suspension, engine mount, drive shafts, and differential outputs.
- Newly developed aluminum rear axle supports with 3-degree forward track for greater stability.
- CVA oil dampers in silver with black springs.
- Fashionable 10-spoke wheels included.
Figure 1: Tamiya TT-02R Chassis Kit box art highlighting key features and components.
Video 1: An overview of the Tamiya TT-02R Chassis Kit, showcasing its components and features. This video provides a visual introduction to the product.
Included Components
The Tamiya TT-02R Chassis Kit includes the following primary components:
- Aluminum rear uprights
- Highly reliable drivetrain
- Full ball bearings
- CVA oil dampers
- TT-02 high speed gear set (68T)
- 10-spoke wheels and slick tires
- Aluminum motor mount
- Propeller shaft and joints
Note: Bodywork, battery, motor, Electronic Speed Controller (ESC), receiver, servo, and remote control equipment are not included and must be purchased separately.
Assembly Instructions
The TT-02R is a model kit that requires assembly. Please follow the detailed, step-by-step instructions provided in the official Tamiya instruction booklet included with your kit. This section provides a general overview of the assembly process.
General Assembly Steps:
- Chassis Construction: Begin by assembling the main chassis components, ensuring all parts are securely fitted.
- Drivetrain Assembly: Install the aluminum propeller shaft, joints, and the high-speed gear set. Ensure all gears rotate smoothly.
- Suspension System: Assemble the CVA oil dampers and attach them to the chassis along with the aluminum rear uprights. Verify proper suspension movement.
- Wheel and Tire Installation: Mount the slick tires onto the 10-spoke wheels and attach them to the axles.
- Motor Mount: Install the aluminum motor mount.
- Electronics Installation: Refer to the specific instructions for installing your chosen motor, ESC, receiver, and servo. Proper wiring and calibration are crucial.
Tools Required: A Phillips head screwdriver (or Japanese Industrial Standard screwdriver), side cutters for sprue removal, and a soldering iron for electronics wiring may be required.

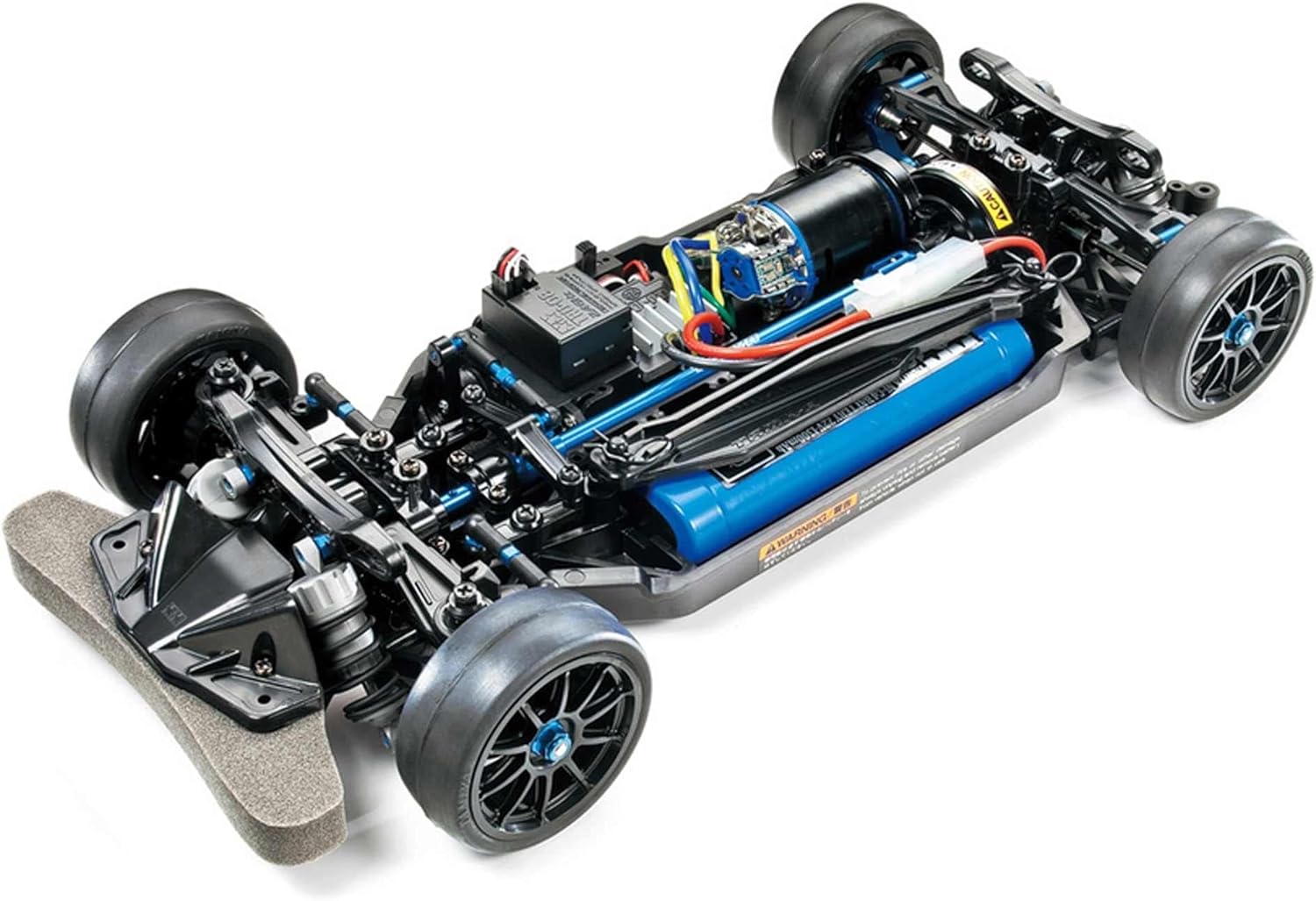

Figure 2: An assembled Tamiya TT-02R chassis, showcasing the layout of internal components such as the motor, battery compartment, and suspension system.
Figure 3: Detailed view of the blue aluminum motor mount and the gear assembly, designed for efficient heat dissipation and precise gear mesh.
Figure 4: A close-up of the blue aluminum rear upright, which contributes to enhanced stability and durability of the rear suspension.
Figure 5: Detailed view of the CVA oil dampers, featuring silver bodies and black springs, providing effective shock absorption for improved handling.
Setup
After assembly, proper setup of the electronic components is essential for optimal performance.
Electronic Components Setup:
- Motor and ESC: Connect the motor to the Electronic Speed Controller (ESC) according to the manufacturer's instructions. Calibrate the ESC with your remote control.
- Servo: Install and connect the steering servo. Adjust the servo linkages to ensure proper steering alignment.
- Receiver and Transmitter: Bind your receiver to your transmitter (remote control). Test all functions (steering, throttle) before operating the vehicle.
- Battery: Ensure your battery is fully charged and securely installed in the chassis.
Operating Instructions
Before operating your Tamiya TT-02R, ensure all components are correctly assembled and electronics are properly set up.
Pre-Operation Checklist:
- Verify all screws are tightened.
- Check battery charge level.
- Confirm proper function of steering and throttle.
- Inspect tires for secure fitment and wear.
Driving Tips:
- Start with slow speeds to familiarize yourself with the vehicle's handling characteristics.
- Avoid operating in wet conditions or areas with excessive dust and debris to prevent damage to electronics and moving parts.
- Practice smooth throttle and steering inputs for better control.
Maintenance
Regular maintenance will extend the lifespan and ensure consistent performance of your TT-02R chassis.
Routine Maintenance:
- Cleaning: After each use, clean the chassis to remove dirt, dust, and debris. Use a soft brush or compressed air.
- Inspection: Regularly inspect all moving parts, including gears, bearings, and suspension components, for wear or damage.
- Lubrication: Apply appropriate lubricants to moving parts as recommended in the official Tamiya manual.
- Screw Check: Periodically check and tighten all screws, as vibrations during operation can loosen them.
- Dampers: Inspect CVA oil dampers for leaks and ensure smooth operation. Refill or replace oil as needed.
Troubleshooting
This section addresses common issues you might encounter with your RC chassis.
Common Issues and Solutions:
- Vehicle not responding: Check battery connections, ensure transmitter and receiver are bound, and verify power switches are on.
- Poor steering: Inspect servo connections, check steering linkages for obstructions, and ensure servo is properly calibrated.
- Loss of power: Check battery charge, motor connections, and ESC calibration.
- Unusual noises: Inspect gears for debris or damage, check bearings, and ensure all moving parts are properly lubricated.
For more detailed troubleshooting, refer to the official Tamiya instruction manual or contact Tamiya customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | TAMIYA |
| Model Name | TT-02R |
| Item Model Number | 47326 |
| Scale | 1:10 |
| Drive System | Shaft Driven 4WD |
| Material | Plastic |
| Color | Black |
| Item Dimensions (L x W x H) | 5.12 x 18.5 x 8.46 inches |
| Item Weight | 3.52 pounds (1.6 Kilograms) |
| Recommended Age | 14 years and up |
| Special Features | Aluminum rear uprights, aluminum motor mount, aluminum propeller shaft and joints, full ball bearings, CVA oil dampers, TT-02 high speed gear set (68T), 10-spoke wheels and slick tires. |
Warranty and Support
For warranty information, technical support, or inquiries regarding replacement parts, please refer to the official Tamiya website or contact Tamiya customer service directly. Keep your purchase receipt as proof of purchase.
