Introduction
This manual provides comprehensive instructions for the safe installation, operation, and maintenance of your Kichler 310700WSP Flyy 60-inch LED Ceiling Fan. Please read all instructions carefully before beginning installation and retain this manual for future reference.

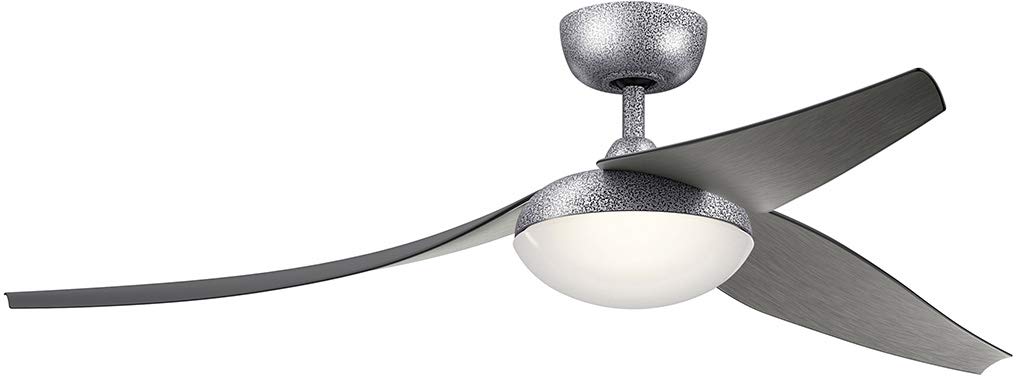

The Kichler 310700WSP is a 60-inch ceiling fan featuring a Weathered Steel Powder Coat finish and three driftwood-style blades. It is designed to silently move air with precision, offering both ventilation and integrated LED lighting.
Safety Information
WARNING: To reduce the risk of fire, electric shock, or personal injury, always follow these guidelines:
- Turn off power at the circuit breaker before installation or servicing.
- All wiring must be in accordance with national and local electrical codes.
- Consult a qualified electrician if you are unsure about wiring procedures.
- Mount the fan only to an outlet box marked "Acceptable for Fan Support of 35 lbs (15.9 kg) or less" and use the mounting screws provided with the outlet box.
- Do not operate the fan with damaged blades.
- Do not insert objects into the path of the fan blades.
Package Contents
Verify that all components are present before beginning installation:
- Motor Housing Assembly
- Fan Blades (3)
- Downrod Assembly
- Mounting Bracket
- Canopy
- Light Kit Assembly
- Hardware Pack (screws, washers, wire nuts)
- Wall Control (if included with specific model variant)
Setup and Installation
- Turn Off Power: Before starting, ensure power is disconnected at the circuit breaker or fuse box to prevent electrical shock.
- Mounting Bracket Installation: Secure the mounting bracket to the ceiling outlet box. Ensure the outlet box is properly secured to the building structure and can support the fan's weight.
- Downrod Assembly: Insert the downrod through the canopy and connect it to the motor housing. Secure with the provided pin and screw.
- Hanging the Fan: Carefully lift the fan assembly and hang it from the mounting bracket using the ball joint.
- Wiring Connections: Connect the fan's electrical wires to the household wiring according to the wiring diagram provided in the full instruction manual (not included here). Ensure all connections are secure using wire nuts.
- Canopy Installation: Slide the canopy up to the ceiling and secure it to the mounting bracket with the provided screws.
- Blade Attachment: Attach the three fan blades to the motor housing using the blade screws. Ensure they are firmly secured.
- Light Kit Installation: Connect the light kit wiring to the fan motor wiring. Secure the light kit assembly to the bottom of the fan motor housing.
- Restore Power: Once all connections are made and secured, restore power at the circuit breaker.
Operating Instructions
The Kichler 310700WSP fan is typically operated via a wall control or a pull chain, depending on the specific model variant and installation. The product specifications indicate "Wall Control" and "Pull Chain" as switch types, suggesting flexibility or different versions.
- Fan Speed Control: Use the wall control or pull chain to cycle through fan speeds (High, Medium, Low, Off).
- Light Control: Use the wall control or a separate pull chain (if applicable) to turn the integrated LED light on or off.
- Directional Switch: A slide switch on the fan motor housing controls the direction of airflow.
- Summer Mode (Counter-clockwise): Pushes air down, creating a cooling effect.
- Winter Mode (Clockwise): Pulls air up, circulating warm air trapped near the ceiling.
Maintenance
Regular maintenance ensures optimal performance and longevity of your ceiling fan.
- Cleaning: Periodically clean the fan blades and motor housing with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Tighten Fasteners: Check all screws and fasteners annually to ensure they are secure. Loose connections can cause noise and wobble.
- Blade Balance: If the fan wobbles, ensure all blades are securely attached and consider using a blade balancing kit (not included) if necessary.
- Lubrication: The fan motor is permanently lubricated and does not require additional oiling.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power to the fan; Loose wire connections; Incorrect wiring. | Check circuit breaker/fuse; Verify all wire connections are secure; Consult wiring diagram. |
| Fan wobbles | Loose blade screws; Unbalanced blades; Loose mounting bracket. | Tighten all blade screws; Use a blade balancing kit; Ensure mounting bracket is secure. |
| Fan is noisy | Loose screws; Motor hum; Blades hitting an obstruction. | Check and tighten all screws; Ensure no obstructions are in the fan's path. |
| Light does not work | Loose wire connection; Faulty LED driver. | Check light kit wiring; Contact customer support for LED driver replacement. |
Specifications
- Model: Kichler 310700WSP Flyy
- Fan Size: 60 inches
- Blades: 3, Plastic
- Finish: Weathered Steel Powder Coat
- Motor: DC Motor (implied by efficiency and quiet operation)
- Light: Integrated LED, 30 watts
- Voltage: 120 Volts
- Wattage (Fan Only): 17.00 Watts
- Air Flow Capacity: 7656 Cubic Feet Per Minute
- Airflow Efficiency: 232 Cubic Feet Per Minute Per Watt
- Control Method: Wall Control, Pull Chain
- Indoor/Outdoor Usage: Indoor
- Item Weight: 15.4 Pounds
- UL Listed: Yes
Image: EnergyGuide label for the Kichler 310700WSP Flyy Ceiling Fan. It shows an estimated yearly energy cost of $17, based on 33 watts energy use. The airflow is 7,656 Cubic Feet Per Minute with an efficiency of 232 Cubic Feet Per Minute Per Watt.
Warranty Information
The Kichler 310700WSP Flyy Ceiling Fan comes with a Limited Lifetime Warranty. For specific terms and conditions, please refer to the warranty documentation included with your purchase or visit the official Kichler website.
Customer Support
If you have any questions, require technical assistance, or need to report a missing part, please contact Kichler customer support:
- Website: www.kichler.com
- Phone: Refer to the Kichler website for regional contact numbers.
Please have your model number (310700WSP) and purchase date available when contacting support.
