1. Product Overview
This manual provides instructions for the installation, operation, and maintenance of the Delta Faucet Zura T4774-PNFL Single Handle Floor Mount Tub Filler with Handheld Shower. This product is designed to provide water delivery to a freestanding bathtub and includes a separate handheld shower for additional functionality.
Image 1.1: Delta Faucet Zura T4774-PNFL Floor Mount Tub Filler with Handheld Shower in Polished Nickel finish.
2. Safety Information
- Read all instructions before installation and use.
- Ensure all local plumbing and building codes are met.
- Turn off the main water supply before beginning any installation or maintenance.
- Wear appropriate personal protective equipment, such as safety glasses, during installation.
- If you are unsure about any part of the installation, consult a qualified plumber.
3. Package Contents
Verify that all components are present before beginning installation:
- Zura Floor Mount Tub Filler Assembly
- Hand Shower with Hose
- Mounting Hardware
- Installation Guide (this document)
Note: The rough-in valve (Delta model R4700-FL) is sold separately and is required for installation.
4. Specifications
| Feature | Specification |
|---|---|
| Brand | DELTA |
| Model Number | T4774-PNFL |
| Color/Finish | Polished Nickel |
| Material | Brass |
| Number of Handles | 2 (Main handle for temperature/flow, diverter handle for tub/hand shower) |
| Mounting Type | Floor Mount |
| Item Weight | 24.3 Pounds (approx.) |
| Product Dimensions (L x W x H) | 13.13 x 10.25 x 42.38 inches (approx.) |
| Flow Rate | 2 Gallons Per Minute (GPM) |
| Spout Height | 40.63 Inches |
| Spout Reach | 9.25 Inches |
| ADA Compliant | Yes |
5. Installation
Professional installation is recommended for this product. The rough-in valve (Delta model R4700-FL) must be installed prior to the tub filler assembly. Refer to the separate installation instructions provided with the rough-in valve for detailed steps.
5.1 Pre-Installation Steps
- Ensure the main water supply to the installation area is turned off.
- Verify that the rough-in valve (R4700-FL) is correctly installed and secured to the floor according to its specific instructions.
- Clear the installation area of any debris.
5.2 Tub Filler Assembly Installation (General Steps)
These are general steps. Always refer to the detailed diagram and instructions included with your specific product packaging.
- Connect the hot and cold water lines from the rough-in valve to the tub filler assembly. Ensure all connections are secure and watertight.
- Position the tub filler assembly over the rough-in valve and secure it to the floor using the provided mounting hardware.
- Attach the handheld shower hose to the designated outlet on the tub filler.
- Place the handheld shower into its holder.
- Once all connections are made and the unit is secured, slowly turn on the main water supply and check for leaks.

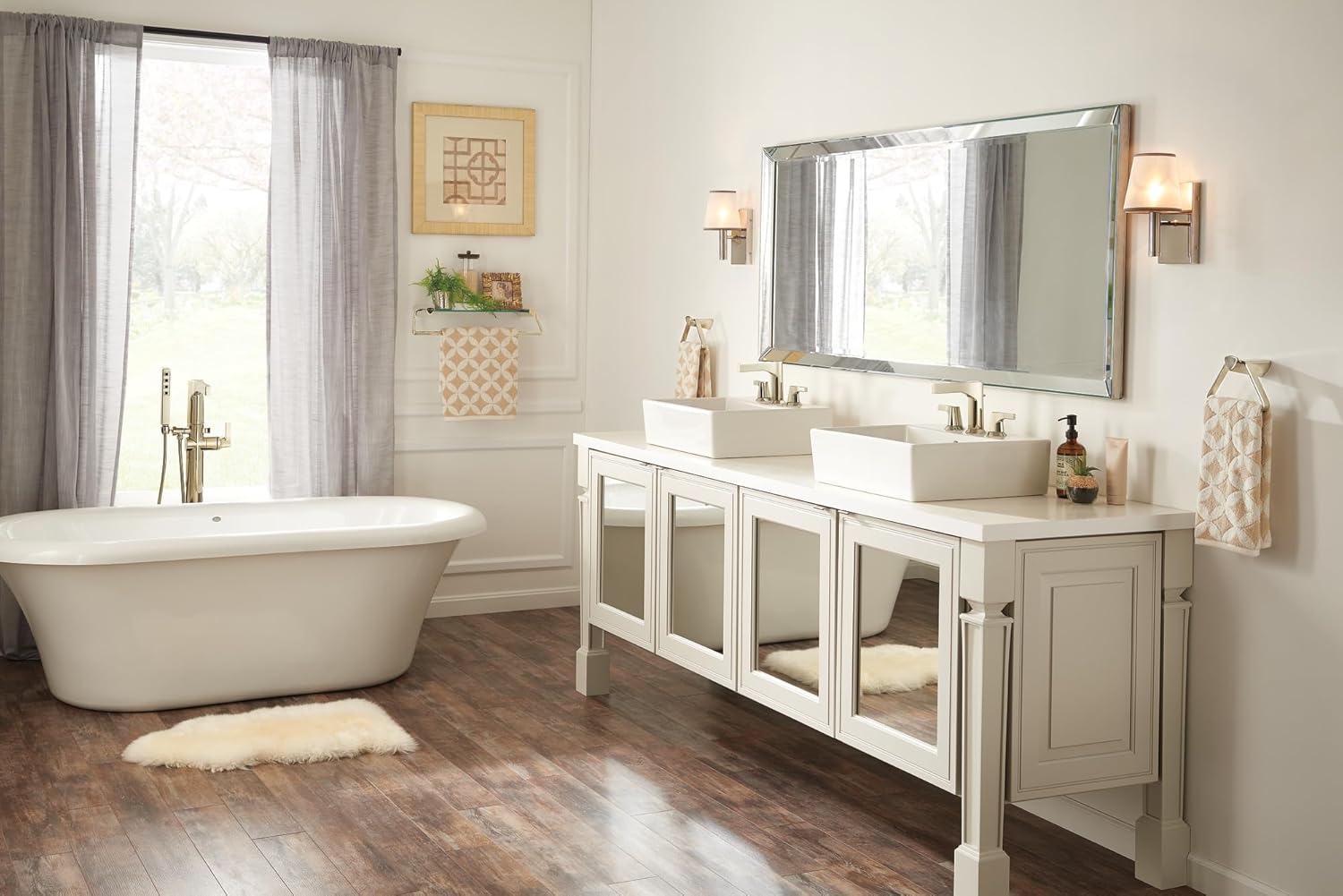

Image 5.1: Example of the Delta Faucet Zura Floor Mount Tub Filler installed in a bathroom setting.
6. Operating Instructions
6.1 Water Flow and Temperature Control
- To turn on the water, lift the main handle.
- To adjust water temperature, pivot the main handle left for hot water and right for cold water.
- To increase or decrease water flow, raise or lower the main handle.
- To turn off the water, push the main handle down to its original position.
6.2 Diverter Operation (Tub Spout / Hand Shower)
- The tub filler features a diverter handle to switch water flow between the main tub spout and the handheld shower.
- To direct water to the tub spout, ensure the diverter handle is in the default position (typically pointing towards the tub spout).
- To direct water to the handheld shower, rotate or pull the diverter handle to engage the handheld shower function.
- After use, return the diverter handle to the tub spout position.
7. Maintenance and Cleaning
7.1 General Cleaning
- Clean the faucet regularly with a soft, damp cloth.
- Use only mild soap and water. Avoid abrasive cleaners, harsh chemicals, or polishes, as these can damage the finish.
- Wipe the faucet dry after cleaning to prevent water spots.
7.2 Handheld Shower Maintenance
- Periodically check the handheld shower nozzles for mineral buildup.
- If mineral deposits are present, gently rub the rubber nozzles to dislodge them.
- Ensure the shower hose is not kinked or twisted during use or storage.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow |
|
|
| Leaks at Connections |
|
|
| Water Temperature Issues |
|
|
If problems persist after attempting these solutions, contact Delta Faucet customer support.
9. Warranty Information
This Delta Faucet product is covered by a Faucet and Finish Lifetime Limited Warranty. This warranty covers defects in material and manufacturing workmanship for as long as the original consumer purchaser owns the home in which the faucet was first installed. For full warranty details, terms, and conditions, please refer to the official Delta Faucet website or contact customer support.
10. Customer Support
For technical assistance, replacement parts, or warranty claims, please contact Delta Faucet customer support:
- Website: www.deltafaucet.com
- Phone: Refer to the Delta Faucet website for regional contact numbers.
Please have your model number (T4774-PNFL) and date of purchase available when contacting support.
