Duramax 8 x 6 ft Pent Roof Skylight Shed

Introduction

Thank you for choosing the Duramax 8 x 6 ft Pent Roof Skylight Shed. This metal storage shed, featuring a wood imitation finish and an integrated skylight, is designed for durability and functionality. This manual provides essential information for the safe assembly, operation, and maintenance of your shed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

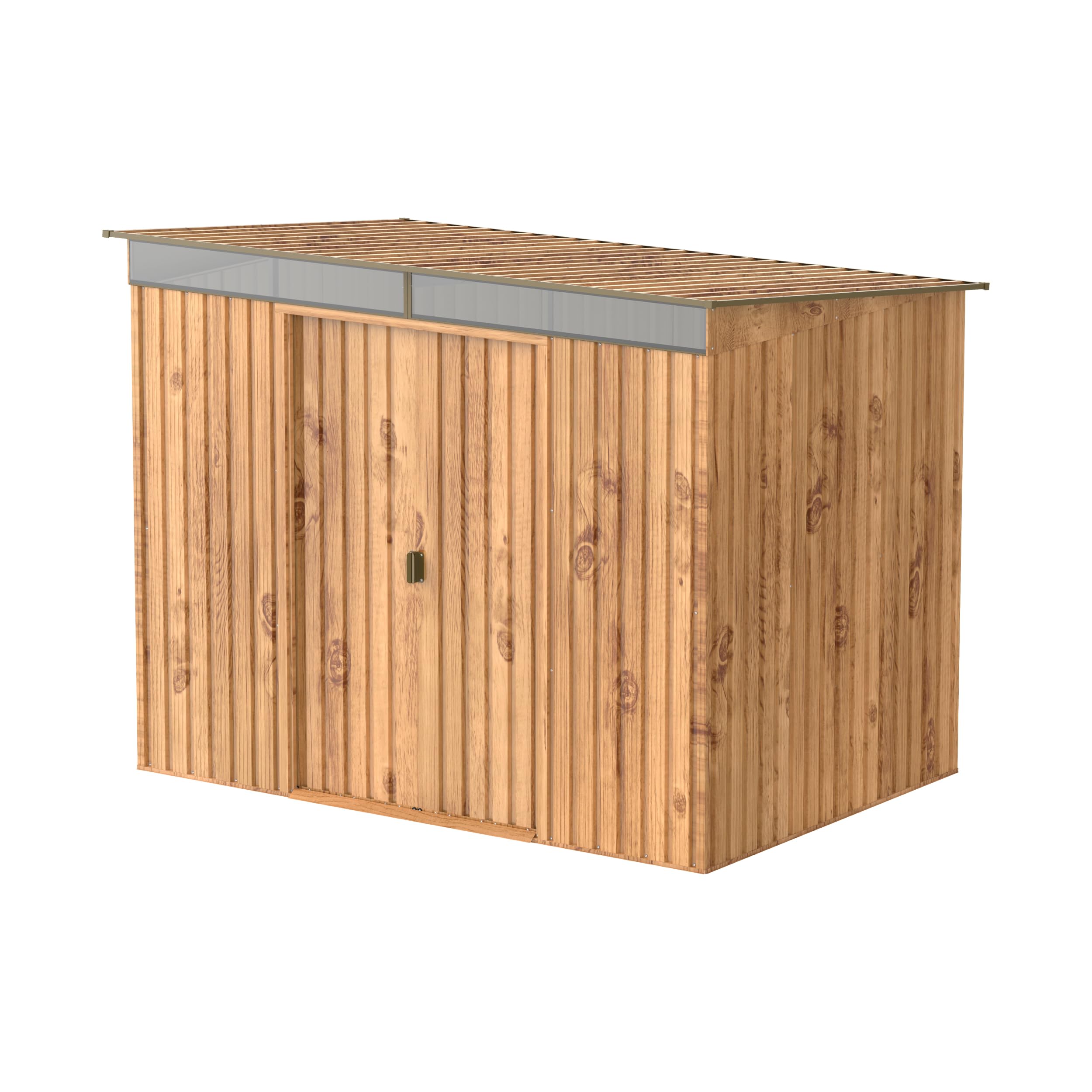

Image: The Duramax 8x6 Pent Roof Skylight Shed, showcasing its wood imitation exterior and integrated skylight.

Safety Information

Your safety is paramount. Please adhere to the following safety guidelines:

• Safety Warning: Exercise caution when opening and closing the sliding doors to prevent injury.
• Use the entry/exit ramp with care to avoid falls.
• If snow accumulation on the roof is expected, ensure it is safely removed to prevent injury. The roof is designed to withstand up to 12 lbs/sq ft of snow.
• Always wear appropriate personal protective equipment, such as gloves, during assembly to prevent cuts from metal edges.
• Ensure the shed is assembled on a solid, level base to maintain structural integrity and proper door function.
• Keep children and pets away from the assembly area.

Package Contents and Required Tools

Package Contents:

Your Duramax shed package includes all necessary panels, frame components, hardware (screws, nuts, washers), and the integrated skylight panels. Refer to the detailed parts list in the included PDF manual for verification.

Required Tools (Not Included):

• Work gloves (highly recommended)
• Phillips head screwdriver
• Adjustable wrench or socket set
• Measuring tape
• Level
• Step ladder (for roof assembly)
• Drill (optional, for pilot holes if needed)

Assembly Instructions

Assembly of the Duramax shed requires patience and attention to detail. It is strongly recommended that two people work together for assembly, especially for larger components and roof installation.

1. Prepare the Base: Ensure you have a solid, level foundation for your shed. This is crucial for proper alignment of panels and smooth operation of the sliding doors.
2. Unpack and Identify Parts: Carefully unpack all components. Each part is typically numbered or labeled. Sort them according to the parts list in the PDF manual.
3. Assemble the Base Frame: Follow the step-by-step instructions in the PDF manual to construct the shed's base frame.
4. Install Wall Panels: Attach the wall panels to the base frame, ensuring they are correctly oriented and securely fastened.
5. Assemble the Roof Structure: Construct the roof frame and attach the roof panels, including the skylight sections. Pay close attention to sealing and weatherproofing.
6. Install Doors: Mount the double sliding doors onto their tracks. Ensure they slide freely and align correctly. Install door handles and locking mechanisms.
7. Final Checks: Review all connections to ensure they are tight and secure. Check door operation and overall stability.

For detailed, illustrated, step-by-step instructions, please refer to the official PDF manual provided with your product or available for download from the manufacturer's website. The PDF manual contains critical diagrams and specific fastening sequences.

Image: An exterior view of the Duramax shed, illustrating the finished assembly.

Operating Instructions

Double Sliding Doors:

The shed features wide, high double sliding doors for easy access. To open, gently slide the doors along their tracks. To close, ensure the doors meet centrally and engage the locking mechanism if desired. The integrated entry/exit ramp facilitates movement of items in and out of the shed.

Image: The shed with its double sliding doors fully open, showing the wide access.

Image: A close-up view of the robust door handle and locking point.

Integrated Skylight:

The front integrated skylight allows natural light into the shed, reducing the need for artificial lighting during the day. Keep the skylight clean for optimal light transmission.

Image: An interior view showing the integrated skylight providing natural illumination.

Ventilation System:

The shed includes a slotted grille ventilation system in the gable to promote airflow and reduce condensation, helping to keep your stored items dry.

Image: The spacious interior of the shed, demonstrating its capacity for various storage items.

Maintenance

• Cleaning: Periodically clean the exterior and interior of the shed with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Snow Removal: In areas with heavy snowfall, regularly remove accumulated snow from the roof to prevent excessive load. The roof is reinforced to support up to 12 lbs/sq ft of snow.
• Door Tracks: Keep the sliding door tracks clear of debris to ensure smooth operation. Lubricate tracks if necessary.
• Fastener Check: Annually inspect all screws and bolts to ensure they remain tight. Re-tighten as needed.
• Ventilation: Ensure the gable ventilation grilles are not obstructed to maintain proper airflow.

Troubleshooting

• Shed feels flimsy during assembly: The metal panels are thin for ease of assembly. The shed gains significant rigidity and strength once fully assembled and all fasteners are tightened. Ensure all components are correctly installed as per the manual.
• Doors do not slide smoothly: Check that the shed is installed on a perfectly level base. Uneven ground can cause the frame to twist, affecting door alignment. Inspect door tracks for debris or damage. Lubricate tracks if necessary.
• Missing parts: Carefully re-check all packaging and the assembly area. If parts are genuinely missing, contact Duramax customer support with your model number and a description of the missing components.
• Water leakage: Ensure all roof panels are correctly overlapped and sealed as per the instructions. Check for any gaps or loose fasteners. Verify that the shed is on a level surface to prevent water pooling around the base.

Specifications

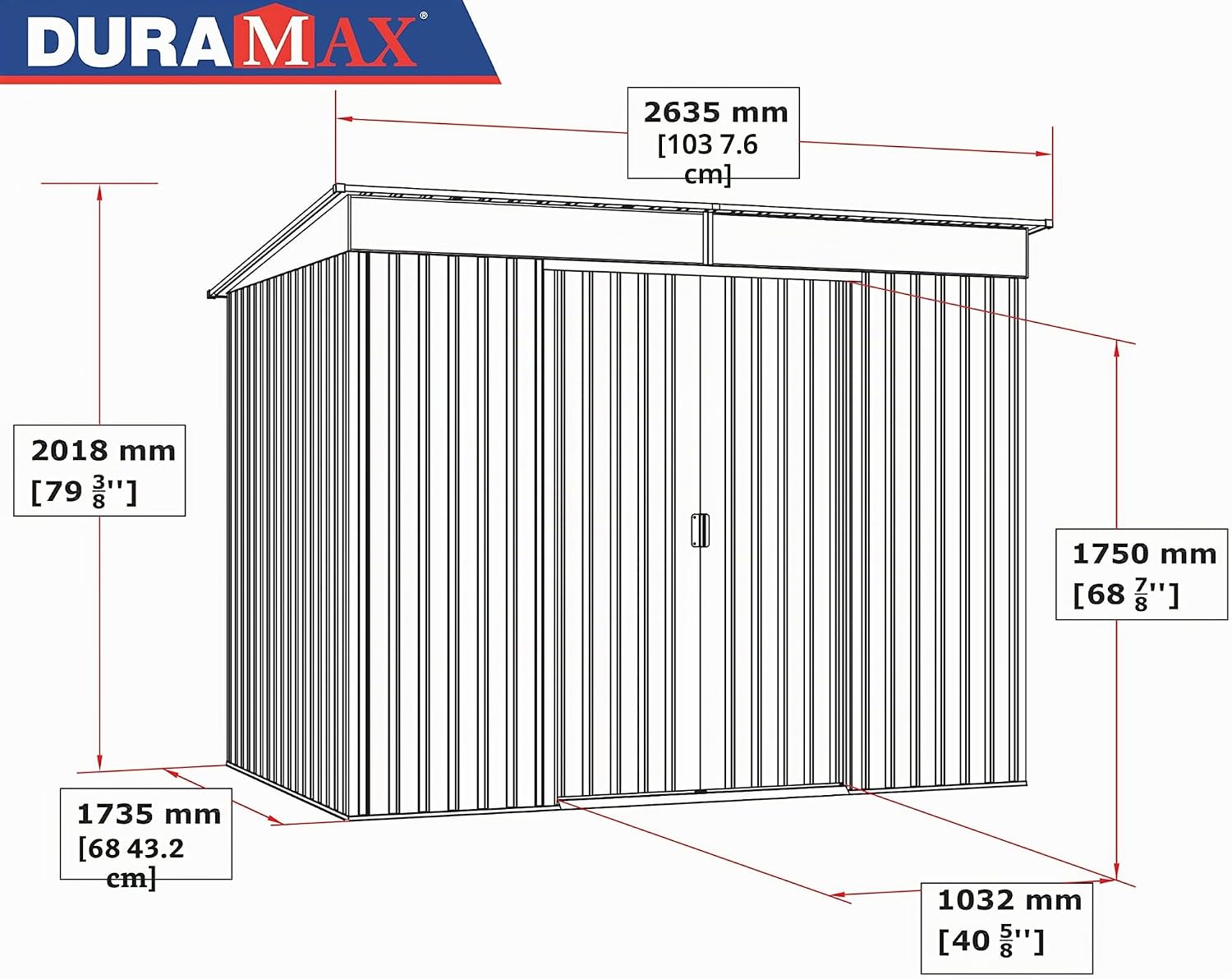

Image: Technical diagram illustrating the key dimensions of the Duramax shed.

Warranty Information

Duramax products are manufactured to high-quality standards. For specific warranty details regarding your 8 x 6 ft Pent Roof Skylight Shed, please refer to the warranty card included with your product or visit the official Duramax website. The warranty typically covers manufacturing defects under normal use and service.

Customer Support

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Duramax customer support. Have your model number (50345) and purchase information ready when contacting support for faster service.

You can often find contact information on the manufacturer's website or in the documentation included with your product.
