1. Introduction
This manual provides essential information for the safe and effective use of the Norton Quick Change Disc, 2 In D, Grit 80, TS. Please read this manual thoroughly before installation, operation, or maintenance to ensure proper handling and to prevent injury or damage.
The Norton Quick Change Disc is designed for various surface preparation tasks, including grinding, blending, deburring, and finishing on a variety of materials. Its quick-change attachment system allows for efficient disc replacement.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in serious injury or property damage.
- Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and gloves, when operating power tools with abrasive discs.
- Ensure the quick change disc is securely attached to the tool before operation.
- Do not exceed the maximum operating speed (Max. RPM) specified on the disc and in the specifications section of this manual. For this disc, the maximum RPM is 30,000.
- Inspect the disc for damage or wear before each use. Do not use damaged or worn discs.
- Ensure the workpiece is securely clamped or held to prevent movement during operation.
- Keep hands and body parts clear of the rotating disc.
- Use the correct disc for the application. This disc is an Aluminum Oxide, 80 Grit, Medium grade disc.
- Store discs in a dry, cool place to prevent degradation.
3. Product Overview
The Norton Quick Change Disc is a high-performance abrasive disc designed for efficient material removal and surface finishing. Key features include:
- Disc Diameter: 2 inches
- Attachment Type: Quick Change (Turn-On/Off system)
- Abrasive Material: Aluminum Oxide
- Grit: 80 (Medium Grade)
- Series: Vortex Rapid Prep
- Backing Material: Paper (Weight B)
- Color: Maroon
- Maximum RPM: 30,000

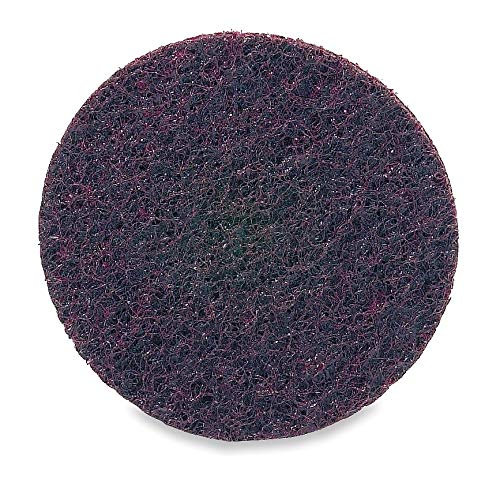

Figure 1: Norton 2-inch Quick Change Disc, 80 Grit. This image shows the maroon-colored abrasive disc with its quick-change attachment mechanism.
4. Setup and Installation
Follow these steps to properly install the quick change disc onto your compatible power tool:
- Ensure Tool is Off: Before attaching or detaching any disc, ensure your power tool is turned off and disconnected from its power source (unplugged or battery removed).
- Inspect Disc and Holder: Check both the quick change disc and the tool's disc holder for any damage, debris, or wear. Do not proceed if either component is compromised.
- Attach Disc: Align the quick change disc with the corresponding attachment system on your tool's disc holder. For "Turn-On/Off" systems, place the disc onto the holder and twist it clockwise until it is firmly seated and locked into place. Do not overtighten.
- Verify Security: Gently tug on the disc to ensure it is securely attached and does not wobble.
The quick change system is designed for rapid and secure disc replacement, minimizing downtime during your work.
5. Operating Instructions
Once the disc is securely installed and all safety precautions are observed, you can begin operation:
- Wear PPE: Always wear safety glasses, hearing protection, and gloves.
- Secure Workpiece: Ensure the material you are working on is stable and will not move during the abrasive process.
- Start Tool: Turn on your power tool. Allow the disc to reach full operating speed before making contact with the workpiece.
- Apply Light Pressure: Begin with light, even pressure. Excessive pressure can reduce disc life, generate excessive heat, and potentially damage the workpiece or tool.
- Maintain Movement: Keep the disc moving across the workpiece to ensure even material removal and prevent localized overheating.
- Monitor Disc: Observe the disc for signs of wear or clogging. Replace the disc when its abrasive properties diminish.
- Finish Operation: When finished, lift the disc from the workpiece before turning off the power tool. Allow the disc to stop rotating completely before setting the tool down.
6. Maintenance
Proper maintenance ensures optimal performance and extends the life of your Norton Quick Change Discs:
- Storage: Store discs in their original packaging or a suitable container in a dry, cool environment, away from direct sunlight and humidity. This prevents premature degradation of the abrasive material and backing.
- Inspection: Regularly inspect discs for any signs of damage, such as cracks, tears, or excessive wear. Discard any damaged discs immediately.
- Cleaning: While abrasive discs are designed to shed material, excessive buildup can occur. Do not attempt to clean clogged discs with harsh chemicals or abrasive tools, as this can damage the disc. Replace clogged discs.
- Handling: Handle discs carefully to avoid bending or creasing, which can compromise their integrity and performance.
7. Troubleshooting
This section addresses common issues encountered during the use of quick change abrasive discs.
| Problem | Possible Cause | Solution |
|---|---|---|
| Disc wears out quickly | Excessive pressure; incorrect grit for material; disc overheating; worn out disc holder. | Reduce pressure; use appropriate grit; allow disc to cool; inspect and replace disc holder if worn. |
| Poor material removal | Disc is clogged; disc is worn; insufficient pressure; incorrect grit for material. | Replace disc; increase pressure slightly; use coarser grit if needed. |
| Disc wobbles or vibrates | Disc not properly seated; damaged disc; worn disc holder; tool imbalance. | Re-seat disc; replace damaged disc; inspect and replace disc holder; check tool for issues. |
| Excessive heat generation | Excessive pressure; prolonged contact with one area; incorrect disc for application. | Reduce pressure; keep disc moving; ensure disc is suitable for the material and task. |
8. Specifications
| Attribute | Value |
|---|---|
| Brand | Norton |
| Item | Quick Change Disc |
| Disc Diameter | 2 inches (50.8 mm) |
| Attachment Type | Quick Change (Turn-On/Off) |
| Abrasive Type | Non-Woven |
| Abrasive Material | Aluminum Oxide |
| Grit Number | 80 |
| Grit Type / Grade | Medium |
| Series | Vortex Rapid Prep |
| Backing Material | Paper |
| Backing Weight | B |
| Color | Maroon |
| Maximum Rotational Speed (Max. RPM) | 30,000 RPM |
| Product Dimensions (L x W) | 2"L x 2"W |
| Manufacturer | NORTON |
9. Warranty Information
Specific warranty details for this Norton Quick Change Disc are not provided in the product information. For warranty inquiries, please refer to the official Norton website or contact Norton customer support directly. Abrasive products are typically considered consumables and may have limited or no warranty against wear and tear.
10. Customer Support
For technical assistance, product information, or support regarding your Norton Quick Change Disc, please visit the official Norton website or contact their customer service department. Contact information can typically be found on the brand's official website.
Norton Official Website: www.nortonabrasives.com
Note: This link is provided for informational purposes and may be subject to change.
