Corona RP 4224D RatchetCUT Pruner User Manual

1. Introduction

The Corona RP 4224D RatchetCUT Pruner is a bypass pruner designed for easily cutting small- and medium-sized branches and plants up to ¾ inches in diameter. This tool is engineered to reduce effort and hand fatigue, especially when cutting larger branches, thanks to its innovative four-gear mechanism. Its lightweight aluminum body, anti-blister ComfortGEL® grips, solid one-piece construction, and coated high-carbon steel blades ensure durability and ease of use. It is particularly suitable for users with arthritis or limited hand strength, providing clean cuts with less physical exertion.

2. Key Features

• RatchetCUT 4-Gear Mechanism: Increases cutting power with each click, allowing for easier cuts on thicker branches.
• High-Carbon Steel Blades: Provides maximum durability and longevity for consistent cutting performance.
• Lightweight Aluminum Construction: Reduces overall tool weight, minimizing effort and fatigue during extended use.
• Coated Non-Stick Blades: Facilitates smooth cutting and prevents sap buildup, making cleaning easier.
• ComfortGEL® Grips: Ergonomically designed to minimize hand fatigue and prevent blisters, enhancing user comfort.
• Solid One-Piece Handle and Hook Design: Constructed from full cast-aluminum for superior durability and balanced handling.
• Easy One-Handed Activation: Features a built-in lock that disengages easily with a gentle squeeze of the grips.

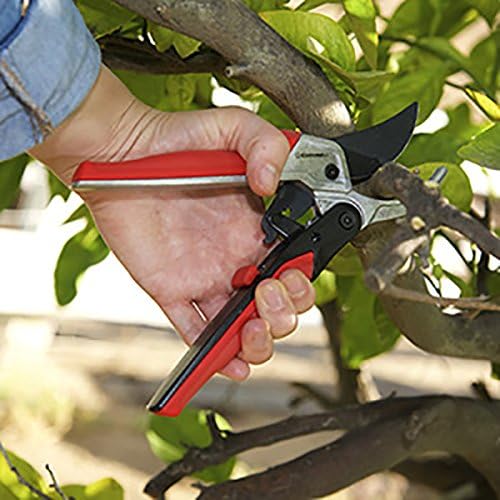

Image: The Corona RP 4224D RatchetCUT Pruner, showcasing its design and comfortable grips.

Image: Detailed view of the RatchetCUT 4-gear mechanism, which increases cutting power with each click.

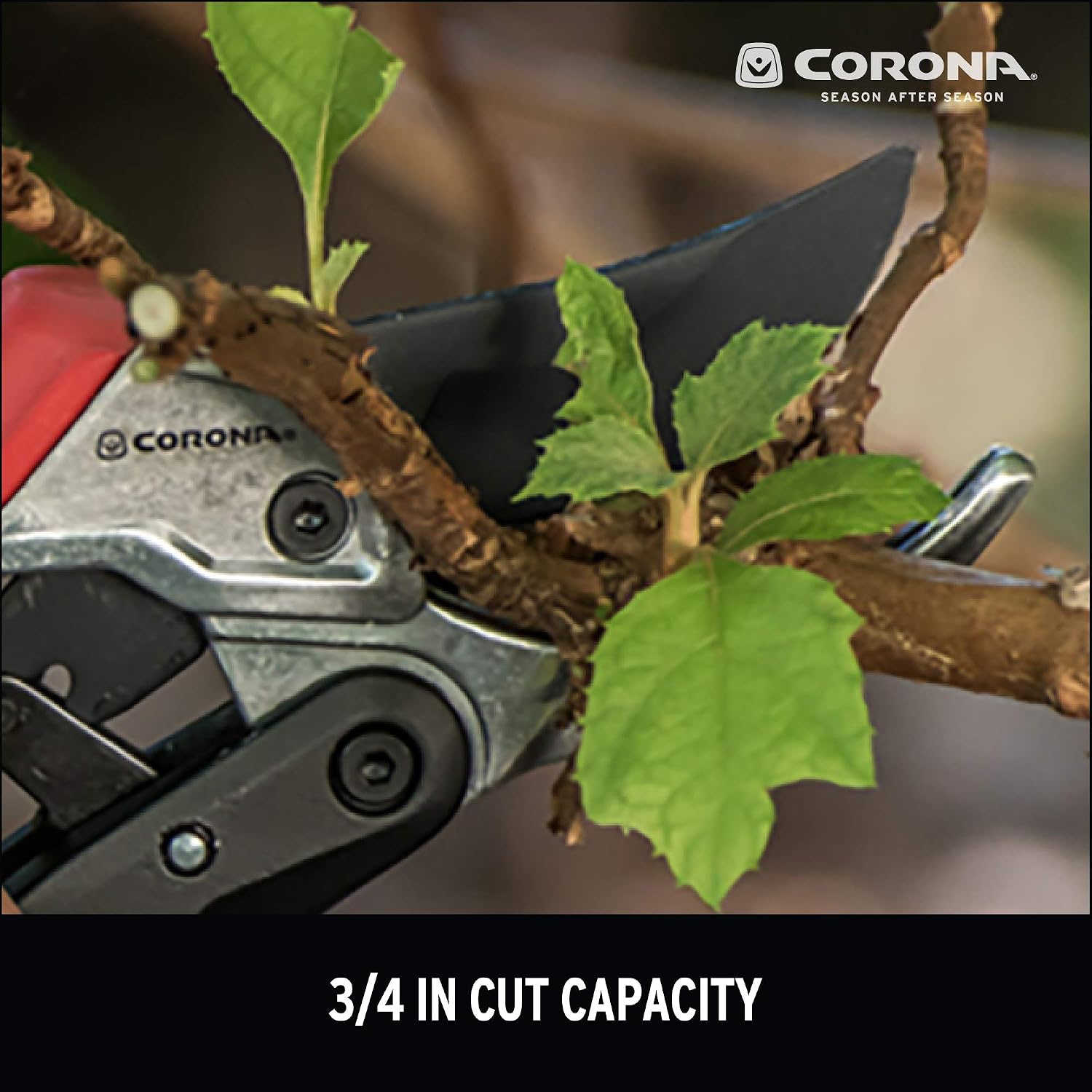

Image: Demonstration of the pruner's 3/4 inch cut capacity on a branch.

Image: The coated non-stick blade of the pruner, designed for enhanced cutting performance and reduced sap adhesion.

Image: The ergonomic ComfortGEL grips, designed to maximize comfort and control while minimizing hand fatigue.

Image: The pruner's lightweight aluminum and solid one-piece construction, contributing to its durability and balance.

3. Setup

The Corona RP 4224D RatchetCUT Pruner comes pre-assembled and ready for use. Before first use, and periodically thereafter, perform the following checks:

1. Inspect Blades: Ensure blades are clean, sharp, and free from damage.
2. Check Mechanism: Verify that the ratchet mechanism operates smoothly and the locking mechanism engages and disengages correctly.
3. Safety Lock: Familiarize yourself with the one-handed safety lock for secure storage and immediate use.

4. Operating Instructions

The RatchetCUT Pruner utilizes a multi-cut mechanism to reduce the effort required for pruning. Follow these steps for effective and safe operation:

1. Unlock the Pruner: Gently squeeze the handles together to disengage the one-handed safety lock. The blades will spring open.
2. Position for Cut: Place the branch or stem to be cut between the blades, ensuring it is within the ¾ inch cutting capacity. Position the pruner as close to the main stem or desired cut point as possible for a clean cut.
3. Initiate Cut: Squeeze the handles firmly. If the branch is thick, the ratchet mechanism will engage, and you will hear a click.
4. Complete Cut (Ratchet Action): Release the pressure slightly, allowing the handles to open slightly, then squeeze again. Each squeeze will advance the blade further through the branch with reduced effort. Repeat this action until the branch is fully severed.
5. Lock for Safety: After use, close the blades completely and engage the safety lock for secure storage.

5. Maintenance

Proper maintenance ensures the longevity and optimal performance of your pruner.

• Cleaning: After each use, clean the blades with a damp cloth to remove sap, dirt, and debris. For stubborn sap, use a specialized tool cleaner or rubbing alcohol.
• Lubrication: Periodically apply a light machine oil to the pivot points and blade surfaces to ensure smooth operation and prevent rust.
• Sharpening: Keep the blades sharp for clean cuts. Use a sharpening stone or file designed for pruning tools. Follow the original bevel of the blade.
• Storage: Store the pruner in a dry place with the blades locked to prevent accidental injury and protect the blades from moisture.

6. Troubleshooting

If you encounter issues with your Corona RP 4224D RatchetCUT Pruner, consider the following:

• Difficulty Cutting: Ensure blades are clean and sharp. Lubricate pivot points. Verify the branch size is within the ¾ inch capacity.
• Ratchet Mechanism Not Engaging: Check for any obstructions in the mechanism. Ensure the handles are fully opening and closing to allow the gears to reset.
• Blades Sticking: Clean blades thoroughly to remove sap buildup. Apply lubricant.
• Safety Lock Issues: Ensure no debris is preventing the lock from engaging or disengaging. If the lock feels loose or stripped, contact customer support.

7. Specifications

8. Warranty and Support

The Corona RP 4224D RatchetCUT Pruner is backed by a 10-Year Limited Warranty. For warranty claims, replacement parts, or further assistance, please refer to the official Corona website or contact their customer support directly. Keep your purchase receipt as proof of purchase.
