1. Product Overview

The Infratech SL Series Slimline Single Element Outdoor Heater (Model SL2424BL) is a sleek and streamlined heating solution designed for both indoor and outdoor surface mount applications. Its modern styling and narrow profile allow it to integrate discreetly into various decors. This electric infrared heater utilizes heated quartz elements to provide efficient and comfortable warmth.

Key features include:

• Slim Profile: Ideal for surface mount applications with low clearance requirements.
• Versatile Installation: Suitable for both indoor and outdoor environments, mountable on walls or ceilings.
• Modern Design: Features a brushed stainless steel trim with optional dark contrasting housing and a T-slot for flexible mounting.
• Durable Construction: Anodized aluminum housing and front face plate designed to withstand years of outdoor use.
• Efficient Heating: 90% energy efficient, providing warmth without noise, odor, or greenhouse gases.

Image 1.1: The Infratech SL2424BL Slimline Single Element Outdoor Heater, showcasing its sleek design.

2. Important Safety Information

READ ALL INSTRUCTIONS BEFORE USING THIS HEATER.

This Infratech heater is designed for maximum performance, long-term durability, and user safety. However, improper installation or use can lead to hazards.

• Professional Installation Required: Infratech Comfort heating products are NOT "plug-in" heaters. They must be installed and "hard-wired" by a licensed electrician. Installation must comply with local electrical codes and the specific power requirements of the product. A dedicated circuit and appropriate power at the point of installation are often required.
• Electrical Safety: Ensure all wiring is correctly sized and protected. Do not operate the heater with damaged wiring or if it has been dropped or damaged in any manner.
• Clearance: Maintain adequate clearance from combustible materials as specified in the installation instructions. The Slimline series has low clearance requirements, but these must still be observed.
• Placement: Do not install the heater in areas where gasoline, paint, or other flammable liquids or vapors are stored or present.
• Supervision: Close supervision is necessary when any appliance is used by or near children or individuals with reduced physical, sensory, or mental capabilities.
• Grounding: This heater must be grounded. Connect only to properly grounded outlets.

3. Setup and Installation

Proper installation is critical for the safe and efficient operation of your Infratech heater. Always consult a licensed electrician for installation.

3.1 Mounting Options

The Slimline heater can be mounted on a wall or ceiling. It features a T-slot design and two inset mounting brackets for a floating appearance.

Image 3.1: Close-up of the inset mounting brackets for the Slimline heater.

3.2 Recommended Mounting Height

For optimal performance and safety, the recommended mounting height for the SL2424BL model is 7 to 9 feet (2.1m - 2.7m) from the ground.

3.3 Electrical Connection

The heater requires a 240 Volt electrical supply, drawing 10 amps and providing 2400 Watts of power. Ensure your electrical system can support these requirements and that connections are made by a qualified professional.

Image 3.2: An Infratech Slimline heater installed on an outdoor wall.

4. Operating Instructions

Infratech heaters operate by emitting infrared heat, which directly warms solid objects and people rather than heating the air. This makes them highly effective in outdoor or breezy environments.

4.1 How Infrared Heating Works

Heated quartz elements produce a safe, clean wavelength of light. This light is absorbed by solid objects, transferring heat directly. This method ensures that heat is not lost to the surrounding air, providing efficient warmth.

Image 4.1: Close-up view of the quartz heating elements.

4.2 Turning the Heater On/Off

Your Infratech heater is hard-wired and typically controlled by a dedicated wall switch or a compatible control system (sold separately). Consult your electrician for details on your specific control setup.

The heater operates silently and produces no odors or greenhouse gases.

5. Maintenance

Infratech heaters are designed for very little maintenance. Regular cleaning can help maintain appearance and efficiency.

• Cleaning: Ensure the heater is turned off and completely cool before cleaning. Use a soft, damp cloth to wipe down the exterior. Do not use abrasive cleaners or solvents.
• Element Inspection: Periodically inspect the heating elements for any visible damage or debris. If damage is observed, discontinue use and contact a qualified technician.
• No User Serviceable Parts: There are no user-serviceable parts inside the heater. Any internal maintenance or repairs must be performed by a licensed electrician or authorized service personnel.

6. Troubleshooting

If your Infratech heater is not operating as expected, consider the following common issues:

• Heater Does Not Turn On:
  • Check the circuit breaker in your electrical panel.
  • Ensure the wall switch or control system is in the "ON" position.
  • Verify that the electrical supply to the heater is active.
• Insufficient Heat Output:
  • Confirm the heater is mounted within the recommended height range (7-9 feet).
  • Ensure there are no obstructions blocking the infrared heat path.
  • Consider environmental factors such as strong winds, which can affect perceived warmth.
• Unusual Noises or Odors:
  • Infratech heaters operate silently and without odor. If you experience either, immediately turn off the heater and contact a licensed electrician for inspection.

For any issues not resolved by these steps, contact a licensed electrician or Infratech customer support.

7. Specifications

8. Warranty and Support

Infratech offers a 3-year warranty on the SL Series Slimline Single Element Outdoor Heater. For detailed warranty terms and conditions, please refer to the official Infratech website or contact their customer service.

For technical support, service, or replacement parts, please visit the Infratech Store on Amazon or the manufacturer's official website.

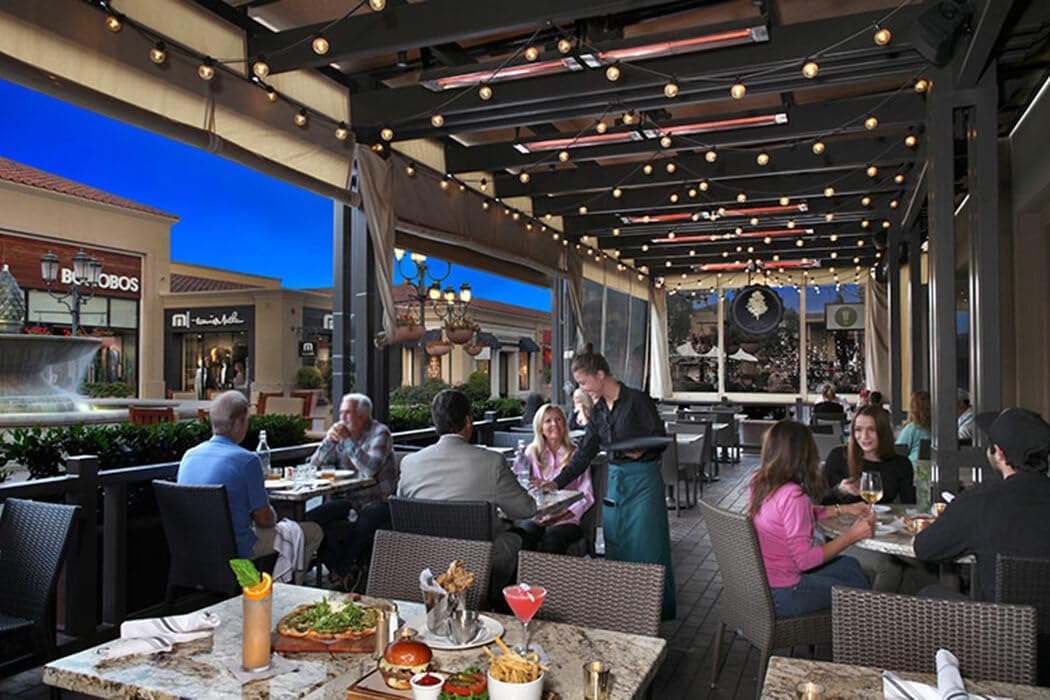

Image 8.1: Infratech heaters providing comfort in an outdoor dining setting.
