Imetec SuccoVivo SJ 1000 Cold Press Juicer Instruction Manual

1. Product Overview

The Imetec SuccoVivo SJ 1000 is a professional-grade cold press juicer designed for slow juicing, operating at 60 RPM. This low-speed extraction method helps to preserve up to 95% of the vitamins and nutrients in fruits and vegetables. It features a powerful induction motor and durable Ultem auger, making it suitable for a wide range of ingredients, including hard and fibrous produce. The appliance includes two filters for varying pulp levels and an accessory for making sorbets.

Figure 1.1: Imetec SuccoVivo SJ 1000 Cold Press Juicer extracting juice.

2. Important Safety Instructions

Please read all instructions carefully before using the appliance. Retain this manual for future reference.

• Ensure the appliance is unplugged before assembly, disassembly, or cleaning.
• Do not immerse the motor unit in water or any other liquid. Clean with a damp cloth only.
• Keep hands and utensils away from the feeding chute during operation to prevent injury. Always use the food pusher provided.
• Do not operate the juicer if any part is damaged or if the power cord is frayed. Contact customer support for repairs.
• This appliance is not intended for use by children. Close supervision is necessary when used near children.
• Do not process frozen fruits or vegetables unless using the dedicated sorbet accessory.
• Ensure all parts are correctly assembled before plugging in and operating the juicer.
• Avoid processing ingredients with hard seeds or pits (e.g., avocado pits, large fruit stones) as this can damage the auger and filters.
• Do not operate the appliance continuously for more than 20 minutes. Allow it to cool down before resuming use.

3. Components

The Imetec SuccoVivo SJ 1000 comes with several key components designed for efficient juicing and versatility. Familiarize yourself with each part before assembly.

Figure 3.1: Exploded view of the juicer components.

• Motor Unit: The base of the appliance containing the powerful induction motor.
• Feeding Chute with Pusher: The opening where ingredients are inserted, and the tool used to guide them down.


  Figure 3.2: Feeding Chute.

• Auger (Squeezing Screw): The ultra-resistant Ultem screw that slowly presses ingredients.


  Figure 3.3: Auger.

• Juicing Bowl: The main chamber where juice extraction occurs.
• Filters:
  • Fine Filter: For clear, pulp-free juices.


    Figure 3.4: Fine Filter.

  • Coarse Filter: For juices with more fiber and thicker consistency.


    Figure 3.5: Coarse Filter.

• Sorbet Accessory: A solid filter for making frozen fruit sorbets.


  Figure 3.6: Sorbet Accessory.

• Juice and Pulp Containers: Two containers to collect the extracted juice and the dry pulp.


  Figure 3.7: Juice and Pulp Containers.

• Cleaning Brush: For easy cleaning of the filters and other parts.
• Recipe Book: Contains various recipes for juices, sorbets, and more.


  Figure 3.8: Recipe Book.

4. Assembly

Before first use, wash all detachable parts (except the motor unit) with warm soapy water, rinse thoroughly, and dry. Assemble the juicer by following these steps:

1. Place the juicing bowl onto the motor unit, ensuring it is securely seated.
2. Insert your chosen filter (fine, coarse, or sorbet accessory) into the juicing bowl. Ensure it aligns correctly.
3. Place the auger into the center of the filter, twisting slightly until it drops into place.
4. Attach the feeding chute assembly onto the juicing bowl, aligning the marks and rotating until it locks securely.
5. Position the juice and pulp containers under their respective spouts.
6. Ensure the juice spout cap is closed before starting the juicing process.

Figure 4.1: Assembled juicer with accessories.

5. Operating Instructions

5.1. Ingredient Preparation

• Wash all fruits and vegetables thoroughly.
• Peel citrus fruits, pineapples, and other fruits with thick or inedible skins.
• Remove large seeds, pits, and hard cores (e.g., apple cores, peach pits).
• Cut ingredients into pieces small enough to fit into the feeding chute. For fibrous vegetables like celery or ginger, cut them into short pieces (1-2 cm) to prevent clogging.
• For sorbets, ensure fruits are frozen solid.

5.2. Juicing Process

1. Ensure the juicer is correctly assembled and the juice spout cap is closed.
2. Plug the appliance into a power outlet.
3. Turn on the juicer using the power switch.
4. Gradually feed prepared ingredients into the feeding chute. Use the pusher gently to guide ingredients down. Do not force ingredients.
5. The juicer will extract juice into the juice container and separate pulp into the pulp container.
6. Once juicing is complete, turn off the appliance and unplug it.
7. Open the juice spout cap to dispense the juice.

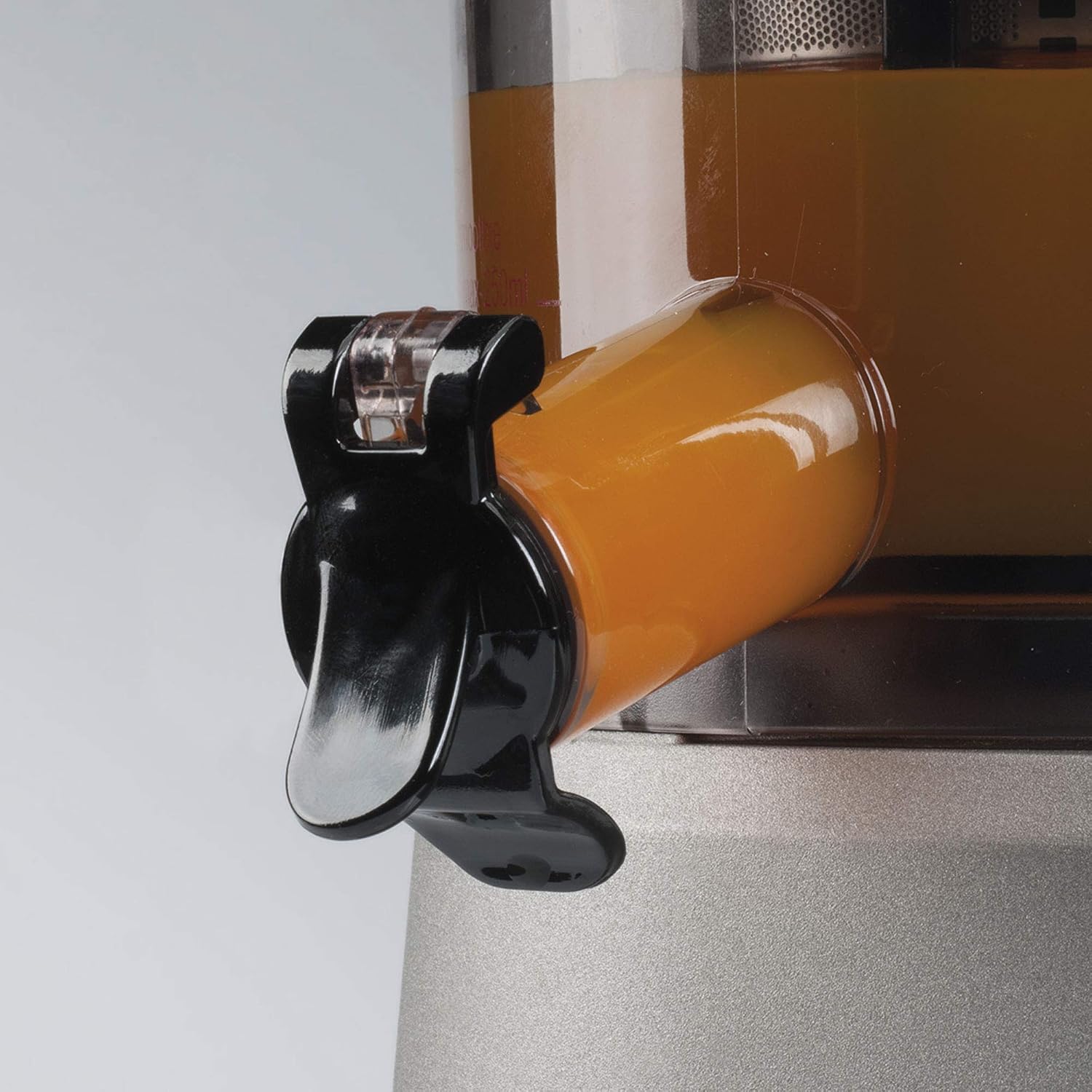

   Figure 5.1: Juice spout.

Note: The included recipe book provides guidance on ingredient combinations and filter usage for various preparations, including juices, vegetable milks, sorbets, and sauces.

Figure 5.2: Example of extracted juice.

Figure 5.3: Example of sauce preparation.

Figure 5.4: Example of sorbet preparation.

6. Maintenance and Cleaning

Regular cleaning ensures optimal performance and longevity of your juicer. Always unplug the appliance before cleaning.

1. Disassembly: Reverse the assembly steps to carefully take apart the juicing bowl, filter, auger, and feeding chute.
2. Pre-cleaning: Immediately after use, pour a glass of water into the feeding chute while the juicer is running for a few seconds. This helps flush out residual pulp.
3. Washing Parts: Wash all detachable parts (juicing bowl, filter, auger, feeding chute, containers, pusher) under warm running water with a mild dish soap. Use the provided cleaning brush to thoroughly clean the filter meshes, as pulp can easily get trapped.
4. Motor Unit: Wipe the motor unit with a damp cloth. Never immerse it in water.
5. Drying and Storage: Ensure all parts are completely dry before reassembling or storing the juicer. Store in a clean, dry place.

Important: The detachable parts are not dishwasher safe. Hand washing is required to prevent damage.

7. Troubleshooting

If you encounter issues with your Imetec SuccoVivo SJ 1000, refer to the following common problems and solutions:

8. Technical Specifications

• Model Name: SuccoVivo SJ 1000
• Model Number: 7864
• Brand: Imetec
• Power: 240 Watts
• Voltage: 240V
• Speed: 1 (60 RPM slow juicing)
• Material: Stainless Steel (blade), Ultem (auger)
• Color: Grey/Black
• Item Weight: 7.37 Kilograms
• Capacity: 800 ml (juice container)
• Care Instructions: Hand wash only (detachable parts)
• Special Feature: Powerful and quiet motor

Figure 8.1: Product dimensions.

9. Warranty and Customer Support

The Imetec SuccoVivo SJ 1000 comes with a 2-year product warranty from the date of purchase. This warranty covers manufacturing defects under normal use conditions.

For warranty claims, technical assistance, or any questions regarding your product, please contact Imetec customer support. Refer to the contact information provided in your purchase documentation or visit the official Imetec website for support details.

Please have your model number (SJ 1000 / 7864) and proof of purchase ready when contacting support.
