Introduction
This manual provides essential information for the safe and efficient operation of your new Whirlpool 190 L 5 Star Direct-Cool Single Door Refrigerator, model 205 Icemagic PRM 5S. Please read these instructions thoroughly before installation and use, and retain them for future reference.

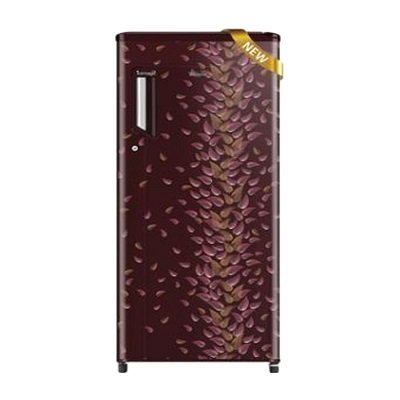

Image: Front view of the Whirlpool 190 L Direct-Cool Single Door Refrigerator in Wine Fiesta finish. This model features a modern design with a patterned door.
Important Safety Instructions
To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:
- Ensure the refrigerator is properly grounded.
- Do not operate with a damaged power cord or plug.
- Keep ventilation openings clear of obstruction.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Unplug the refrigerator before cleaning or performing maintenance.
Setup and Installation
Unpacking
Carefully remove all packaging materials. Inspect the refrigerator for any damage. Retain packaging for transport if needed.
Location
Place the refrigerator on a firm, level surface away from direct sunlight and heat sources. Ensure adequate air circulation around the unit. Maintain a minimum clearance of 10 cm (4 inches) from the back and sides for proper ventilation.
Electrical Connection
Connect the refrigerator to a dedicated, grounded electrical outlet. The voltage requirement is 300 Volts. Avoid using extension cords or adapters.
Initial Operation
After positioning, wait at least 2-4 hours before plugging in the refrigerator to allow refrigerants to settle. Once plugged in, allow the refrigerator to run for several hours empty to reach optimal cooling temperatures before storing food.
Operating Instructions
Temperature Control
The refrigerator features a manual temperature control dial, typically located inside the fresh food compartment. Adjust the dial to a setting that maintains desired cooling. Higher numbers usually indicate colder temperatures.
Storage Recommendations
- Toughened Glass Shelves: Designed to withstand heavy items up to 90 kg. Arrange items to allow air circulation.
- Honey Comb Moisture Lock Crisper: Use for vegetables and fruits to retain freshness and humidity.
- Dry Storage: An additional 10-liter space at the bottom for non-refrigerated items like onions and potatoes.
- Bottle Storage: The door shelves are designed for efficient bottle chilling.

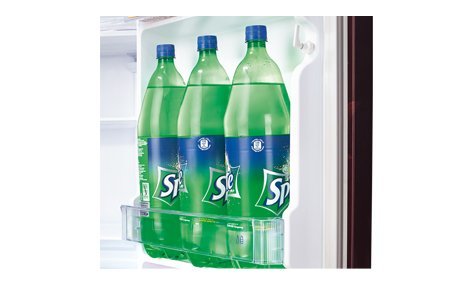

Image: Interior view of the refrigerator door showing multiple large bottles stored securely in the door shelves, demonstrating efficient use of space for beverages.

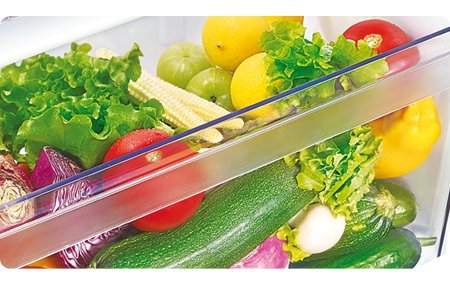

Image: Close-up view of the Honey Comb Moisture Lock Crisper filled with various fresh vegetables like lettuce, zucchini, and bell peppers, highlighting its capacity and design for preserving produce.
Special Features
- Sixth Sense Power Cool Technology: Ensures rapid cooling and maintains optimal temperatures.
- 12 Hours Cooling Retention: Insulated capillary technology helps retain cooling for up to 12 hours during power cuts.
- Door Ajar Alarm: An audible alarm will sound if the refrigerator door is left open for an extended period.
- Stabilizer Free Operation: Designed to operate reliably without an external voltage stabilizer.
Care and Maintenance
Cleaning
Always unplug the refrigerator before cleaning. Use a soft cloth with a mild detergent and warm water to clean interior and exterior surfaces. Avoid abrasive cleaners or solvents. The removable anti-bacterial gasket should be cleaned regularly to prevent mold growth.
Defrosting
This is a direct-cool refrigerator, which means manual defrosting is required when frost buildup in the freezer compartment reaches approximately 0.5 cm (1/4 inch) thickness. Turn off the refrigerator, remove all food, and allow the frost to melt naturally. Do not use sharp objects to remove ice.
Door Lock
The refrigerator is equipped with a door lock for security. Use the provided key to lock and unlock the door as needed.

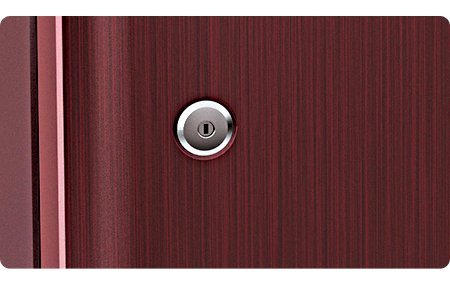

Image: Close-up of the integrated door lock on the refrigerator, showing the keyhole. This feature provides security for stored contents.
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator does not operate. | No power supply; power cord unplugged; fuse blown or circuit breaker tripped. | Check power connection; ensure plug is fully inserted; check household fuse/breaker. |
| Temperature is not cold enough. | Temperature control set too warm; door opened too frequently; large amount of warm food added; poor ventilation. | Adjust temperature control to a colder setting; minimize door openings; allow warm food to cool before storing; ensure adequate clearance around the unit. |
| Excessive frost buildup. | Door not sealed properly; frequent door openings; high humidity. | Check door gasket for proper seal; reduce frequency of door openings; perform manual defrost. |
| Unusual noises. | Refrigerator not level; items vibrating inside; normal operating sounds (compressor, refrigerant flow). | Ensure refrigerator is level; reposition items inside; normal sounds are expected. |
If the problem persists after attempting these solutions, please contact customer support.
Product Specifications
| Brand | Whirlpool |
| Model | 205 Icemagic PRM 5S |
| Capacity | 190 Litres |
| Energy Efficiency Rating | 5 Star |
| Defrost System | Direct Cool |
| Form Factor | Standard Single Door |
| Shelf Type | Toughened Glass (2 shelves) |
| Special Features | Door Ajar Alarm, Stabilizer Free Operation, Honey Comb Moisture Lock Crisper, Sixth Sense Power Cool Technology, 12 Hours Cooling Retention |
| Dimensions (LxWxH) | 61.9 x 53.6 x 119.1 Centimeters |
| Item Weight | 35 kg |
| Voltage | 300 Volts |
| Material | Stainless Steel |
| Color | Wine Fiesta |
Warranty and Support
Warranty Information
Your Whirlpool refrigerator comes with the following warranty:
- 1 Year Comprehensive Warranty on the entire refrigerator.
- 5 Years Warranty on the compressor.
Please retain your purchase receipt and warranty card for any warranty claims. The warranty covers manufacturing defects under normal use conditions.
Customer Support
For service, technical assistance, or to inquire about parts, please contact Whirlpool customer support. Refer to the contact information provided in your warranty card or visit the official Whirlpool website.
