Princess 202045 Easy Fill Slowjuicer Instruction Manual

1. Introduction

Thank you for choosing the Princess 202045 Easy Fill Slowjuicer. This appliance is designed to efficiently extract juice from a wide variety of fruits and vegetables, promoting a healthy lifestyle. Its slow masticating technology helps preserve nutrients, vitamins, and flavor. Please read this manual carefully before first use to ensure safe operation, optimal performance, and proper maintenance.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before operating the appliance.
• Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
• Do not immerse the motor base in water or any other liquid. Clean only with a damp cloth.
• Always unplug the appliance from the power outlet before assembling, disassembling, or cleaning.
• Keep hands and utensils away from the feed chute during operation to prevent injury. Use the food pusher provided.
• Do not operate the appliance if the power cord or plug is damaged, or if the appliance malfunctions or has been damaged in any way.
• This appliance is for household use only. Do not use outdoors.
• Do not allow the cord to hang over the edge of a table or counter, or touch hot surfaces.
• Ensure all parts are correctly assembled before operating the juicer.
• Do not process frozen fruits or vegetables, or ingredients with hard seeds/pits (e.g., peaches, avocados) without removing them first, as this can damage the auger and filter.

3. Product Components

Familiarize yourself with the parts of your slow juicer:

1. Motor Base
2. Juicing Bowl
3. Auger (Masticating Screw)
4. Fine Sieve/Filter
5. Lid with Feed Chute
6. Food Pusher
7. Juice Container (900 ml)
8. Pulp Container (900 ml)
9. Cleaning Brush

All removable parts of the slow juicer are designed for easy disassembly and are dishwasher-safe, simplifying the cleaning process.

4. Setup and Assembly

Follow these steps to assemble your slow juicer before use:

1. Place the motor base on a stable, flat, and dry surface.
2. Align the juicing bowl with the motor base and rotate it clockwise until it locks into place.
3. Insert the fine sieve/filter into the juicing bowl, ensuring it sits securely.
4. Place the auger into the center of the sieve, pushing it down firmly.
5. Attach the lid with the feed chute onto the juicing bowl, aligning the arrows and rotating clockwise until it locks. Ensure it is fully secured for the juicer to operate.
6. Position the juice container under the juice spout and the pulp container under the pulp spout.

The wide feed chute allows for whole or large pieces of produce, reducing pre-cutting time.

5. Operating Instructions

Using your Princess Slowjuicer is straightforward:

1. Prepare your ingredients: Wash fruits and vegetables thoroughly. For most items, pre-cutting is not necessary due to the extra-large feed chute. Remove any hard seeds, pits, or thick peels (e.g., citrus).
2. Plug the appliance into a suitable power outlet.
3. Turn on the juicer using the power switch.
4. Gradually feed ingredients into the feed chute. Use the food pusher only if necessary to guide ingredients down, never force them.
5. The juicer will slowly extract juice, which flows into the juice container, while the pulp is expelled into the pulp container.
6. Once juicing is complete, turn off the appliance and unplug it from the power outlet.

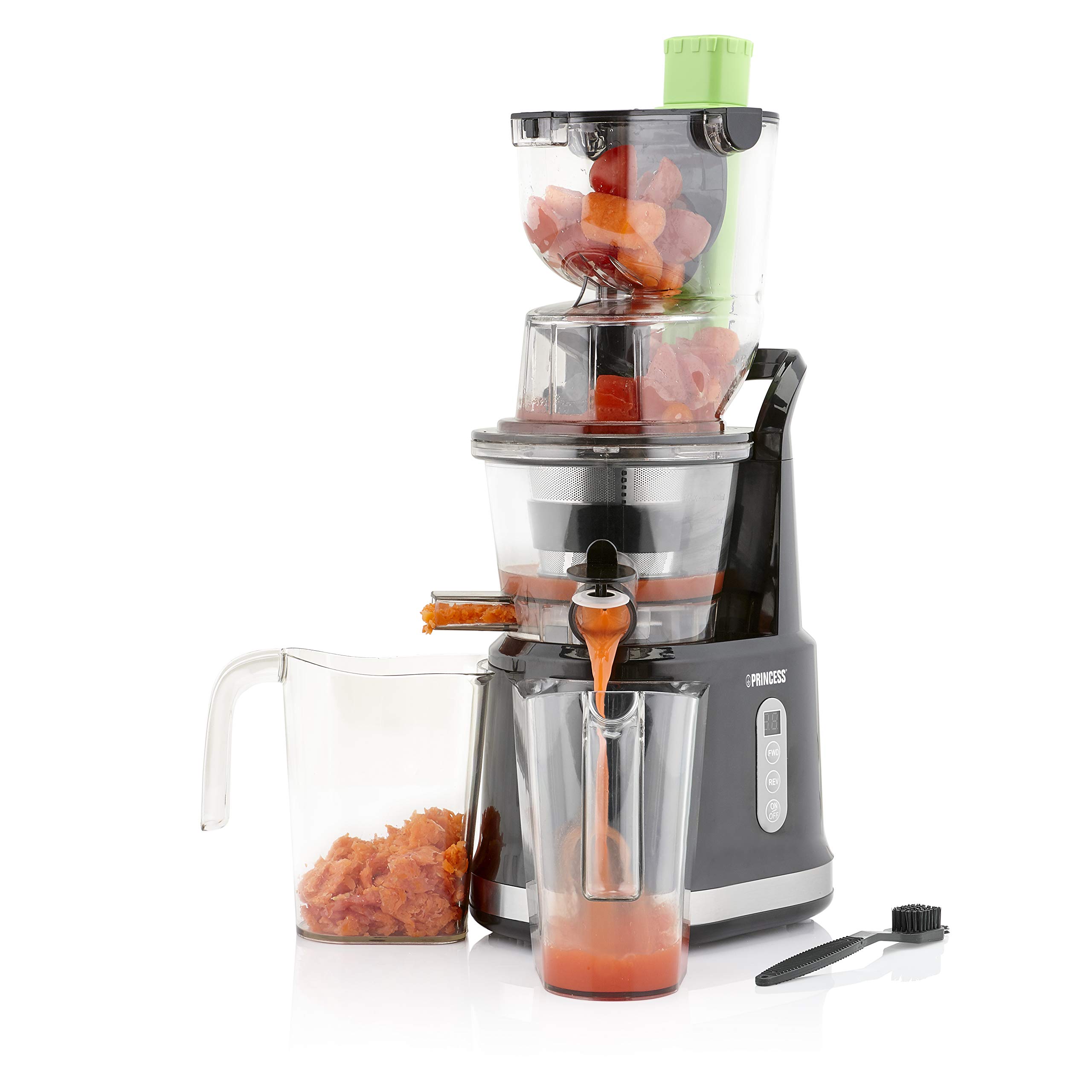

The extra-large 83mm opening accommodates whole fruits like apples, eliminating the need for extensive pre-chopping.

This image shows the slow juicer in operation, producing fresh juice while separating pulp, preserving nutrients and vitamins.

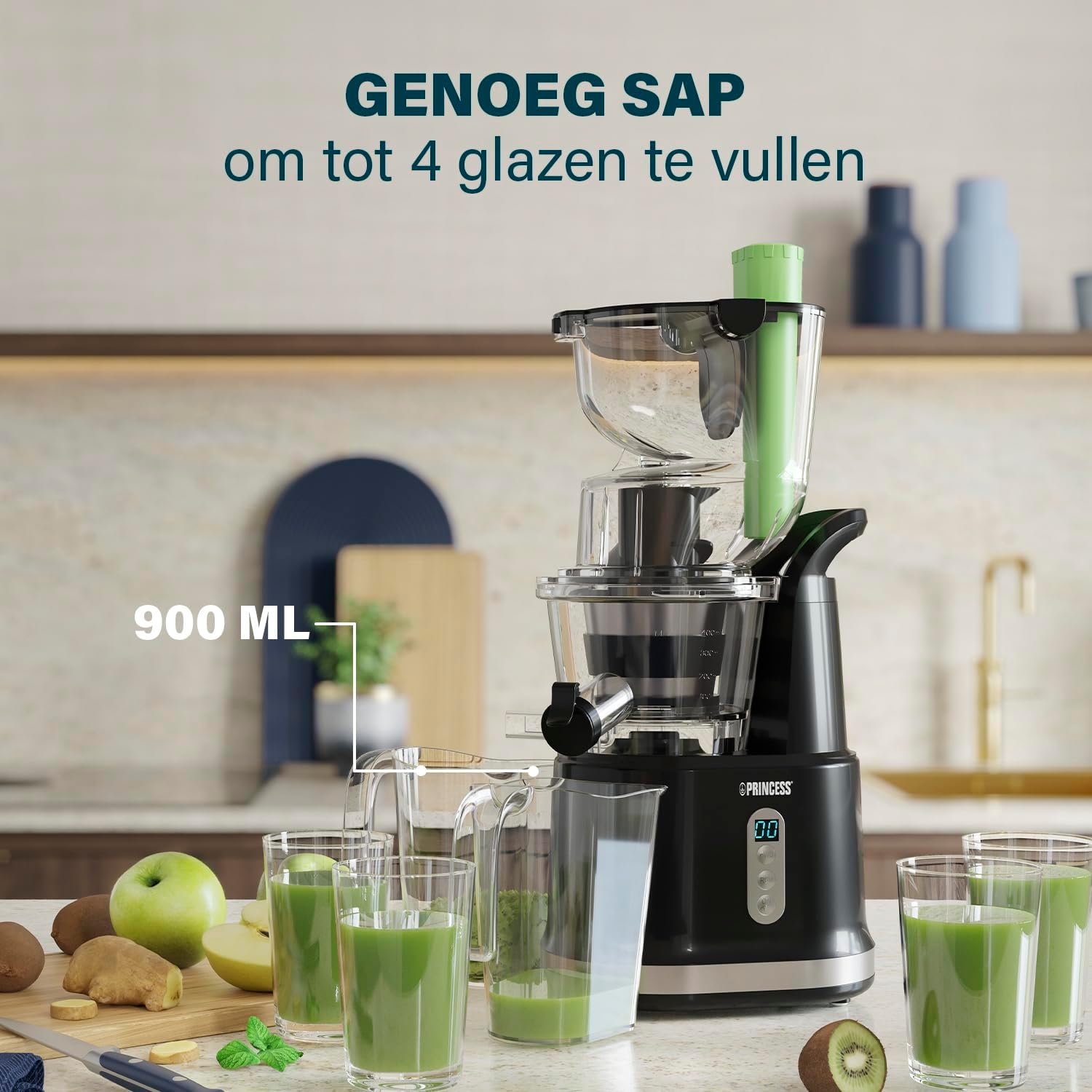

The large 900ml juice container allows for preparing up to 4 glasses of fresh juice at once.

6. Maintenance and Cleaning

Regular cleaning ensures the longevity and hygiene of your slow juicer:

1. Immediate Cleaning: After each use, turn off and unplug the juicer. Disassemble all removable parts.
2. Rinsing: Rinse all removable parts under running water to remove most pulp and juice residue.
3. Washing: All removable parts (juicing bowl, auger, sieve, lid, containers) are dishwasher-safe. Alternatively, wash them by hand using warm, soapy water and the provided cleaning brush, especially for the sieve to remove fine pulp.
4. Motor Base: Wipe the motor base with a damp cloth. Never immerse it in water.
5. Drying and Storage: Ensure all parts are completely dry before reassembling or storing the juicer. Store in a clean, dry place.

The integrated drip stop prevents sticky residue on your countertop, ensuring a clean juicing experience.

7. Troubleshooting

If you encounter issues with your slow juicer, refer to the following common problems and solutions:

• Appliance does not turn on:
  • Check if the power cord is securely plugged into a working outlet.
  • Ensure all parts (juicing bowl, lid) are correctly assembled and locked into place. The juicer has a safety mechanism that prevents operation if not properly assembled.
• Juicer stops during operation or gets clogged:
  • This can happen if too much produce is fed at once or if ingredients are too fibrous. Turn off the juicer, unplug it, and disassemble to clear any blockages.
  • Ensure ingredients are prepared correctly (e.g., remove hard pits).
• Low juice yield or wet pulp:
  • Ensure the sieve is clean and not clogged.
  • Some very soft fruits may naturally produce wetter pulp.
• Loud noise or vibration:
  • Check if the juicer is placed on a stable, flat surface.
  • Ensure all parts are correctly assembled and securely locked.

If the problem persists after trying these solutions, please contact customer support.

8. Specifications

9. Warranty and Support

For warranty information, please refer to the documentation included with your purchase or visit the official Princess website. If you require technical support or have questions not covered in this manual, please contact Princess customer service through their official channels.
