1. Introduction
Thank you for choosing the Armitron Men's 20/5182BKSV Analog-Digital Silver-Tone Bracelet Watch. This timepiece combines classic analog hands with a modern digital display, offering both style and functionality. This manual provides detailed instructions to help you set up, operate, and maintain your watch for optimal performance.
Image 1.1: Front view of the Armitron 20/5182BKSV watch, showcasing its black metallic bezel, textured black dial, silver-tone luminous hands, and dual analog-digital display.
2. Key Features
- Dual Display: Analog and digital time display for versatile timekeeping.
- Durable Construction: Black metallic bezel with graphics, mineral crystal lens, and silver-tone adjustable link bracelet.
- Luminous Elements: Silver-tone luminous hands and markers for visibility in low light.
- Japanese-Quartz Movement: Ensures accurate timekeeping for both analog and digital functions.
- Water Resistance: Water resistant to 50 meters (165 feet), suitable for short periods of recreational swimming.
- Secure Clasp: Fold-over push-button clasp with safety for secure wear.
3. Setup and Initial Configuration
3.1. Battery
Your Armitron watch comes with a pre-installed LR44 battery. The watch should be operational upon receipt. If the digital display is blank or the analog hands are not moving, the battery may need replacement. It is recommended to have battery replacement performed by a qualified watch technician.
3.2. Setting Analog Time
- Pull the crown (the knob on the right side of the watch case) out to the first position.
- Rotate the crown to adjust the hour and minute hands to the desired time.
- Once the time is set, push the crown back into its normal operating position.
3.3. Setting Digital Time and Date
The digital display typically features multiple buttons for various functions. While specific button labels may vary, common functions include MODE, START, RESET, and LIGHT.
- Press the MODE button repeatedly until the time setting mode is activated (often indicated by flashing digits).
- Use the START or RESET button to adjust the flashing digits (hours, minutes, seconds, month, day, year).
- Press the MODE button again to cycle through the settings (e.g., from hours to minutes, then to date).
- Once all settings are correct, press the MODE button one last time to exit the setting mode.
3.4. Bracelet Adjustment
The silver-tone link bracelet is adjustable. If the watch does not fit comfortably, links can be added or removed. It is highly recommended to have bracelet adjustments performed by a professional jeweler or watch technician to prevent damage to the watch or bracelet.

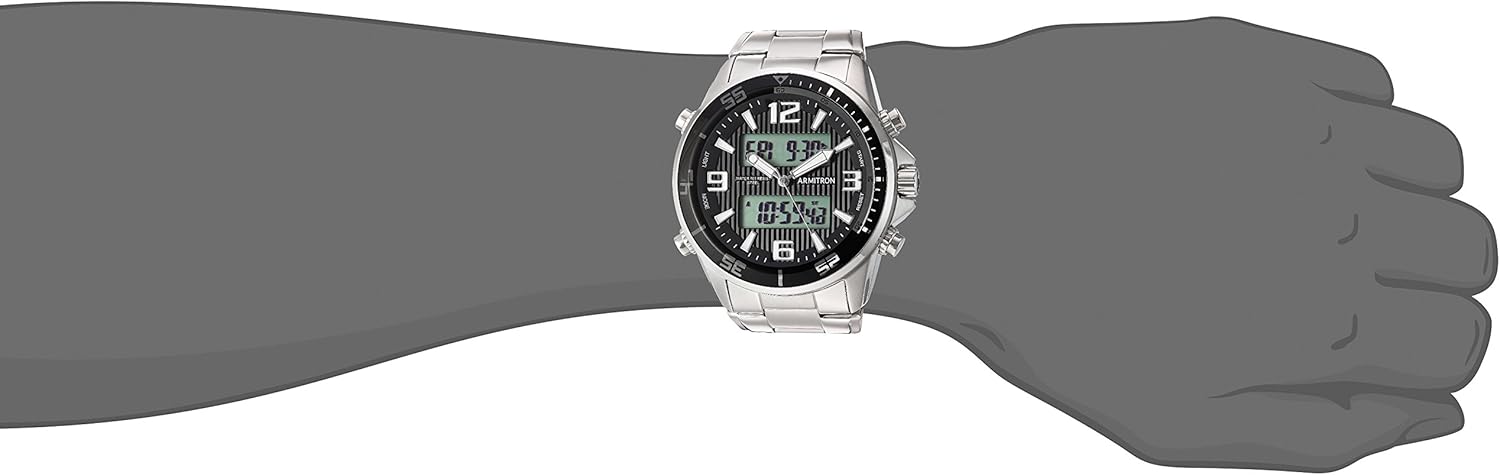

Image 3.1: The Armitron 20/5182BKSV watch displayed on a wrist, illustrating its size and fit.
4. Operating Instructions
4.1. Reading Time
- Analog Display: The traditional hour, minute, and second hands indicate the current time.
- Digital Display: Shows time in a 12-hour or 24-hour format, along with the day and date.
4.2. Digital Display Modes
Press the MODE button to cycle through the various digital functions:
- Time Display: Shows current time (hours, minutes, seconds) and day of the week.
- Date Display: Shows month, day, and year.
- Alarm Function: Allows you to set a daily alarm.
- Stopwatch: Measures elapsed time with start, stop, and reset functions.
- Backlight: Press the LIGHT button (usually on the upper left side) to illuminate the digital display for a few seconds in dark conditions.
4.3. Water Resistance
This watch is water resistant to 50 meters (165 feet). This rating means the watch is suitable for short periods of recreational swimming, showering, or washing hands. It is not suitable for diving, snorkeling, or prolonged water immersion. Do not operate any buttons while the watch is wet or submerged to prevent water intrusion.
5. Maintenance and Care
5.1. Cleaning Your Watch
To maintain the appearance of your watch, wipe the case and bracelet regularly with a soft, dry cloth. For stainless steel components, a slightly damp cloth can be used, followed by drying with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
5.2. Battery Replacement
When the battery needs replacement, it is recommended to take your watch to an authorized Armitron service center or a reputable watch repair shop. This ensures the correct battery type is used and the water resistance seal is properly maintained.
5.3. Storage
When not wearing your watch, store it in a cool, dry place away from direct sunlight, extreme temperatures, and strong magnetic fields. The original watch box can be used for safe storage.
Image 5.1: The Armitron watch box, suitable for safe storage of your timepiece.
6. Troubleshooting
- Analog Hands Not Moving: Check if the crown is pushed in completely. If it is, the battery may need replacement.
- Digital Display Blank or Faint: The battery may be low or depleted. Seek professional battery replacement.
- Incorrect Time/Date: Refer to Section 3.2 and 3.3 to reset the analog and digital time/date.
- Condensation Inside Watch: This indicates a breach in the water resistance. Immediately take the watch to a professional for inspection and repair to prevent further damage.
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | 20/5182BKSV |
| Movement | Japanese-Quartz |
| Case Diameter | 49mm |
| Water Resistance | 50 meters (165 feet) |
| Case Material | Stainless Steel |
| Bracelet Material | Stainless Steel |
| Battery Type | 1 x LR44 (included) |
Image 7.1: A visual guide illustrating various watch case diameters for size comparison, including the 49mm size of this model.
8. Warranty and Support
Armitron watches are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Armitron website. For technical support, service, or inquiries, please contact Armitron customer service through their official channels.
Keep your proof of purchase for any warranty claims.
