1. Introduction
Thank you for purchasing the IRIS OHYAMA IH Rice Cooker, Model RC-IA30-B. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new appliance. Please read this manual thoroughly before use and keep it for future reference.
2. Safety Precautions
To ensure safe operation and prevent damage to the appliance or injury to yourself and others, always observe the following safety precautions:
- Always connect the rice cooker to a grounded power outlet of the correct voltage (100 Volts).
- Do not immerse the main unit, power cord, or plug in water or any other liquid.
- Ensure the inner pot is properly seated before starting the cooking process.
- Keep hands and face away from the steam vent during operation to avoid burns.
- Unplug the appliance from the power outlet when not in use and before cleaning.
- This appliance is designed for household use only. Do not use outdoors.
- Do not operate the appliance if the power cord or plug is damaged, or if the appliance malfunctions or has been damaged in any way.
- The inner pot and lid are designed for hand washing only. Do not wash in a dishwasher.
3. Product Overview
The IRIS OHYAMA IH Rice Cooker RC-IA30-B is an advanced appliance designed for efficient rice cooking. It features Induction Heating (IH) technology for even cooking and a unique design that allows the lower part to be used as a separate IH cooking machine.
Image: The IRIS OHYAMA IH Rice Cooker RC-IA30-B, a compact and versatile appliance.
Key Features:
- Induction Heating (IH): Provides precise and even heat distribution for perfectly cooked rice.
- Detachable Inner Pot: The rice cooker separates, allowing the lower unit to function as a standalone IH cooking machine.
- Weighed Cooking Function: Automatically measures the optimal water amount for rice in 5cc increments.
- 31 Brand Rice Cooking Modes: Optimized settings for various rice brands to enhance flavor.
- Thick Copper Pot: Features a 3-layer coating and approximately 3.1mm thickness for superior heat retention.
4. Initial Setup
Before using your rice cooker for the first time, follow these steps:
- Unpack: Carefully remove all packaging materials and accessories from the box.
- Clean: Wash the inner pot, inner lid, and any accessories (e.g., measuring cup, rice paddle) with warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a damp cloth.
- Placement: Place the rice cooker on a stable, flat, heat-resistant surface, away from direct sunlight and heat sources. Ensure adequate ventilation around the unit.
- Assembly: Ensure the inner pot is correctly placed inside the main unit and the lid is securely closed.
Image: The rice cooker demonstrating its detachable design, where the upper rice cooking unit can be separated from the lower IH cooking base.
5. Operating Instructions
5.1. Basic Rice Cooking
- Measure Rice: Use the provided measuring cup to measure the desired amount of rice.
- Wash Rice: Rinse the rice thoroughly until the water runs clear.
- Place Rice in Pot: Transfer the washed rice into the inner pot.
- Add Water: Place the inner pot with rice onto the lower IH unit. The rice cooker features a weighed cooking function that will display the optimal water amount needed in 5cc increments. Add water according to the display.
Image: Close-up of the rice cooker's display indicating the precise water volume (in cc) required for the measured rice, utilizing its integrated weight sensors.
- Select Rice Type (Optional): If desired, select one of the 31 brand-specific rice cooking modes for optimized results.
Image: The control panel showing options for selecting specific rice brands (e.g., Koshihikari, Akita Komachi) to tailor the cooking process.
- Start Cooking: Close the lid securely and press the 'Start' button. The cooking process typically involves soaking, heating, and steaming phases.
Image: A diagram illustrating the rice cooking stages: soaking, initial heating, secondary heating to remove moisture, and final steaming to enhance aroma and texture.
- Keep Warm: Once cooking is complete, the cooker will automatically switch to 'Keep Warm' mode.
- Serve: Open the lid, fluff the rice with the rice paddle, and serve.
5.2. Using the IH Cooking Machine Function
The lower part of your rice cooker can be separated and used as a standalone Induction Heating (IH) cooking machine. This is ideal for various cooking tasks that require precise heat control.
- Separate Units: Carefully detach the upper rice cooking unit from the lower IH cooking base.
- Place Cookware: Place appropriate IH-compatible cookware (e.g., a pot or pan) onto the IH cooking surface.
- Power On: Connect the IH cooking machine to a power outlet.
- Select Settings: Use the control panel to select the desired power level or cooking mode.
- Cook: Begin cooking your food.
- Power Off: After use, turn off the unit and unplug it from the power outlet.
6. Maintenance and Cleaning
Regular cleaning and maintenance will prolong the life of your IRIS OHYAMA IH Rice Cooker.
- Always unplug the appliance before cleaning.
- Inner Pot and Inner Lid: These components should be hand washed only with warm, soapy water. Do not use abrasive cleaners or scrubbers that could damage the non-stick coating. Rinse thoroughly and dry completely.
- Exterior: Wipe the exterior of the main unit and the IH cooking base with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaning agents.
- Steam Vent: Ensure the steam vent is clear of any food debris.
- Storage: Store the rice cooker in a dry place when not in use.
7. Troubleshooting Guide
If you encounter any issues with your rice cooker, please refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Rice is too hard/undercooked | Insufficient water; incorrect rice setting; power interruption. | Ensure correct water-to-rice ratio using the weighed cooking function. Select appropriate rice type. Do not open lid during cooking. |
| Rice is too soft/mushy | Too much water; incorrect rice setting. | Reduce water slightly next time. Ensure correct rice type setting. |
| Cooker does not turn on | Not plugged in; power outage; faulty outlet. | Check power cord connection. Test outlet with another appliance. |
| Steam leaking from lid | Lid not properly closed; seal damaged; steam vent blocked. | Ensure lid is securely closed. Check and clean the lid seal and steam vent. |
If the problem persists after attempting these solutions, please contact customer support.
8. Technical Specifications
| Specification | Detail |
|---|---|
| Brand | IRIS |
| Model Name | RC-IA30-B |
| Capacity | 0.54 Liters (3 Go) |
| Color | Black |
| Material | Stainless Steel |
| Special Feature | Induction Heating, Detachable Inner Pot |
| Item Weight | 4.2 Kilograms |
| Wattage | 1000 watts |
| Voltage | 100 Volts |
| Product Care Instructions | Hand Wash |
| Manufacturer | Iris (IRIS OHYAMA) |

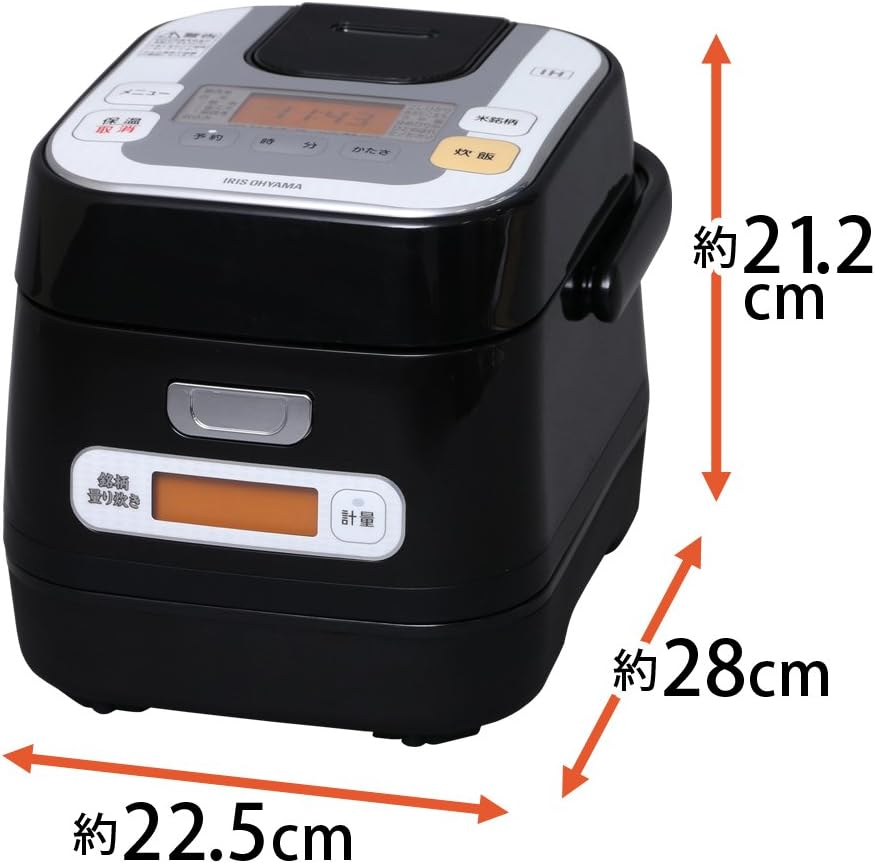

Image: Diagram showing the approximate dimensions of the IRIS OHYAMA IH Rice Cooker: 22.5 cm (width) x 28 cm (depth) x 21.2 cm (height).
9. Warranty and Support
9.1. Warranty Information
Please refer to the warranty card included with your product for detailed warranty terms and conditions. Keep your proof of purchase for any warranty claims.
9.2. Customer Support
For technical assistance, replacement parts, or any other inquiries, please contact IRIS OHYAMA customer support. Contact information can typically be found on the manufacturer's official website or on the product packaging.
