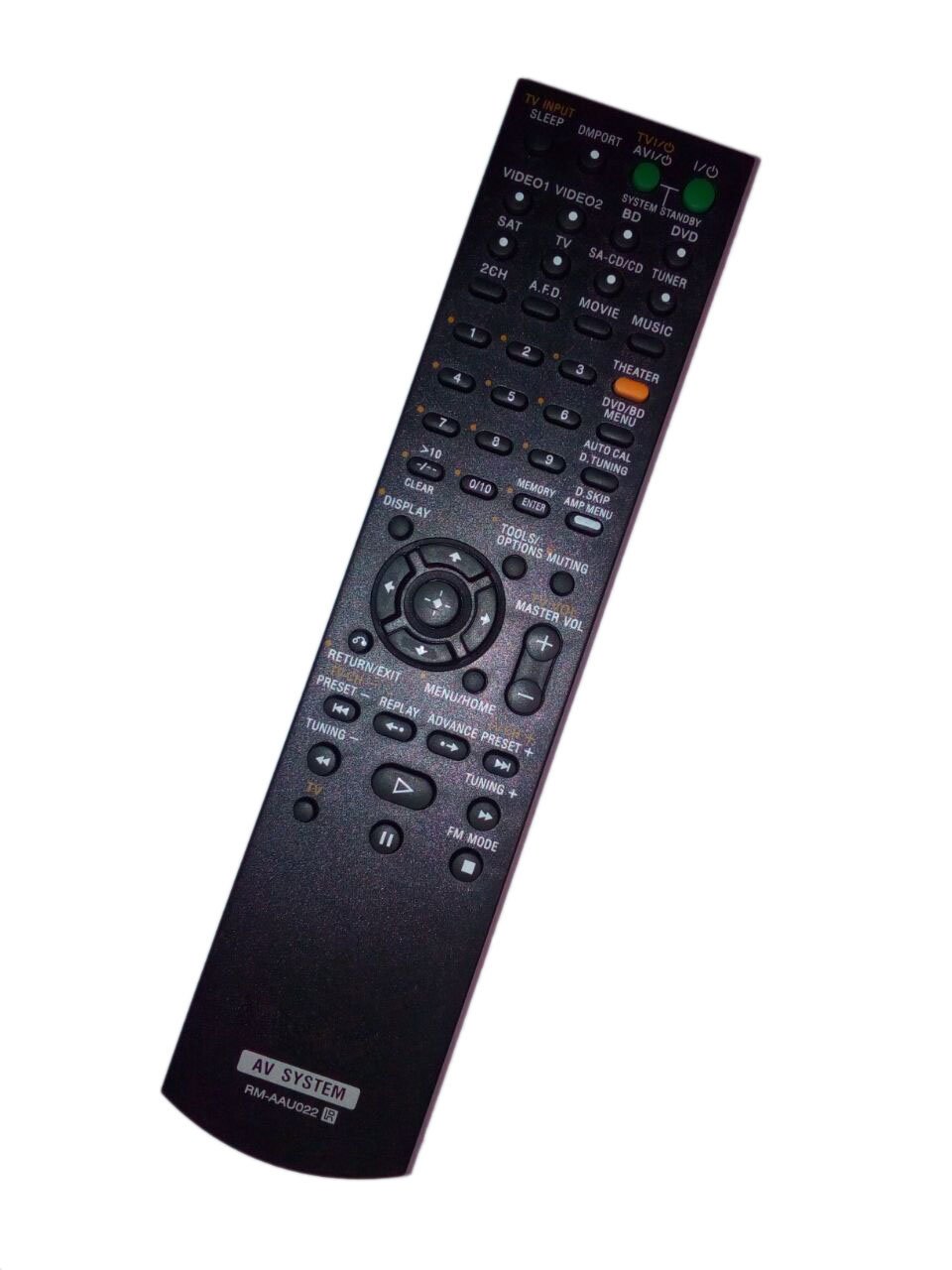

JustFine RM-AAU022 Replacement Remote Control User Manual

For Sony HT-SS2300, HTDDW5000, STR-DG520, STRKM7500, HTDDWG700 Home Theater Systems

Introduction

This manual provides essential information for the setup, operation, and maintenance of your JustFine RM-AAU022 replacement remote control. This remote is designed as a direct replacement for specific Sony Home Theater Audio/Video Receiver AV Systems, offering pre-programmed functionality without the need for additional setup.

Setup

1. Battery Installation

The RM-AAU022 remote control requires two AAA batteries (not included) for operation. Follow these steps to install the batteries:

  1. Locate the battery compartment on the back of the remote control.
  2. Press down on the small tab at the bottom of the battery compartment cover and slide the cover downwards to remove it.
  3. Insert two AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
  4. Slide the battery compartment cover back into place until it clicks securely.
Back view of the RM-AAU022 remote control showing the battery compartment.
This image displays the rear of the RM-AAU022 remote control, highlighting the battery compartment cover. To open, press the tab and slide the cover down.

Operating Instructions

Basic Operation

The JustFine RM-AAU022 remote control is pre-programmed and does not require any additional setup or coding. Once batteries are installed, it is ready for immediate use with compatible Sony Home Theater Audio/Video Receiver AV Systems.

  • Point and Operate: Aim the remote control directly at your Sony Home Theater system's infrared receiver.
  • Button Functions: Each button on the remote corresponds to a specific function on your home theater system (e.g., Power, Volume Up/Down, Channel/Input Selection, Playback controls). Refer to your Sony system's original manual for detailed button functions if needed.

Compatible Models

This remote control is compatible with the following Sony Home Theater Audio/Video Receiver AV Systems:

  • HT-SS2300
  • HTDDW5000
  • STR-DG520
  • STRKM7500
  • HTDDWG700

Maintenance

Battery Replacement

Replace batteries when the remote control's response becomes inconsistent or stops working. Always replace both batteries at the same time with new AAA batteries. Do not mix old and new batteries or different types of batteries.

Cleaning

To clean the remote control, wipe it with a soft, dry cloth. Do not use liquid cleaners, abrasive pads, or chemical solvents, as these can damage the remote's surface or internal components.

Storage

Store the remote control in a cool, dry place away from direct sunlight and extreme temperatures. If the remote will not be used for an extended period, it is recommended to remove the batteries to prevent leakage.

Troubleshooting

  • Remote not responding:
    • Check if the batteries are installed correctly with the correct polarity.
    • Replace the batteries with fresh ones.
    • Ensure there are no obstructions between the remote control and the home theater system's infrared receiver.
    • Confirm you are within the effective operating range and aiming the remote directly at the system.
  • Specific buttons not working:
    • This may indicate low battery power; try replacing the batteries.
    • Ensure the remote is compatible with your specific Sony model.

If you continue to experience issues after following these troubleshooting steps, please refer to the support information provided in this manual.

Specifications

FeatureDetail
Model NumberRM-AAU022
Product Dimensions5.31 x 1.97 x 1.18 inches
Item Weight3.04 ounces
Connectivity TechnologyInfrared
Max Number of Supported Devices1
Compatible DevicesSony Home Theater Audio/Video Receiver AV Systems (HT-SS2300, HTDDW5000, STR-DG520, STRKM7500, HTDDWG700)

Warranty and Support

Quality Warranty

This product is sold with a 30-day quality warranty. This warranty covers manufacturing defects and ensures the remote control functions as intended for the specified compatible models.

Customer Support

For any problems, questions, or concerns regarding your JustFine RM-AAU022 replacement remote control, please contact the seller or manufacturer directly for assistance.
