Walker Edison 4-Tier Storage Cabinet with Doors (Model AZT41TB), 41 Inch, Brown - Instruction Manual

1. Product Overview

The Walker Edison 4-Tier Storage Cabinet is a versatile furniture piece designed to help organize your living space. This unit features four tiers of storage behind two tempered safety glass doors, making it ideal for housing media such as DVDs, CDs, and video games, as well as books or decorative items. Constructed from high-grade MDF with a durable laminate finish, it offers both functionality and a transitional aesthetic.

Figure 1: Front view of the Walker Edison 4-Tier Storage Cabinet, closed.

Figure 2: The storage cabinet integrated into a living room environment.

2. Product Features

• Dimensions: 41 inches (Height) x 18 inches (Length) x 8 inches (Width).
• Material: Constructed from high-grade MDF, metal, and durable laminate, with tempered safety glass doors.
• Storage Capacity: Designed to hold approximately 100 DVDs.
• Adjustable Shelving: Features multiple adjustable shelves to accommodate various item sizes.
• Weight Capacity: Supports up to 250 lbs.
• Doors: Two double doors with glass panes for visibility and protection of contents.

Figure 3: Interior view highlighting the adjustable shelves.

Figure 4: Shelves filled with various media and books.

3. Setup and Assembly

Assembly of the Walker Edison 4-Tier Storage Cabinet is required. Please ensure all components are present before beginning. Basic tools such as a Phillips head screwdriver, a hammer, and potentially an Allen key (often included) will be needed. Follow the detailed instructions provided in the packaging for proper assembly.

3.1. Key Assembly Considerations

• Component Identification: All parts are typically labeled for easy identification during assembly.
• Adjustable Shelves: The shelves can be positioned at various heights using the provided grommets along the side panels. Plan your shelf placement based on the items you intend to store.
• Wall Anchor: A wall anchor strap is included for enhanced stability. It is highly recommended to secure the cabinet to a wall, especially in households with children or pets, to prevent tipping.

Figure 5: Cabinet interior with doors open, showing shelf placement options.

3.2. Assembly Video Guide

4. Operating Instructions

The storage cabinet is designed for straightforward use. The two front doors open and close smoothly to provide access to your stored items.

4.1. Opening and Closing Doors

Gently pull the metal knobs to open the doors. Push the doors firmly until they meet in the center to close them. The doors are equipped with a magnetic catch mechanism to keep them securely closed.

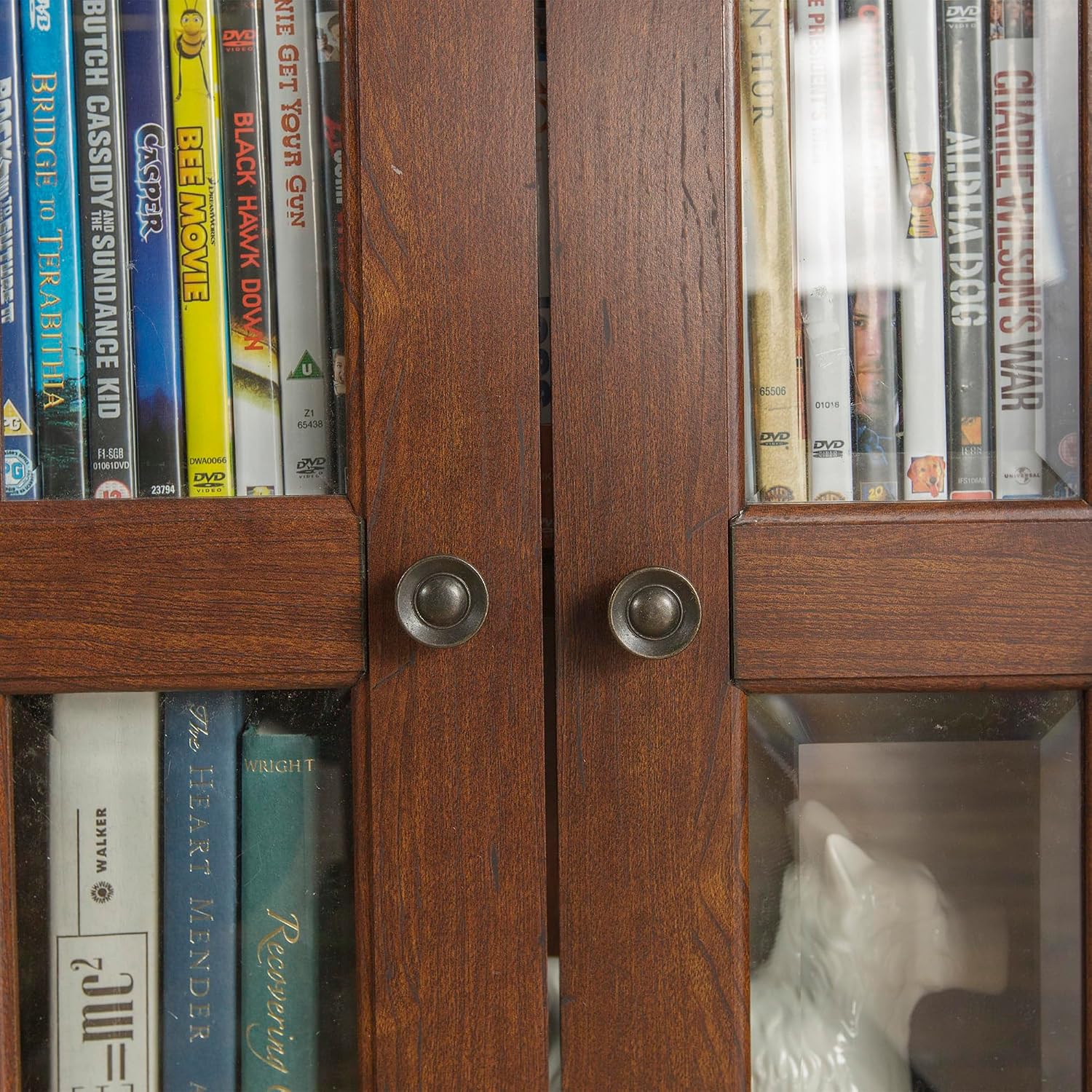

Figure 6: Detail of the cabinet doors and knobs.

4.2. Adjusting Shelves

To adjust a shelf, first remove all items from it. Carefully lift the shelf and remove the metal pins from their current holes. Reinsert the pins into the desired holes along the side panels, ensuring they are level and fully seated. Place the shelf back onto the pins.

5. Maintenance

To maintain the appearance and longevity of your Walker Edison storage cabinet, follow these simple guidelines:

• Cleaning: Wipe the surfaces with a damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the laminate finish.
• Dusting: Regularly dust the cabinet with a soft, dry cloth.
• Stability Check: Periodically check all screws and fasteners to ensure they are tight. Re-tighten if necessary. Verify that the wall anchor remains securely attached.

Figure 7: Example of the durable laminate finish.

6. Troubleshooting

6.1. Doors Not Aligning Properly

If the cabinet doors do not align perfectly after assembly, it may be due to slight variations in screw placement during installation. You can often adjust the alignment by slightly loosening and re-tightening the hinge screws, or by carefully adjusting the position of the hinges on the cabinet frame.

6.2. Cabinet Instability

If the cabinet feels unstable, ensure all assembly screws are fully tightened. Confirm that the wall anchor strap is properly installed and secured to a wall stud. For added stability, avoid placing heavy items on the top shelf or unevenly distributing weight.

7. Specifications

8. Warranty and Support

This Walker Edison product comes with a 30-day manufacturer defect warranty. For any issues or support needs, please refer to the contact information provided in your product packaging or visit the official Walker Edison store.

For additional products and information, you can visit the Walker Edison Store on Amazon.
