Instruction Manual

1. Introduction

Thank you for choosing the Berko Fan-Forced Wall Heater. This manual provides essential information for the safe installation, operation, and maintenance of your new heater. Please read this manual thoroughly before installation and keep it for future reference. This heater is designed to provide efficient supplemental heating for various indoor spaces.

2. Important Safety Information

WARNING: To reduce the risk of fire, electric shock, or injury, observe the following:

• Read all instructions before installing or using this heater.
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains, at least 3 feet (0.9 m) from the front of the heater, and keep them away from the sides and rear.
• Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
• Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped, or damaged in any manner. Discard heater or return to authorized service facility for examination and/or repair.
• Do not use outdoors.
• This heater is not intended for use in bathrooms, laundry areas, and similar indoor locations. Never locate heater where it may fall into a bathtub or other water container.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
• To disconnect heater, turn controls to off, then remove plug from outlet.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked.
• A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable vapors or liquids are used or stored.
• Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).

3. Product Overview

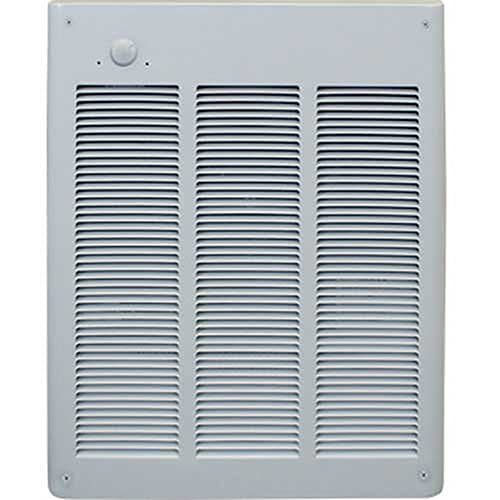

This image displays the front view of the Berko Fan-Forced Wall Heater. It features a white metal grille covering the heating elements and fan, with a small circular thermostat knob located in the upper left corner. The design is compact and intended for wall-mounted installation.

The Berko Fan-Forced Wall Heater (Model VFK204F) is a robust heating unit designed for efficient space heating. It operates at 2000/1500 Watts and is compatible with 240/208 Volt electrical systems. Key features include:

• Power Output: 2000 Watts (6824 BTU) or 1500 Watts, selectable.
• Voltage: 240 / 208 Volts, Single Phase.
• Airflow: 100 CFM (Cubic Feet per Minute).
• Construction: Durable Steel construction with a Northern White finish.
• Thermostat: Integral Double Pole thermostat for precise temperature control.
• Approval: cETLus approved for safety and quality.

4. Setup and Installation

IMPORTANT: Installation of this electric heater must be performed by a qualified electrician in accordance with all local and national electrical codes.

1. Location Selection: Choose a wall location that allows for proper air circulation and is away from drapes, furniture, and other combustible materials. Ensure adequate clearance around the heater.
2. Rough-in Dimensions: The heater requires a wall opening of approximately 18-1/4 inches in height and 14-5/16 inches in width, with a depth of 3-3/4 inches. Refer to the detailed product specifications for exact grille dimensions.
3. Electrical Connection:
   • Ensure the power supply is disconnected at the circuit breaker before beginning any electrical work.
   • Connect the heater to a dedicated 240V or 208V circuit as per local electrical codes. The heater draws 8.3 Amps at 240V (2000W) or 7.2 Amps at 208V (1500W).
   • Follow the wiring diagram provided with the heater's packaging for correct connections.
4. Mounting: Securely mount the heater housing into the wall opening using appropriate fasteners. Ensure it is level and flush with the wall surface.
5. Grille Installation: Once wiring is complete and the housing is secured, attach the front grille.
6. Final Check: Before restoring power, double-check all connections and ensure no wires are pinched or exposed.

5. Operating Instructions

The Berko Fan-Forced Wall Heater features an integral double pole thermostat for easy temperature control.

1. Power On: Ensure the circuit breaker supplying power to the heater is in the "ON" position.
2. Setting Temperature: Rotate the thermostat knob located on the front of the unit clockwise to increase the desired temperature, and counter-clockwise to decrease it. The heater will cycle on and off to maintain the set temperature.
3. Heat Output Selection (if applicable): Some models may have internal wiring options to select between 2000W and 1500W output. This selection is typically made during installation by a qualified electrician. Refer to the installation guide for details.
4. Fan Operation: The fan operates automatically when the heater is active to distribute warm air efficiently.
5. Power Off: To turn off the heater, rotate the thermostat knob counter-clockwise until it clicks into the "OFF" position. For complete disconnection, turn off the circuit breaker.

6. Maintenance

Regular maintenance ensures optimal performance and longevity of your heater. Always disconnect power at the circuit breaker before performing any maintenance.

• Cleaning the Grille: Periodically, use a soft, damp cloth to wipe down the exterior grille. Do not use abrasive cleaners or solvents.
• Dust Removal: Use a vacuum cleaner with a brush attachment to gently remove dust and debris from the grille openings and inside the heater housing (if accessible without disassembly). Ensure the fan blades are free of dust buildup.
• Annual Inspection: It is recommended to have a qualified electrician inspect the heater annually, especially before the heating season, to check electrical connections and overall condition.
• Do not attempt to lubricate the motor or any other internal components. This heater is designed for maintenance-free operation of internal parts.

7. Troubleshooting

If your heater is not operating correctly, consult the following table before contacting service.

8. Specifications

9. Warranty and Support

For specific warranty information regarding your Berko Fan-Forced Wall Heater, please refer to the documentation included with your purchase or visit the official website of Marley Engineered Products.

If you require technical assistance, troubleshooting beyond this manual, or parts replacement, please contact Marley Engineered Products customer support directly. Contact information can typically be found on their official website or on the product packaging.
