1. Introduction
Thank you for choosing the Philips RC127V Ceiling Light. This product is designed to provide efficient and high-quality illumination for indoor environments, particularly offices. Please read this manual carefully before installation and use to ensure proper operation and safety.
Key Features:
- Dedicated ceiling lamp for indoor use.
- Luminous Flux: 3400 lm.
- Color Temperature: 4000 Kelvin (Cool White).
- AC Input Frequency: 50 - 60 Hz.
- Minimalist design, suitable for recessed installation.
2. Safety Information
Always follow basic safety precautions when installing or working with electrical products. Failure to do so may result in injury or damage to the product.
- WARNING: Always disconnect power before installation, maintenance, or cleaning.
- Ensure the power supply voltage matches the product's requirements.
- This product is designed for indoor use only (IP20 rating). Do not expose to water or high humidity.
- Installation should be performed by a qualified electrician in accordance with local electrical codes.
- Do not attempt to modify or disassemble the product beyond what is described in this manual.
Bulb Recycling and Cleaning:
For information on recycling this product and other types of bulbs, please consult local recycling guidelines. If a bulb (or integrated LED module) is broken or damaged, exercise extreme caution. More information on how to safely clean and dispose of broken or damaged bulbs can be found through environmental protection agencies or local waste management services.
3. Package Contents
Upon unpacking, please verify that all components are present and undamaged:
- Philips RC127V Ceiling Light Fixture (1 unit)
- Mounting Hardware (screws, anchors, etc. - may vary by region)
- User Manual (this document)
4. Installation Guide
The Philips RC127V Ceiling Light is designed for recessed installation in a ceiling grid. Professional installation is highly recommended.
- Prepare the Installation Area: Ensure the ceiling opening is appropriately sized for the fixture (refer to specifications for dimensions). Turn off power at the circuit breaker before beginning any electrical work.
- Connect Wiring: Carefully connect the electrical wires from the ceiling to the fixture's terminal block. Ensure correct polarity (Live, Neutral, Ground) according to local electrical codes. Secure all connections.
- Mount the Fixture: Insert the fixture into the ceiling opening. Use the provided mounting hardware to secure the light firmly in place. Ensure it is flush with the ceiling surface.
- Final Check: Once installed, ensure all connections are secure and the fixture is properly seated. Restore power at the circuit breaker.
Rear view of the Philips RC127V Ceiling Light, illustrating the mounting points and electrical connection area, crucial for proper installation.

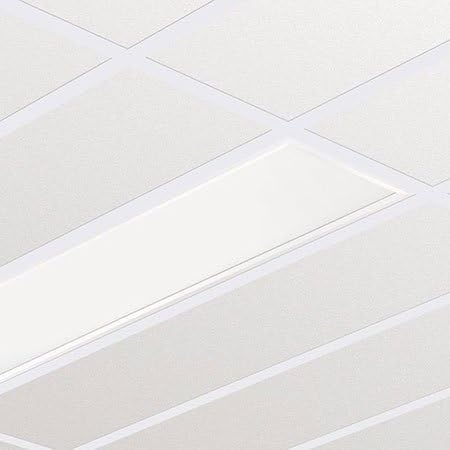

The Philips RC127V Ceiling Light installed in a typical grid ceiling, showcasing its minimalist design and seamless integration.
5. Operating Instructions
The Philips RC127V Ceiling Light operates via a standard wall switch connected to its power supply. Once installed and powered, simply use the wall switch to turn the light on or off.
6. Maintenance
Regular cleaning will help maintain the appearance and performance of your Philips RC127V Ceiling Light.
- Cleaning: Ensure the power is off and the fixture is cool before cleaning. Use a soft, dry, or slightly damp cloth to wipe the surface. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or materials.
- No User-Replaceable Parts: This luminaire contains built-in LED lamps that are not designed to be replaced by the user. Do not attempt to open the sealed light source.
7. Troubleshooting
If you encounter issues with your Philips RC127V Ceiling Light, try the following basic troubleshooting steps:
- Light Does Not Turn On:
- Check if the power switch is in the 'ON' position.
- Verify that the circuit breaker supplying power to the light is not tripped.
- Ensure all electrical connections are secure (only if you are a qualified electrician).
- Flickering Light:
- Check for loose wiring connections (only if you are a qualified electrician).
- Ensure the power supply is stable and within the specified voltage range.
If the problem persists after trying these steps, please contact Philips customer support or a qualified electrician.
8. Technical Specifications
| Specification | Value |
|---|---|
| Brand | Philips Lighting |
| Product Model Number | RC127LED34/8403 |
| Product Dimensions | 127 x 33.8 x 7 cm (Length x Width x Height) |
| Product Weight | 4.1 kg |
| Protection Index (IP Rating) | IP20 |
| Style | Minimalist |
| Material | Plastic, Polycarbonate |
| Number of Light Sources | 1 (Integrated LED Module) |
| Specific Uses | Ceiling, Office |
| Shade Color | White |
| Shade Material | Aluminum |
| Switch Installation Type | Monopoint |
| Light Source Type | LED (Integrated) |
| Luminaire Shape | Ceiling Panel |
| Indoor or Outdoor Use | Indoor |
Official energy label for the Philips CoreLine Panel, indicating that the luminaire contains built-in LED lamps and providing energy efficiency class information.
Energy efficiency rating graphic, indicating a range from A to A++ for the Philips RC127V Ceiling Light, highlighting its energy-saving capabilities.
9. Warranty and Support
For warranty information and customer support, please refer to the warranty card included with your product or visit the official Philips Lighting website. You can also contact Philips customer service directly for assistance with product inquiries, technical support, or service requests.
Philips Lighting Official Website: www.lighting.philips.com
