LUITON LT-316 GMRS UHF Two-Way Radio

1. Introduction

Thank you for choosing the LUITON LT-316 GMRS UHF Two-Way Radio. This manual provides essential information for the safe and efficient operation of your device. Please read it thoroughly before use and retain it for future reference.

The LUITON LT-316 is a compact and durable two-way radio designed for reliable communication. Key features include strong anti-interference capabilities, dustproof construction, 3 Watts output power, and a 1500 mAh battery with Micro-USB charging. It operates on GMRS UHF frequencies and offers a communication range of up to 10 miles in optimal conditions.

Image 1.1: Two LUITON LT-316 GMRS UHF Two-Way Radios, front view. These compact black radios feature a built-in antenna and a simple, ergonomic design.

2. Package Contents

Upon unpacking, please verify that all items listed below are present and in good condition:

• LUITON LT-316 Two-Way Radio Unit(s)
• 1500 mAh Li-ion Battery
• Belt Clip
• Micro-USB Charging Cable
• Power Adapter
• User's Manual

Image 2.1: The complete package contents for the LUITON LT-316, including the radio unit, battery, belt clip, charging cable, power adapter, and user manual.

3. Product Overview

Familiarize yourself with the various parts of your LUITON LT-316 radio:

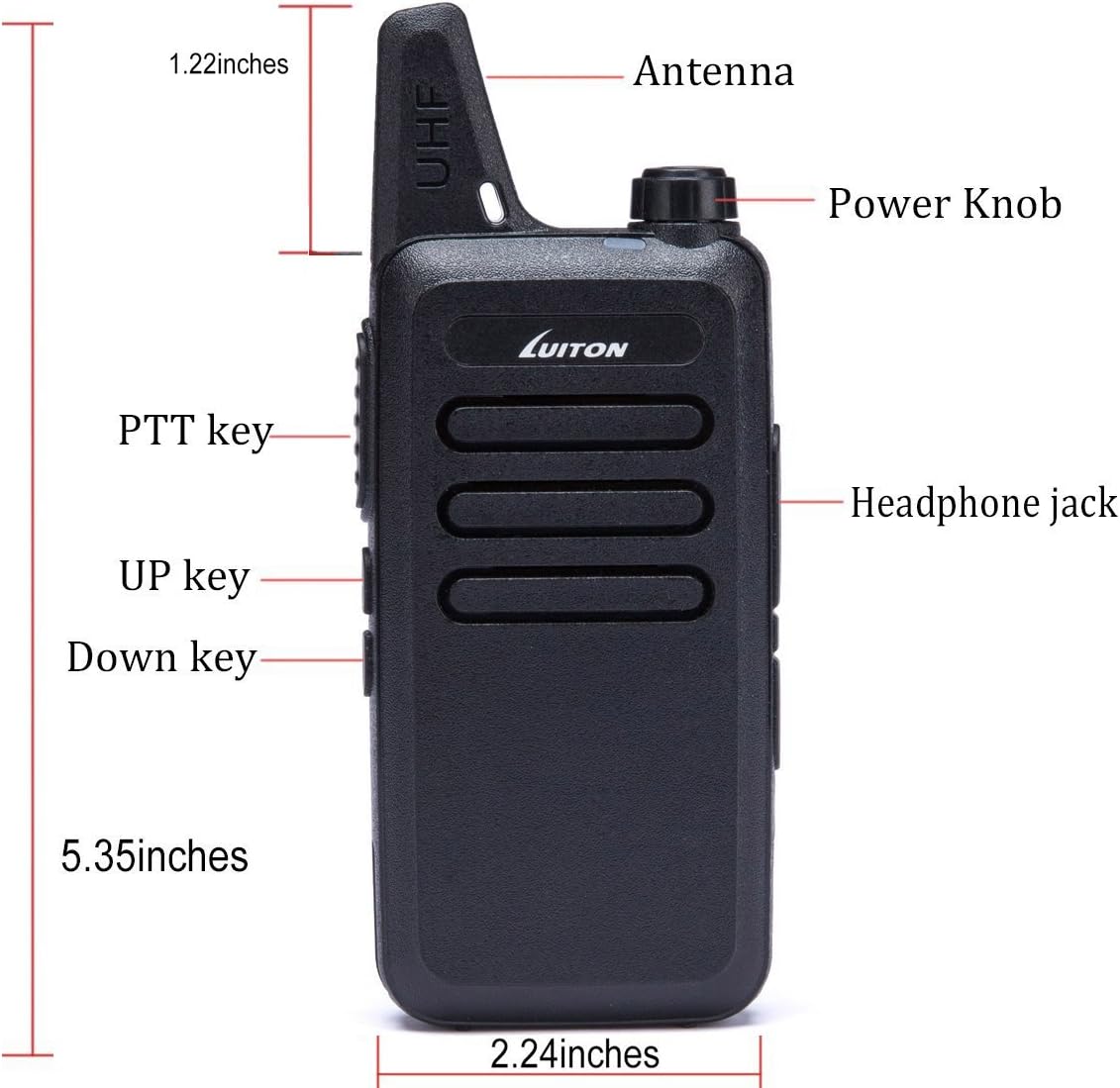

Image 3.1: A detailed diagram of the LUITON LT-316 radio, highlighting its key components and dimensions. Labels include Antenna, Power Knob, PTT key, UP key, Down key, and Headphone jack. The radio measures approximately 3.78 inches in height, 2.17 inches in width, and 0.87 inches in depth.

• Antenna: Integrated UHF antenna for signal transmission and reception.
• Power Knob: Rotates to turn the radio ON/OFF and adjusts the volume level.
• PTT (Push-to-Talk) Key: Press and hold to transmit your voice; release to receive.
• UP Key: Used for channel selection or menu navigation.
• Down Key: Used for channel selection or menu navigation.
• Headphone Jack: For connecting an external earpiece or microphone.

4. Setup

4.1. Battery Installation

1. Ensure the radio is powered off.
2. Locate the battery compartment cover on the back of the radio.
3. Slide the cover down or unlatch it according to the radio's design.
4. Insert the 1500 mAh Li-ion battery, ensuring the contacts align correctly.
5. Replace the battery compartment cover and secure it.

4.2. Charging the Battery

Before initial use, fully charge the battery. The radio uses a Micro-USB port for convenient charging.

1. Connect the Micro-USB charging cable to the radio's charging port.
2. Connect the other end of the cable to the provided power adapter.
3. Plug the power adapter into a standard electrical outlet.
4. The charging indicator (if present) will illuminate, typically red during charging and green when fully charged.
5. Charging typically takes 3-4 hours for a full charge.

5. Operating Instructions

5.1. Power On/Off and Volume Adjustment

To power on the radio, rotate the Power Knob clockwise until you hear a click. Continue rotating to increase the volume. To power off, rotate the knob counter-clockwise until it clicks off.

5.2. Channel Selection

The LUITON LT-316 features 16 channels. Use the UP and DOWN keys on the side of the radio to cycle through the available channels. Ensure both radios are on the same channel for communication.

5.3. Transmitting and Receiving (PTT)

1. To transmit, press and hold the PTT key. Speak clearly into the microphone, located near the PTT key.
2. Release the PTT key to stop transmitting and return to receive mode.
3. When receiving a transmission, the radio will automatically output the audio.

5.4. Scanning Function

The radio supports a scanning function to monitor all active channels. Refer to the specific instructions in the included user manual for activating and managing the scanning feature.

5.5. Using the Belt Clip

Attach the provided belt clip to the back of the radio for convenient carrying. Slide the radio into the clip until it locks securely.

Image 5.1: A side view of the LUITON LT-316 radio, demonstrating the attached belt clip for easy portability.

6. Maintenance

• Cleaning: Use a soft, damp cloth to clean the radio's exterior. Do not use harsh chemicals or abrasive cleaners.
• Battery Care: To prolong battery life, avoid overcharging and fully discharging the battery regularly. Store the radio and battery in a cool, dry place when not in use for extended periods.
• Water Resistance: The LUITON LT-316 is rated as waterproof. However, avoid submerging it in water for prolonged periods or exposing it to high-pressure water jets. Ensure the charging port cover is securely closed to maintain water resistance.
• Storage: Store the radio in a dry, dust-free environment away from direct sunlight and extreme temperatures.

7. Troubleshooting

If you encounter issues with your LUITON LT-316 radio, refer to the following common problems and solutions:

• No Power:
  • Ensure the battery is correctly installed and fully charged.
  • Check if the Power Knob is turned ON.
• Cannot Transmit or Receive:
  • Verify that both radios are on the same channel.
  • Ensure the PTT key is fully pressed when transmitting.
  • Check for obstructions or excessive distance between radios.
  • Confirm battery level is sufficient.
• Poor Audio Quality or Short Range:
  • Adjust the volume level.
  • Ensure the antenna is unobstructed.
  • Move to an open area away from buildings, hills, or other interference sources.
  • Check for strong electromagnetic interference.

If the problem persists, please contact customer support.

8. Specifications

9. Safety Information

• Do not operate the radio in explosive atmospheres (e.g., flammable gases, dust particles, metallic powders).
• Do not modify or disassemble the radio. Unauthorized modifications can void your warranty and may result in injury.
• Keep the radio away from medical devices, as it may interfere with their operation.
• Use only LUITON-approved batteries and charging accessories.
• Avoid exposing the radio to extreme temperatures or direct sunlight for extended periods.
• Dispose of batteries and electronic components responsibly according to local regulations.

10. Warranty and Support

LUITON products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the contact details provided on the product packaging or the official LUITON website. Please have your product model number (LT-316) and purchase date available when contacting support.
