Baolide MANOPOLA INTERRUTTORE GRUPPO 42 mm
Baolide Group Switch Knob for La Cimbali M22/M29/M29 Compact - Instruction Manual
Introduction
This manual provides instructions for the installation, operation, and maintenance of the Baolide Group Switch Knob, designed for use with La Cimbali M22, M29, and M29 Compact espresso machines. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
The Baolide Group Switch Knob is a replacement part, specifically identified as MANOPOLA INTERRUTTORE GRUPPO 42 mm, compatible with the specified La Cimbali models.
Safety Information
WARNING:
- Always disconnect power to the espresso machine before attempting any installation, maintenance, or repair. Failure to do so may result in electric shock or injury.
- Installation should only be performed by qualified personnel or individuals with experience in appliance repair.
- Ensure all connections are secure and correct before restoring power.
- Keep small parts away from children.
Setup and Installation
- Preparation: Ensure the La Cimbali espresso machine is turned off and unplugged from the power source. Allow the machine to cool down if it has been in operation.
- Accessing the Switch: Depending on your specific La Cimbali model (M22, M29, M29 Compact), you may need to remove a panel or cover to access the existing group switch knob. Refer to your espresso machine's service manual for specific instructions on accessing internal components.
- Removing the Old Knob: Carefully remove the old group switch knob. This may involve unscrewing a retaining screw or gently prying it off. Note the orientation and any underlying components.
- Installing the New Knob: Position the Baolide Group Switch Knob (MANOPOLA INTERRUTTORE GRUPPO 42 mm) onto the switch shaft. Ensure it aligns correctly with any indexing features. Gently push or secure it into place. If a retaining screw was present, re-install it and tighten it appropriately, but do not overtighten.
- Reassembly: Reattach any panels or covers that were removed. Ensure all components are securely fastened.

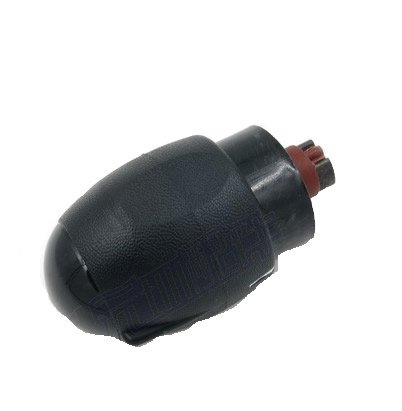

Image: The Baolide Group Switch Knob, a replacement part for La Cimbali espresso machines. This image shows the knob's design and size, which is 42mm in diameter.
Operating Instructions
The Baolide Group Switch Knob functions identically to the original knob it replaces. Its primary function is to control the ON-OFF operation of the group switch on your La Cimbali espresso machine.
- Power On: After installation, plug the espresso machine back into the power source.
- Switch Operation: Rotate the knob to the desired position to activate or deactivate the group. The operation mode is ON-OFF.
- Functionality: The knob provides tactile control for the internal switch mechanism, allowing users to initiate or stop the brewing process for a specific group.
Maintenance
The Baolide Group Switch Knob requires minimal maintenance.
- Cleaning: Wipe the knob with a damp cloth to remove any coffee residue or dust. Avoid using abrasive cleaners or solvents, as these may damage the finish.
- Inspection: Periodically check the knob for any signs of wear, looseness, or damage. If the knob becomes loose, ensure the retaining screw (if applicable) is tightened.
- Replacement: If the knob becomes cracked, broken, or no longer functions smoothly, it should be replaced to ensure proper operation of the espresso machine.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Knob feels loose or wobbly. | Retaining screw is loose or missing. | Ensure the retaining screw is present and tightened. If missing, replace it. |
| Knob does not turn smoothly. | Debris under the knob or damaged switch shaft. | Remove the knob and clean the area. Inspect the switch shaft for damage. If the shaft is damaged, the internal switch may need replacement. |
| Knob turns but group does not activate/deactivate. | Internal switch failure or incorrect installation. | Verify the knob is correctly seated on the switch shaft. If the problem persists, the internal group switch may be faulty and require professional service. |
For issues not listed here, or if troubleshooting steps do not resolve the problem, please consult a qualified technician or refer to your La Cimbali espresso machine's service manual.
Specifications
- Product Name: Group Switch Knob
- Brand: Baolide
- Part Number: 492906000 (La Cimbali equivalent)
- Diameter: 42 mm
- Operation Mode: ON-OFF
- Mounting Type: Panel Mount
- Color: Black
- Compatible Models: La Cimbali M22, M29, M29 Compact
- UPC: 613635180391
- ASIN: B01JCAATTK
Warranty Information
Specific warranty details for Baolide products may vary. Please refer to the retailer or the original purchase documentation for information regarding warranty coverage and terms. Keep your proof of purchase for any warranty claims.
Customer Support
For further assistance or inquiries regarding the Baolide Group Switch Knob, please contact the retailer from whom the product was purchased. For technical support related to your La Cimbali espresso machine, please refer to the manufacturer's official support channels.
