1. Introduction
This manual provides instructions for the installation, operation, and maintenance of your Indesit Washing Machine Door Interlock Switch. This component is an original replacement part designed to ensure the safe and proper functioning of your washing machine's door locking mechanism. It is crucial for preventing the door from opening during operation and for initiating wash cycles.
Please read this manual thoroughly before attempting any installation or repair to ensure safety and correct procedure.
2. Safety Information
WARNING: Always disconnect the washing machine from the main power supply before attempting any installation, maintenance, or repair work. Failure to do so can result in electric shock, serious injury, or death.
- Ensure the appliance is completely unplugged from the wall socket.
- If you are unsure about any step, consult a qualified technician.
- Wear appropriate personal protective equipment, such as gloves, if necessary.
- Keep children and pets away from the appliance during repair.
3. Setup and Installation
This section outlines the general steps for replacing the door interlock switch. Specific procedures may vary slightly depending on your washing machine model. Refer to your washing machine's service manual for detailed instructions if available.
3.1 Tools Required
- Screwdriver (Phillips and/or flathead)
- Pliers (optional, for stubborn connectors)
- Multimeter (optional, for testing electrical connections)
3.2 Installation Steps
- Disconnect Power: Unplug the washing machine from the electrical outlet. Turn off the water supply to the machine.
- Access the Door Lock:
Open the washing machine door. Locate the door seal (gasket) around the door opening. Carefully peel back the inner lip of the door seal from the front panel to expose the retaining wire or spring clip. Remove this clip using a screwdriver or pliers.

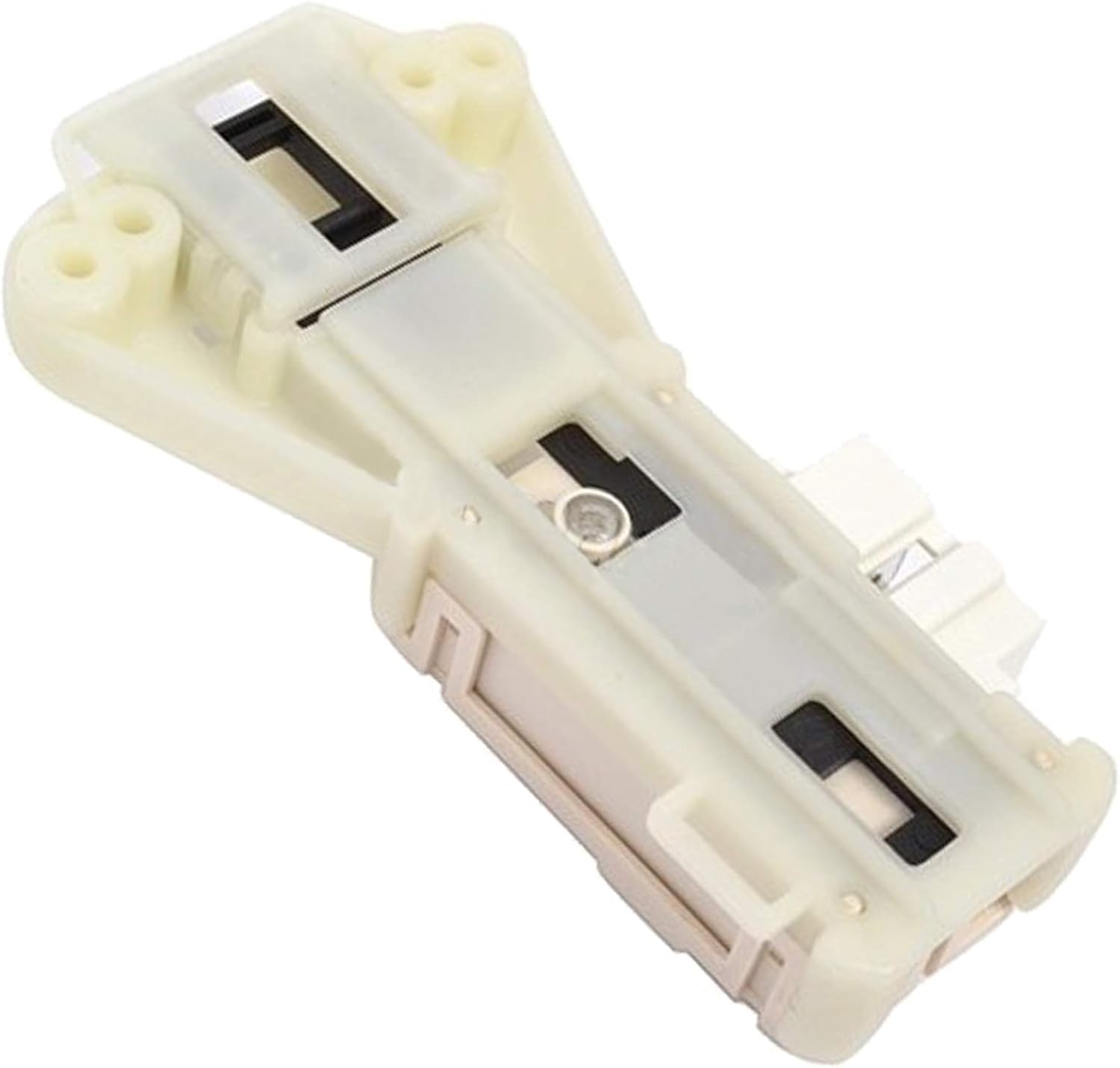

Image 1: Front view of the Indesit washing machine door interlock switch, showing the main body and locking mechanism.
- Remove Front Panel Screws:
Depending on your model, you may need to remove screws securing the front panel or top panel to gain full access to the door lock. These screws are often located behind the detergent drawer or at the bottom of the front panel.
Image 2: Example of screws that may be used to secure the door lock or front panel. Note: Screws are often not included with the replacement part.
- Locate and Disconnect Old Switch:
Reach inside the washing machine cabinet through the door opening or from the front panel access. The door interlock switch is typically mounted to the front panel near the door opening. Disconnect the electrical wiring harness from the old switch. Note the orientation of the wires if they are not color-coded or keyed.
Image 3: Rear view of the door interlock switch, highlighting the electrical connection points.
- Remove Old Switch:
Unscrew any retaining screws holding the old switch in place. Gently push the old switch out from its mounting position.
- Install New Switch:
Insert the new Indesit door interlock switch into the opening, ensuring it is correctly oriented. Secure it with the retaining screws. Reconnect the electrical wiring harness to the new switch, ensuring a firm connection.
Image 4: Side view of the door interlock switch, illustrating its complete form for proper alignment during installation.
- Reassemble: Reattach the front panel (if removed) and secure it with screws. Reinstall the door seal retaining wire/clip, ensuring the seal is properly seated around the door opening.
- Test: Plug the washing machine back into the electrical outlet and turn on the water supply. Close the door and attempt to start a wash cycle. The door should lock, and the cycle should begin. If not, refer to the Troubleshooting section.
4. Operating Principles
The door interlock switch is a critical safety component. When the washing machine door is closed and a wash cycle is selected, the control board sends a signal to the interlock switch. The switch then engages a locking mechanism, preventing the door from being opened during operation. Simultaneously, it sends a signal back to the control board, confirming the door is securely locked, allowing the wash cycle to commence. This ensures water containment and user safety.
5. Maintenance
The door interlock switch is generally a sealed unit and does not require routine maintenance. However, to prolong its lifespan and ensure proper function:
- Avoid Forcing the Door: Never force the washing machine door open or closed. This can damage the door latch and the interlock switch.
- Keep Door Seal Clean: Regularly clean the door seal to prevent debris buildup that might interfere with the door closing properly, which could affect the interlock switch.
- Check for Obstructions: Ensure no clothing or foreign objects are caught in the door when closing it.
6. Troubleshooting
If your washing machine is experiencing issues related to the door lock, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Door not locking / Cycle not starting | Faulty door interlock switch, door not fully closed, wiring issue. | Ensure door is firmly closed. Check for obstructions. Inspect wiring connections. If issues persist, the switch may need replacement. |
| Door remains locked after cycle ends | Faulty door interlock switch, control board issue, power interruption. | Wait a few minutes after the cycle. Try unplugging the machine for 5 minutes and plugging it back in (hard reset). If the door remains locked, the switch may be faulty. |
| Error code related to door lock | Door interlock switch malfunction. | Consult your washing machine's user manual for specific error code meanings. Often indicates a faulty door lock switch. |
If troubleshooting steps do not resolve the issue, professional assistance may be required.
7. Specifications
- Brand: Indesit
- Part Type: Door Interlock Switch
- Voltage: 120 Volts
- Interface: Buttons (referring to the washing machine's interface, not the switch itself)
- Compatibility: IWC 71451 ECO(EU), IWC 71452 C FR.C, IWC 7148 (DE), IWC 7148 (FR), IWC 7168 (DE), IWC 7168 (EU), IWC 8085 B (EU), IWC 8085 B (GR), IWC 8105. B (UE), I. WC 8105 B (EX) 60HZ, IWC 8105 B (KW), IWC 81051 C ECO(EU), IWC 81052 C ECO EU, IWC 8108 B (IT), IWC 81081 ECO (EU), IWC 81082 C ECO (IT), IWC 81082 ECO U), IWC 8. 109 ECO (IT), IWC 8123 (UK), IWC 8125 B (EU), IWC 81251 B (EU), IWC 81251 B ECO (EU), IWC 81251 C (FR), IWC 81252 C FR, IWC 8128 (FR), I(EWC 8128 B U (and other compatible models)
- ASIN: B01JAF2MWE
8. Warranty Information
Specific warranty details for this replacement part are not provided in the product information. Please refer to the original purchase documentation or contact the seller directly for warranty terms and conditions. As an original replacement part, it is typically covered by the manufacturer's standard spare parts warranty, which may vary by region.
9. Support
For further assistance, technical support, or to inquire about specific washing machine models not listed, please contact Indesit customer service or an authorized service center. When contacting support, have your washing machine's model number and serial number ready, along with the ASIN (B01JAF2MWE) of this replacement part.
You can often find contact information on the Indesit official website or in your washing machine's original user manual.
