Elna eXpressive 920 Sewing, Quilting, and Embroidery Machine User Manual

1. Introduction

This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your Elna eXpressive 920 Sewing, Quilting, and Embroidery Machine. Please read this manual thoroughly before using the machine to ensure proper function and to prevent damage.

2. Important Safety Instructions

When using an electrical appliance, basic safety precautions should always be followed, including the following:

• Read all instructions before using this sewing machine.
• Keep fingers away from all moving parts. Special care is required around the sewing machine needle.
• Always use the proper needle plate. The wrong plate can cause the needle to break.
• Turn the sewing machine off when making any adjustments in the needle area, such as threading the needle, changing the needle, threading the bobbin, or changing the presser foot.
• Always unplug the sewing machine from the electrical outlet when removing covers, lubricating, or when making any other user servicing adjustments mentioned in the instruction manual.
• Never operate the machine if it has a damaged cord or plug, if it is not working properly, or if it has been dropped or damaged.
• Do not use outdoors.

3. Product Overview

The Elna eXpressive 920 is a versatile machine designed for sewing, quilting, and embroidery. It features a large workspace, an intuitive touch screen, and a wide array of built-in designs and stitches.

Figure 3.1: The Elna eXpressive 920 machine with its extension table attached, providing an expansive work surface for large projects like quilting.

Key Features:

• 350 Embroidery Designs: Includes a wide variety of built-in embroidery patterns.
• 10 Embroidery Fonts and 2 Alphabets: Offers extensive customization for lettering.
• High Sewing Speed: Adjustable up to 1,060 stitches per minute (spm).
• Automatic Presser Foot Lifter: Enhances ease of use and efficiency.
• Extra-High Presser Foot Lifter: Accommodates thicker fabrics and multiple layers.
• Large Color Touch Screen: For intuitive navigation and design selection.

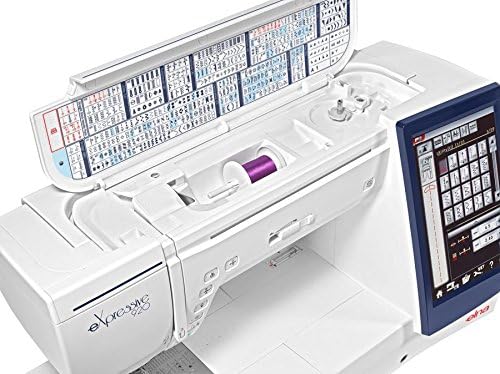

Figure 3.2: Top view of the Elna eXpressive 920, illustrating the accessible thread spool compartment and the convenient stitch guide located on the inside of the top cover.

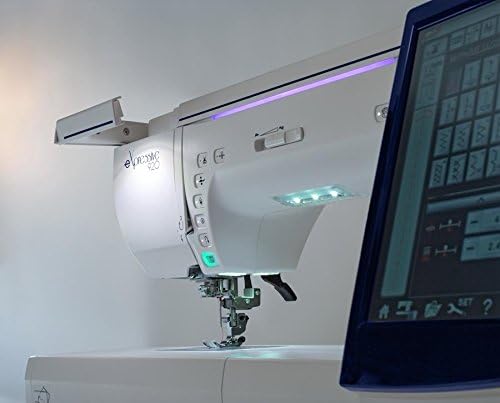

Figure 3.3: A close-up side view of the Elna eXpressive 920, highlighting the integrated LED lighting system and the easily accessible control buttons for various functions.

4. Setup

4.1 Unpacking and Placement

1. Carefully remove the machine from its packaging. Retain all packaging materials for future transport or storage.
2. Place the machine on a stable, level surface. Ensure there is adequate space around the machine for comfortable operation and fabric handling.
3. Connect the power cord to the machine and then to a suitable electrical outlet.

4.2 Attaching the Extension Table

For larger projects, such as quilting, attach the included extension table to expand your workspace.

1. Align the pins on the extension table with the corresponding holes on the free arm of the machine.
2. Gently push the table towards the machine until it clicks into place.
3. Adjust the support legs on the extension table for stability.

Figure 4.1: The Elna eXpressive 920 with the extension table securely attached, demonstrating the expanded work area for larger sewing and quilting projects.

4.3 Threading the Machine

Proper threading is crucial for optimal stitch quality. Refer to the on-screen guide or the detailed instructions in the full manual for specific threading paths.

1. Place the spool of thread on the spool pin.
2. Follow the numbered threading guides on the machine, ensuring the thread is seated correctly in each tension disc and guide.
3. Thread the needle using the automatic needle threader or manually.

4.4 Winding and Inserting the Bobbin

The bobbin provides the lower thread for stitching.

1. Place an empty bobbin onto the bobbin winder spindle.
2. Follow the bobbin winding path and start winding. The machine will automatically stop when the bobbin is full.
3. Open the bobbin cover plate and insert the wound bobbin into the bobbin case, following the indicated thread path.

5. Operating Instructions

5.1 Basic Sewing

1. Turn on the machine using the power switch. The touch screen will illuminate.
2. Select your desired stitch pattern from the touch screen. Adjust stitch length and width as needed.
3. Place your fabric under the presser foot. Lower the presser foot using the lever or the automatic presser foot lifter.
4. Begin sewing by pressing the foot controller or the Start/Stop button. Adjust sewing speed using the speed control slider.
5. To finish, press the reverse stitch button for a few stitches, then press the thread cutter button or manually cut the threads.

5.2 Embroidery Functions

The Elna eXpressive 920 offers 350 built-in embroidery designs, 10 fonts, and 2 alphabets.

1. Attach the embroidery unit and hoop to the machine.
2. Select an embroidery design from the touch screen. You can resize, rotate, and combine designs.
3. Hoop your fabric with stabilizer.
4. Follow the on-screen prompts for thread color changes and other instructions.
5. Start the embroidery process. The machine will automatically stitch the design.

5.3 Quilting

This machine is well-suited for quilting with its large workspace and various quilting stitches.

• Utilize the extension table for better support of large quilt projects.
• Select appropriate quilting stitches from the machine's menu.
• Consider using a walking foot (often included in accessories) for even feeding of multiple fabric layers.
• Adjust the presser foot pressure if necessary for different fabric thicknesses.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your Elna eXpressive 920.

6.1 Cleaning

1. Always unplug the machine before cleaning.
2. Remove the needle plate and bobbin case.
3. Use the provided brush to remove lint and dust from the feed dogs, bobbin area, and tension discs.
4. Wipe the exterior of the machine with a soft, dry cloth. Do not use harsh chemicals.

6.2 Lubrication

Your Elna eXpressive 920 is designed to require minimal lubrication. Refer to the full instruction manual for specific lubrication points and frequency, if any are required. Over-oiling can cause issues.

6.3 Needle Replacement

Replace the needle regularly (after 8-10 hours of sewing or when it becomes dull/bent) to prevent skipped stitches and fabric damage.

1. Turn off and unplug the machine.
2. Loosen the needle clamp screw.
3. Remove the old needle and insert a new one with the flat side facing the back of the machine, pushing it up as far as it will go.
4. Tighten the needle clamp screw securely.

7. Troubleshooting

This section addresses common issues you might encounter. For more complex problems, consult the full service manual or contact customer support.

8. Specifications

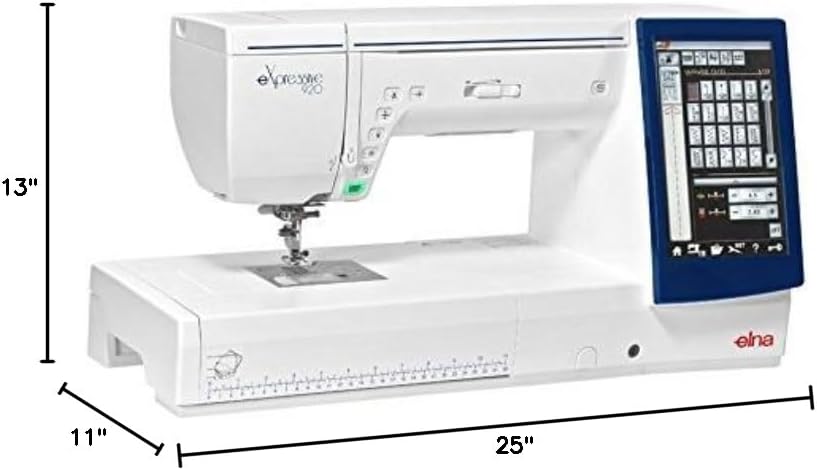

Figure 8.1: The Elna eXpressive 920 machine with its approximate dimensions: 25 inches in length, 11 inches in width, and 13 inches in height.

Figure 8.2: A comprehensive view of the accessories included with the Elna eXpressive 920, featuring various presser feet, bobbins, needles, cleaning tools, and other essential components for diverse sewing and embroidery tasks.

9. Warranty and Support

For warranty information, please refer to the warranty card included with your product or visit the official Elna website.

For technical support, service, or to order replacement parts, please contact your authorized Elna dealer or Elna customer service. Keep your model number (eXpressive 920) and serial number (found on the machine's rating plate) ready when contacting support.

Online Resources: For additional guides, FAQs, and software updates, visit the official Elna support portal.
