Introduction
Thank you for choosing the AquaForte Fish Feeder 7 Litres. This automatic feeder is designed to provide consistent and controlled feeding for your pond fish, ensuring optimal growth and vibrant coloration. Please read this manual carefully before installation and operation to ensure proper use and longevity of your device.
The AquaForte Fish Feeder allows for flexible programming, with up to 24 feeding times per day and adjustable dosage durations. It is suitable for granules ranging from 2 mm to 9 mm.
Setup
- Unpacking: Carefully remove all components from the packaging. Ensure all parts are present: the feeder unit, mounting arm, control unit, and power cable.
- Mounting: Select a stable, level surface near your pond for installation. The feeder should be mounted securely using the provided arm. Ensure the feeder is perfectly level to prevent unintended food dispensing.
Image: AquaForte Fish Feeder mounted on its wall bracket, showing the side profile.
- Filling the Feeder: Open the lid of the feeder unit. Pour your desired fish food (granule size 2-9 mm) into the 7-liter reservoir. Close the lid securely.
- Control Unit Placement: The control unit contains sensitive electronics. It is crucial to protect it from direct water exposure, rain, and excessive humidity. Consider placing it under a protective cover or in an external cubicle if used outdoors.

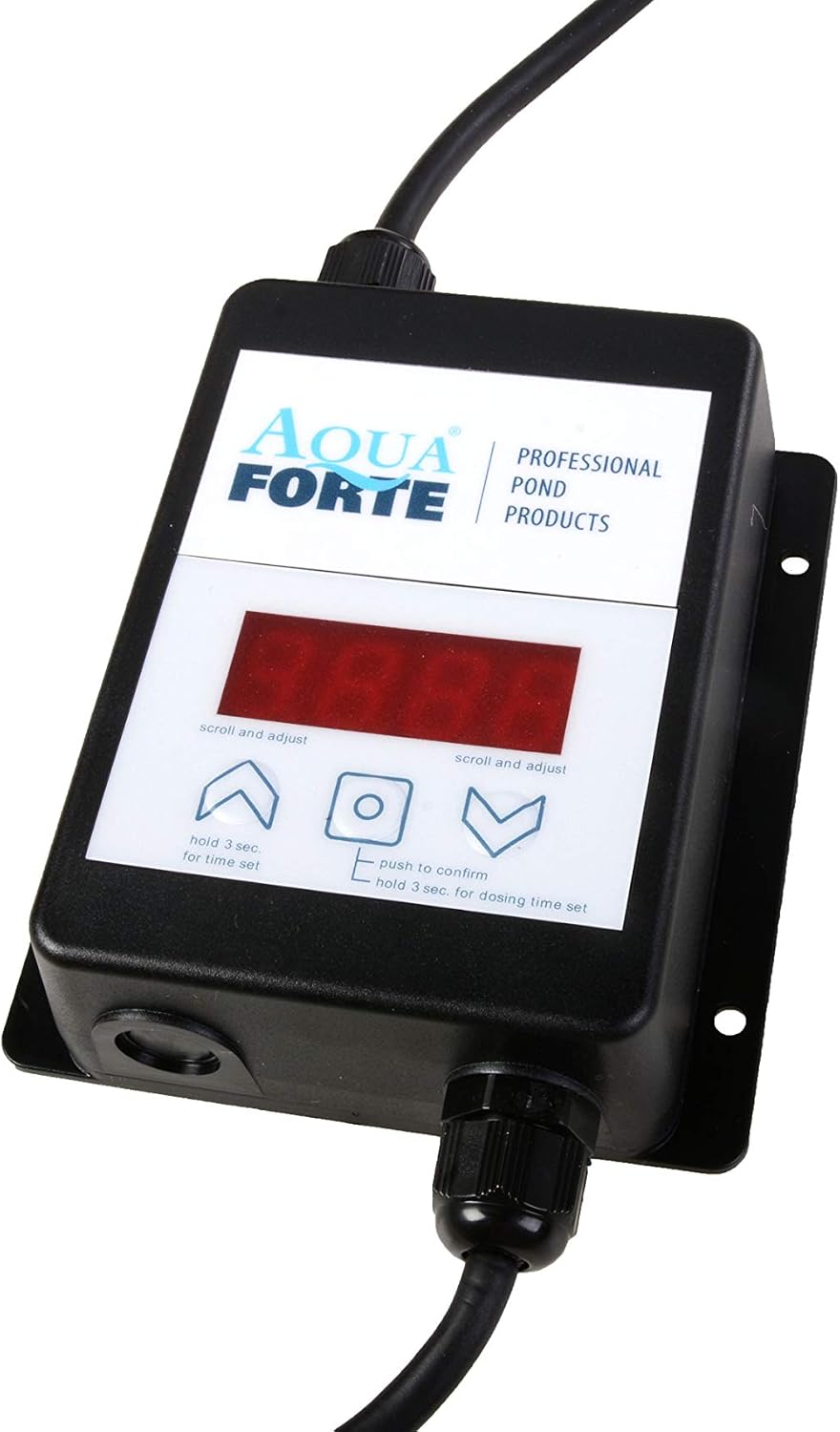

Image: The AquaForte Fish Feeder control unit, featuring a digital display and three control buttons for programming.
- Power Connection: Connect the power cable (9 meters long) from the control unit to a suitable outdoor power outlet. Ensure the connection is secure and protected from the elements.
Image: Multiple AquaForte Fish Feeders installed along the edge of a large pond, demonstrating typical outdoor setup.
Operating Instructions
The AquaForte Fish Feeder features an easily programmable timer for automated feeding.
- Setting Feeding Times: The control unit allows you to program 1 to 24 feeding times per day. Refer to the control unit's display and buttons for navigation. Typically, you will use the 'scroll and adjust' buttons to set the desired times.
- Adjusting Dosage Duration: For each feeding time, you can set the dosage duration between 0 and 60 seconds. A longer duration dispenses more food. Experiment to find the optimal amount for your fish and food type.
- Food Granule Size: The feeder is compatible with food granules from 2 mm to 9 mm. For granules smaller than 4 mm, a special disc is supplied and must be inserted into the feeder mechanism to ensure proper dispensing.
- External Automation: The feeder supports external automation, allowing one or more units to be controlled by an external system. Consult the external automation system's manual for integration details.
Maintenance
- Cleaning: The feeder unit is easy to clean. Use a damp cloth to wipe down the exterior and interior of the reservoir. Ensure the unit is dry before refilling with food.
- Motor Compartment: Regularly inspect the motor compartment for any signs of water ingress. While the unit is designed for outdoor use, prolonged exposure to harsh weather can affect seals over time. Always disconnect power before inspection or cleaning.
- UV Protection: The plastic components, especially the transparent parts, can become brittle over several years due to prolonged UV exposure. Consider positioning the feeder in a shaded area or providing additional UV protection to extend its lifespan.
- Winter Storage: During winter months or periods of non-use, it is recommended to store the feeder in a dry, warm environment to protect its electronic and mechanical components.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Food falls out continuously or unexpectedly. | Feeder is not level; food granules are too small without the correct disc; vibrations or wind. | Ensure the feeder is perfectly level. Verify food granule size and install the smaller granule disc if necessary. Secure the feeder to minimize vibrations. |
| Feeder does not dispense food. | No power; incorrect programming; food blockage. | Check power connection. Verify feeding schedule and dosage duration on the control unit. Clear any blockages in the dispensing mechanism. |
| Water found in motor compartment. | Inadequate protection from rain/water. | Ensure the control unit and motor area are adequately protected from direct water exposure. Consider an additional waterproof enclosure. Disconnect power and allow to dry thoroughly before re-use. |
| Plastic components becoming brittle. | Prolonged exposure to UV radiation. | Relocate the feeder to a shaded area or provide a cover to protect it from direct sunlight and UV rays. |
Specifications
- Brand: AquaForte
- Model Number: SK644
- Material: Plastic
- Capacity: 7 Litres
- Target Species: Fish (Koi, Pond Fish)
- Recommended Use: Outdoor
- Special Feature: Programmable Timer
- Power Source: AC/DC
- Operating Mode: Automatic
- Dimensions (L x W x H): 28 cm x 28 cm x 43 cm
- Weight: Approximately 6.34 lbs (2.88 kg)
- Power Cable Length: 9 meters
- Granule Size Compatibility: 2 mm to 9 mm
Image: Bottom view of the AquaForte Fish Feeder, displaying the product label with technical specifications such as power requirements and IP rating.
Warranty Information
The AquaForte Fish Feeder (Model SK644) comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use conditions. Please retain your proof of purchase for warranty claims. The warranty does not cover damage resulting from improper installation, misuse, lack of maintenance, or exposure to conditions beyond the product's intended use (e.g., unprotected exposure to water for the control unit).
Support
For further assistance, technical support, or warranty claims, please contact AquaForte customer service. Refer to the AquaForte official website or your purchase documentation for specific contact details.
