Ginger Dyad 24 Inch Towel Bar

1. Introduction

This manual provides detailed instructions for the proper installation, use, and maintenance of your Ginger Dyad 24 Inch Towel Bar, Model 5303/PN. Please read these instructions thoroughly before beginning installation to ensure a secure and lasting fixture.

The Ginger Dyad towel bar is designed to offer a modern aesthetic and functional towel storage solution for your bathroom. Crafted from solid brass with a polished nickel finish, it ensures durability and complements contemporary design.

2. Safety Information

• Always wear appropriate safety gear, such as safety glasses, during installation.
• Ensure the mounting surface is structurally sound and capable of supporting the towel bar and the weight of wet towels.
• Use the correct tools for the job to prevent damage to the product or injury.
• If drilling into walls, verify the absence of electrical wires or plumbing pipes using a stud finder or other detection tools.
• Keep small parts out of reach of children to prevent choking hazards.

3. Package Contents

Verify that all components are present before beginning installation:

• Towel Bar Assembly (1)
• Mounting Hardware (Screws, Wall Anchors, Mounting Brackets) (1 set)
• Hex Wrench (for set screws) (1)

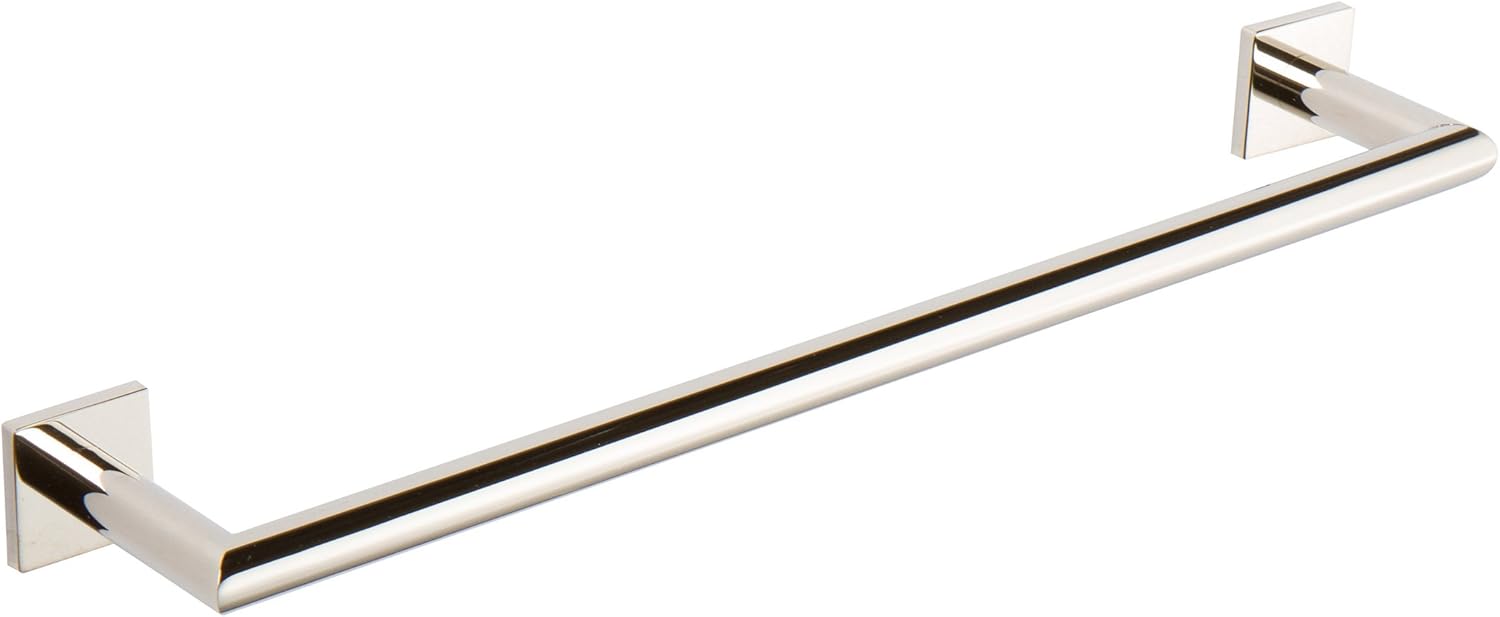

Figure 1: Ginger Dyad 24 Inch Towel Bar, Polished Nickel finish. This image displays the complete towel bar assembly, highlighting its sleek design and polished surface.

4. Setup and Installation

4.1 Tools Required (Not Included)

• Pencil
• Measuring Tape
• Level
• Drill
• Drill Bits (appropriate for wall anchors and screws)
• Phillips Head Screwdriver
• Stud Finder (recommended)

4.2 Installation Steps

1. Determine Mounting Location: Choose a suitable location on your wall, ensuring it is level and at the desired height. Use a pencil to mark the approximate positions for the mounting brackets.
2. Prepare Mounting Brackets: Separate the mounting brackets from the towel bar posts by loosening the set screws with the provided hex wrench.
3. Mark Drill Holes: Hold one mounting bracket against the wall at your desired location. Use a level to ensure it is straight. Mark the screw hole positions with a pencil. Repeat for the second mounting bracket, ensuring it is level with the first and at the correct distance (approximately 24 inches center-to-center for the 24-inch model). Refer to the product dimensions for precise spacing.
4. Drill Pilot Holes: Drill pilot holes at the marked locations. If drilling into drywall without a stud, use appropriate wall anchors. If drilling into a stud, pilot holes should be smaller than the screw diameter.
5. Attach Mounting Brackets: Secure the mounting brackets to the wall using the provided screws. Ensure they are firmly attached and level.
6. Attach Towel Bar: Slide the towel bar posts over the mounted brackets. Align the set screws with the indentations on the brackets.
7. Secure Towel Bar: Tighten the set screws on the underside of the towel bar posts using the hex wrench until the towel bar is firmly secured and does not wobble. Do not overtighten.

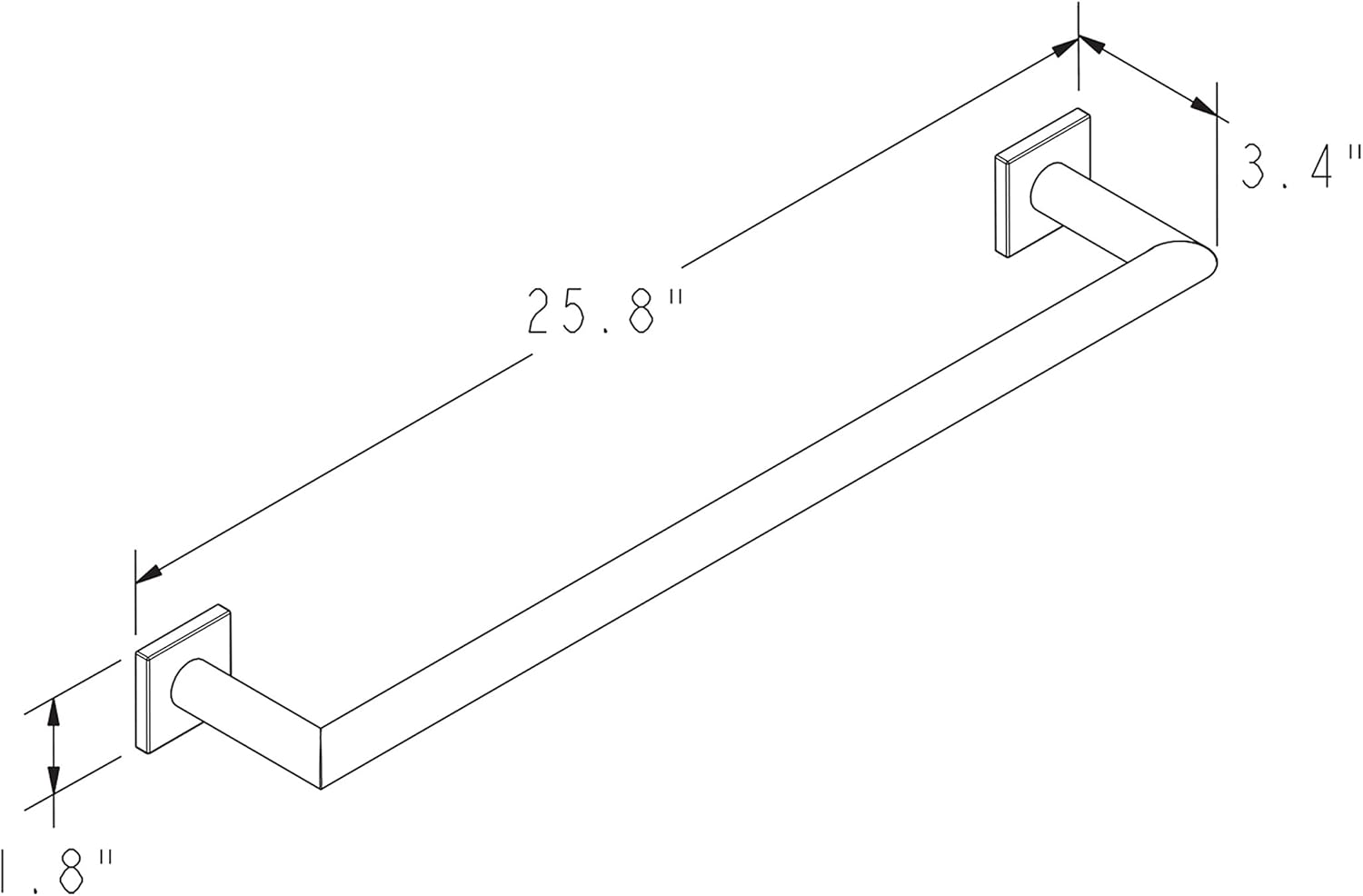

Figure 2: Dimensional drawing of the Ginger Dyad 24 Inch Towel Bar. This diagram illustrates the overall dimensions of the towel bar, including its length (25.8 inches), depth (3.4 inches), and height (1.8 inches), which are crucial for planning installation space.

5. Operating Instructions

The Ginger Dyad Towel Bar is designed for holding towels. Simply drape your towels over the bar. Its design facilitates air circulation, aiding in faster towel drying and maintaining bathroom organization.

6. Maintenance

To maintain the polished nickel finish and ensure the longevity of your towel bar:

• Clean regularly with a soft, damp cloth.
• Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
• For stubborn spots, use a mild soap solution and immediately rinse with clean water, then dry thoroughly with a soft cloth.
• Periodically check the mounting screws for tightness and re-tighten if necessary to ensure stability.

7. Troubleshooting

7.1 Towel Bar Feels Loose

• Check Set Screws: Ensure the set screws on the underside of the towel bar posts are fully tightened with the hex wrench.
• Check Mounting Brackets: If the set screws are tight but the bar still wobbles, the mounting brackets may not be securely fastened to the wall. Remove the towel bar, re-tighten the screws holding the brackets to the wall, and ensure appropriate wall anchors were used if not mounted into a stud.

7.2 Finish Discoloration or Damage

• Cleaning Products: Ensure you are using only mild, non-abrasive cleaners as specified in the Maintenance section. Harsh chemicals can damage the polished nickel finish.
• Environmental Factors: High humidity or exposure to certain chemicals (e.g., hairspray, cleaning sprays) can affect finishes over time. Regular cleaning helps mitigate this.

8. Specifications

9. Warranty and Support

The Ginger Dyad 24 Inch Towel Bar is backed by a limited lifetime warranty, ensuring quality and performance under normal use and service. For specific warranty details, claims, or technical support, please refer to the official Ginger website or contact their customer service department.

For further assistance, please visit the Ginger Store on Amazon or the manufacturer's official website.
