Benro GoPlus Travel Aluminum Tripod FGP18A Instruction Manual

Introduction

The Benro GoPlus Travel Aluminum Tripod FGP18A is designed for photographers and videographers seeking a compact, versatile, and stable support solution. This tripod features a unique pivoting center column, multi-angle leg adjustments, and a monopod conversion capability, making it suitable for various shooting scenarios from travel to macro photography. Constructed from durable aluminum, it offers reliability and portability.

What's in the Box

• Benro GoPlus Travel Aluminum Tripod FGP18A with 180° pivoting center column
• Padded carrying case
• Spiked feet (for varied terrain)
• Tools for adjustment and maintenance

Key Features

• GoPlus Pivoting Center Column: Adjusts 180° for overhead, low-angle, macro, and vertical shooting, expanding creative options.
• Aluminum Construction: Durable and lightweight aluminum alloy for reliable stability and portability.
• Multi-Angle Legs: Independently adjustable legs with three angle positions for stable setups on uneven surfaces and diverse shooting perspectives.
• Monopod Conversion: Easily converts into a full-size monopod by combining the center column with a detachable leg.
• Twist-Lock Legs: Ergonomic twist-lock mechanisms for quick extension and retraction, ensuring strong leg tension.
• Interchangeable Feet: Includes standard rubber feet and stainless steel spiked feet for stability on various terrains.
• Center Column Weight Hook: Provides additional stability by allowing attachment of a counterweight.
• Foam Grip: A thick foam grip on one leg allows for comfortable handling and carrying.

Setup

Unfolding the Tripod

To unfold the tripod, release the leg locks and extend the legs outwards. The legs can be set at three different angles by pressing the leg angle adjustment tabs located at the top of each leg. Ensure all leg sections are fully extended and twist-locked securely for maximum stability.

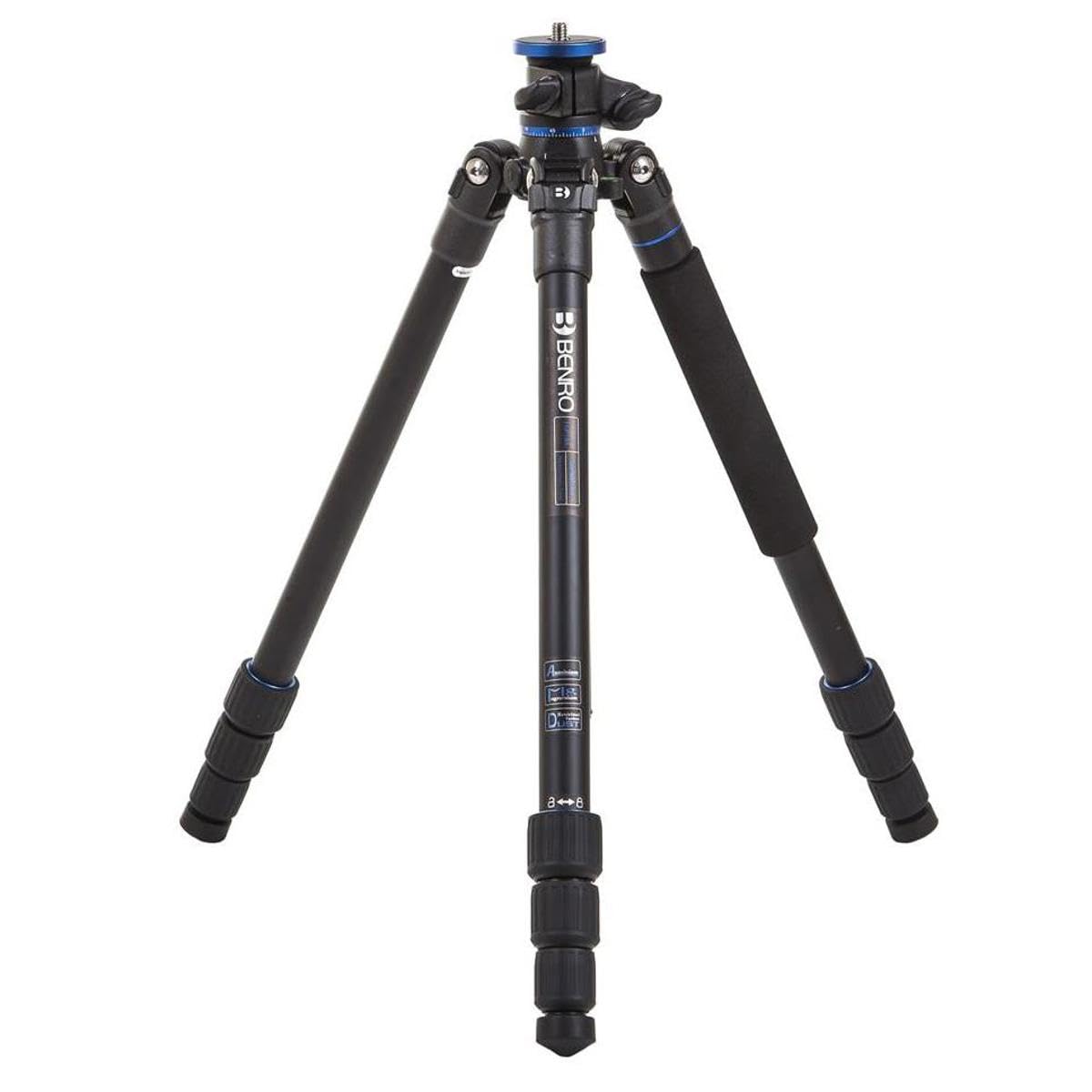

Image: The Benro GoPlus Travel Aluminum Tripod FGP18A in its fully extended position, ready for use.

Attaching a Camera Head

The tripod features a standard 3/8-inch mounting screw for attaching most camera heads. Ensure the head is securely tightened onto the center column platform.

Adjusting Leg Angles

Each leg can be independently adjusted to one of three preset angles. Press the angle lock tab at the top of the leg, move the leg to the desired position, and release the tab to lock it in place. This allows for stable positioning on uneven terrain or for low-angle shots.

Image: A close-up view of the tripod legs folded, showcasing the twist-lock design and compact travel configuration.

Operating Instructions

Pivoting Center Column

The GoPlus center column can be quickly flipped 90 degrees from vertical to horizontal without additional tools. To do this, loosen the center column locking knob, pull the column upwards slightly, pivot it to the horizontal position, and then push it back down to lock it. This feature is ideal for overhead shots, macro photography, or positioning your camera over a subject.

Image: The Benro tripod with its center column extended horizontally, demonstrating its versatility for unique camera angles.

Image: A camera mounted on the horizontal center column, positioned for macro photography over a subject.

Monopod Conversion

One of the tripod legs is detachable and can be combined with the center column to form a full-size monopod. To convert, unscrew the designated leg (often indicated by a foam grip), remove the center column, and then screw the center column onto the detached leg. This provides a lightweight and portable support option.

Image: The center column detached from the tripod, ready for monopod conversion or other specialized setups.

Using Spiked Feet

For enhanced stability on soft ground, ice, or uneven outdoor surfaces, replace the standard rubber feet with the included stainless steel spiked feet. Simply unscrew the rubber feet and screw in the spiked feet. Ensure they are tightened securely before use.

Adding Stability with Weight Hook

For increased stability, especially in windy conditions or when using heavy equipment, utilize the weight hook located at the bottom of the center column. Attach a camera bag or other suitable weight to the hook.

Official Product Video: Benro SystemGo Plus Tripod

Maintenance

• Cleaning: After use, especially in dusty or sandy environments, wipe down the tripod legs and joints with a soft, damp cloth. Avoid harsh chemicals.
• Lubrication: Periodically check leg locks and moving parts for smooth operation. If necessary, apply a small amount of silicone-based lubricant to ensure smooth movement.
• Storage: Store the tripod in its padded carrying case in a dry, cool place to protect it from dust and moisture.
• Inspection: Regularly inspect all screws, bolts, and connections to ensure they are tight. Use the provided tools for any adjustments.

Troubleshooting

• Tripod Instability: Ensure all leg sections are fully extended and twist-locked. Verify that leg angles are properly engaged. Use the weight hook with a counterweight if needed.
• Stiff Leg Locks: If leg locks become stiff, clean them thoroughly to remove any dirt or debris. A small amount of silicone lubricant can also help.
• Center Column Not Pivoting Smoothly: Check for any obstructions and ensure the locking knob is fully loosened before attempting to pivot. Clean the mechanism if necessary.
• Monopod Not Assembling: Ensure the correct leg is detached and that the center column is properly aligned and screwed onto the leg.

Specifications

Warranty and Support

The standard limited warranty for this product is 3 years from the date of purchase for the original owner. If you register the product online, the warranty is extended by 2 additional years, for a total of 5 years, in applicable regions. For further support or warranty claims, please refer to the official Benro website or contact their customer service.
