1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Junkers Hydro Battery W6-2 KB Gas Butane Indoor Water Heater. Please read this manual thoroughly before installation and use, and keep it for future reference. This appliance is designed to provide hot water for domestic use.
2. Important Safety Information
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.
- Installation and service must be performed by a qualified installer, service agency, or gas supplier.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- Ensure adequate ventilation in the installation area.
- Never obstruct the air inlets or outlets of the appliance.
- If you smell gas, immediately shut off the gas supply, open windows, and evacuate the area. Do not operate electrical switches or phones. Contact your gas supplier.

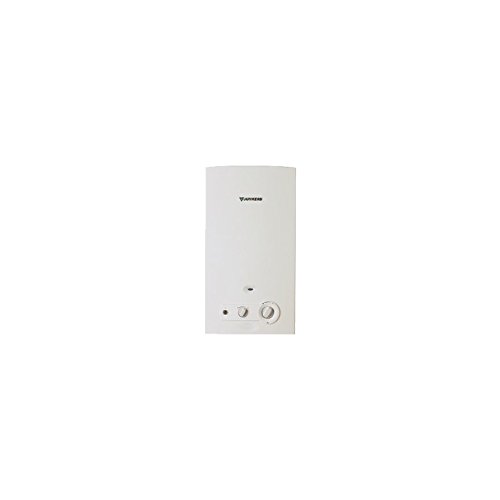

Figure 1: Front view of the Junkers Hydro Battery W6-2 KB Gas Butane Indoor Water Heater. This image shows the compact design of the water heater, typically mounted on a wall, with connections for water and gas visible at the bottom.
3. Setup and Installation
The installation of the Junkers Hydro Battery W6-2 KB water heater requires professional expertise due to its connection to gas and water lines. It is strongly recommended that installation be carried out by a certified technician.
3.1. Choosing an Installation Location
- Install indoors only, in a well-ventilated area.
- Avoid areas with corrosive fumes or flammable materials.
- Ensure easy access for maintenance and servicing.
- The appliance dimensions are approximately 21 x 35 x 69 cm. Allow sufficient clearance around the unit.
3.2. Gas and Water Connections
All gas and water connections must comply with local regulations and standards. Use appropriate sealing materials and ensure all connections are leak-free.
3.3. Flue Gas Exhaust
Proper venting of combustion products is critical. The flue system must be correctly installed to ensure safe operation and prevent carbon monoxide buildup.
4. Operating Instructions
Once installed and checked by a qualified technician, your water heater is ready for operation.
4.1. Initial Startup
- Ensure the gas supply valve is open.
- Open a hot water tap to allow water to flow through the unit. The water heater will automatically ignite when sufficient water flow is detected.
- Observe the flame through the viewing window (if present) to confirm ignition.
4.2. Temperature Adjustment
The water heater typically features a control knob or dial for adjusting the water temperature. Rotate the knob to increase or decrease the desired hot water temperature. Refer to the markings on the appliance for specific settings.
4.3. Shutting Down the Appliance
To temporarily shut down the water heater, simply close all hot water taps. For extended periods of non-use or maintenance, close the main gas supply valve to the appliance.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your Junkers water heater. It is recommended to have the appliance inspected annually by a qualified service technician.
5.1. Cleaning the Exterior
Clean the exterior casing with a soft, damp cloth. Do not use abrasive cleaners or solvents.
5.2. Professional Inspection
A qualified technician should perform the following checks:
- Check for gas leaks.
- Inspect the flue system for blockages or damage.
- Clean the burner and heat exchanger.
- Verify proper operation of safety devices.
6. Troubleshooting
This section provides solutions to common issues. For problems not listed here or if solutions do not resolve the issue, contact a qualified service technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| No hot water. | Gas supply off, no water flow, battery depleted (if applicable). | Check gas valve. Ensure water tap is fully open. Replace batteries if the unit uses them for ignition. |
| Water not hot enough. | Temperature setting too low, insufficient gas pressure. | Adjust temperature control. Contact gas supplier if pressure is suspected. |
| Pilot light (if present) goes out. | Draft, dirty pilot, thermocouple issue. | Ensure proper ventilation. Contact technician for cleaning or replacement. |
7. Technical Specifications
| Feature | Detail |
|---|---|
| Model Number | Hydro Battery W6-2 KB |
| Manufacturer | Junkers |
| Product Dimensions | 21 x 35 x 69 cm |
| Product Weight | 5 kg |
| Fuel Type | Butane Gas |
| Installation Type | Indoor |
| ASIN | B01HIA7584 |
8. Warranty and Support
For specific warranty details, please refer to the warranty card included with your product or contact your local Junkers dealer or customer service. Keep your proof of purchase for warranty claims.
For technical support, service, or spare parts, please contact an authorized Junkers service center. Always provide the model number (Hydro Battery W6-2 KB) and serial number of your appliance when seeking assistance.
