CCLIFE 9-Piece Hose Clamp Pliers Set

Introduction

This instruction manual provides essential information for the safe and effective use of your CCLIFE 9-piece hose clamp pliers set. This comprehensive kit is designed for the installation and removal of various types of hose clamps found in automotive and other mechanical applications. Please read this manual thoroughly before initial use and retain it for future reference.

Image: The CCLIFE 9-piece hose clamp pliers set neatly organized within its durable blue storage case.

Product Components

The CCLIFE 9-piece hose clamp pliers set includes the following tools, designed for specific applications:

Image: An overview of the complete 9-piece kit, illustrating each tool and its designated name for easy identification.

• Flexible Hose Clamp Pliers: Features a flexible cable for accessing clamps in confined spaces.
• Dual-Headed Screwdriver: A versatile screwdriver with both Phillips and flat-head tips for various screw clamps.
• Hose Removal Hook: Designed to assist in detaching stubborn hoses.
• Cross Slotted Jaw Plier: For specific clamp types requiring a cross-slotted grip.
• Flat Band Hose Clamp Plier: Used for standard flat band hose clamps.
• Clic-R Collar Plier: Specifically for Clic-R type hose clamps.
• Hose Removal Plier: General purpose pliers for hose removal.
• Angled Flat Band Hose Clamp Plier: Provides an angled approach for flat band clamps in difficult positions.
• Swivel Flat Band Hose Clamp Plier: Features a swivel jaw for enhanced access and grip on flat band clamps.

Setup

1. Unpack the Kit: Carefully remove all tools from the storage case.
2. Inspect Tools: Before each use, visually inspect all pliers and accessories for any signs of damage, wear, or deformation. Do not use damaged tools.
3. Identify Clamp Type: Determine the type of hose clamp you need to work with (e.g., screw clamp, spring clamp, ear clamp, Clic-R clamp) to select the appropriate tool from the set.

Image: The kit is compatible with various clamp types, including screw clamps, spring clamps, and ear clamps, ensuring wide applicability.

Operating Instructions

Always wear appropriate personal protective equipment, such as safety glasses and gloves, when working with tools and automotive components.

Using Flexible Hose Clamp Pliers

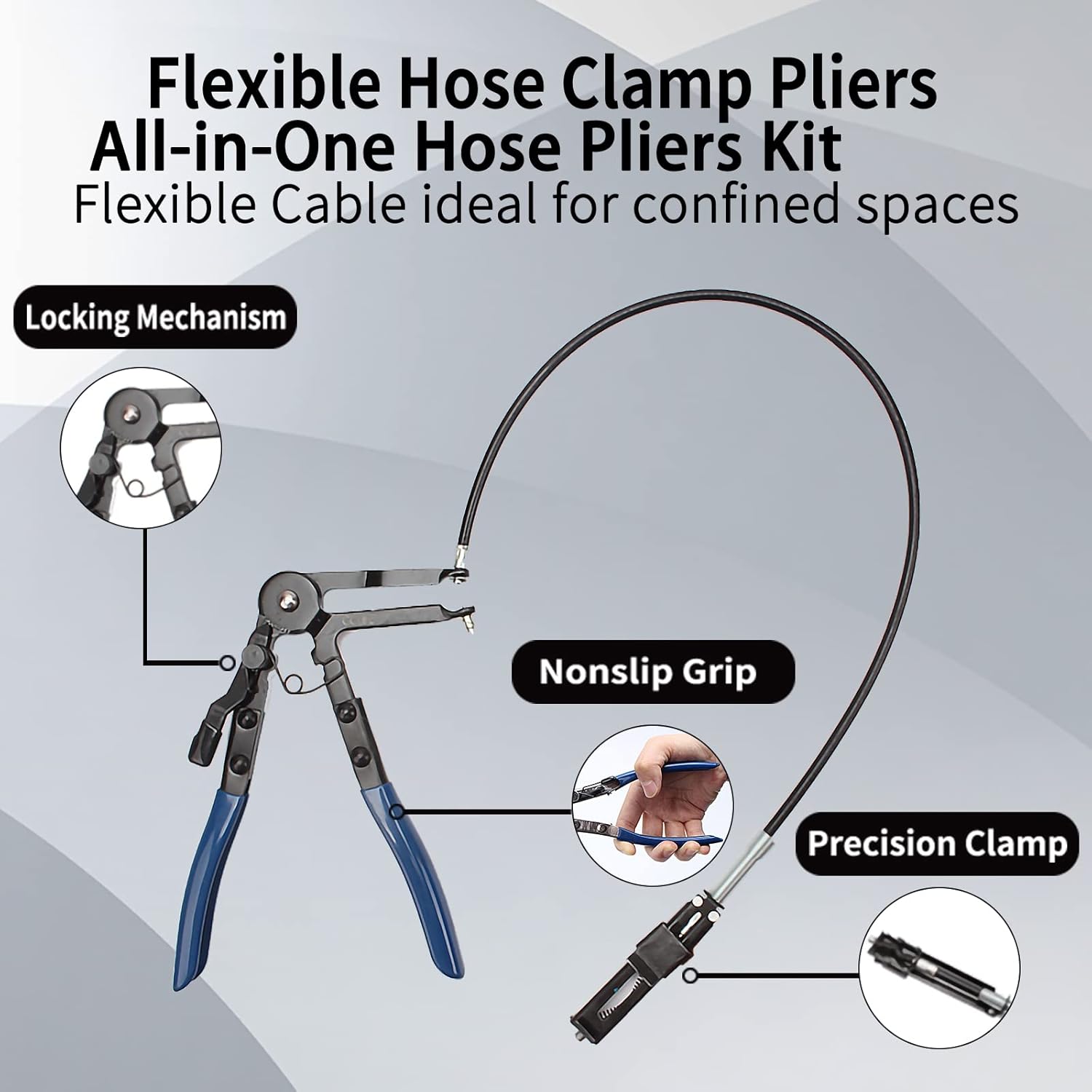

Image: Close-up of the flexible hose clamp pliers, highlighting its locking mechanism for sustained pressure, non-slip grip for secure handling, and precision clamp for effective operation.

1. Access: Position the flexible cable and clamp head around the hose clamp in hard-to-reach areas.
2. Compress: Squeeze the handles to compress the clamp. The non-slip grip ensures secure handling.
3. Lock: Engage the locking mechanism to hold the clamp in an open position, allowing for hands-free work.
4. Release: Once the hose is removed or installed, disengage the locking mechanism to release the clamp.

Using Dual-Headed Screwdriver

Image: The dual-headed screwdriver shown with its interchangeable Phillips and flat-head tips, suitable for various screw-type hose clamps.

1. Select Tip: Choose the appropriate tip (Phillips or flat-head) for the screw clamp. The screwdriver is reversible.
2. Loosen/Tighten: Insert the tip into the screw head and turn to loosen or tighten the clamp as required.

General Pliers Use

• Select the specific pliers (e.g., Flat Band, Angled Flat Band, Swivel Flat Band, Clic-R) that match the design of the hose clamp you are working with.
• Position the jaws of the pliers securely on the clamp.
• Apply even pressure to the handles to compress or expand the clamp.
• Use the hose removal hook or pliers to gently pry off hoses once clamps are loosened.

Maintenance

Proper maintenance ensures the longevity and performance of your tools.

1. Cleaning: After each use, wipe down all tools with a clean cloth to remove dirt, grease, and fluids.
2. Lubrication: Periodically apply a light coat of machine oil to moving parts and pivot points to ensure smooth operation and prevent rust.
3. Storage: Store the tools in their original blue storage case in a dry environment to protect them from moisture and damage.
4. Corrosion Protection: Each pair of pliers is heat-treated for durability and blackened to prevent corrosion. Maintain this coating by keeping tools clean and dry.

Image: Detail of a plier jaw, illustrating the heat-treated and blackened protective coating designed to enhance durability and prevent corrosion.

Troubleshooting

• Difficulty Gripping Clamp: Ensure you are using the correct type of pliers for the specific clamp. Clean any grease or debris from the clamp and plier jaws.
• Pliers Slipping: Verify that the jaws are fully engaged with the clamp. Avoid excessive force that could cause slippage. If the tool is worn, consider replacement.
• Stiff Operation: Lubricate moving parts with machine oil. If stiffness persists, check for bent components or debris.
• Hose Difficult to Remove: After loosening the clamp, use the hose removal hook or pliers to gently twist and pull the hose. Do not apply excessive force that could damage the hose or fitting.

Specifications

Warranty and Support

For warranty information or technical support regarding your CCLIFE 9-piece hose clamp pliers set, please refer to the documentation included with your purchase or contact CCLIFE customer service directly. Keep your proof of purchase for warranty claims.
