Waring Commercial BB155 Basic Bar Countertop Blender User Manual

Product Overview

The Waring BB155 3/4 HP bar blender with 2-speed, toggle-switch control and 44-oz. copolyester container is designed for light beverage preparation, including frozen drinks and margaritas. It is suitable for environments requiring up to 25 drinks daily.

Image: Waring Commercial BB155 Basic Bar Countertop Blender with 44 oz. co-polyester container.

Key Features:

• 44 oz., dishwasher-safe, BPA-free copolyester container
• Rugged, two-piece stainless steel cutting blade
• User-replaceable, metal-reinforced rubber drive coupling
• Made in the USA with US and foreign parts.
• cULus, NSF certified

Setup

1. Unpacking: Carefully remove all components from the packaging. Retain packaging for future storage or shipping.
2. Placement: Place the blender base on a stable, dry, and level surface. Ensure adequate ventilation around the unit.
3. Container Assembly:
   • Ensure the two-piece stainless steel cutting blade and rubber gasket are correctly assembled and secured to the bottom of the container.
   • Place the container onto the motor base, ensuring it is seated firmly.
4. Power Connection: Plug the blender into a grounded electrical outlet. Verify the voltage matches the blender's requirements (120V).

Operating Instructions

General Operation:

1. Add Ingredients: Place desired ingredients into the 44 oz. co-polyester container. Do not overfill past the maximum fill line.
2. Secure Lid: Place the lid firmly onto the container. The lid features a measuring cup insert that can be removed to add ingredients while blending.
3. Select Speed: Use the toggle switch on the blender base to select the desired speed:
   • "LO" (Low): For lighter blending tasks.
   • "HI" (High): For more intensive blending, such as crushing ice or making frozen drinks.
4. Start Blending: Move the toggle switch to "LO" or "HI" to begin blending.
5. Stop Blending: Return the toggle switch to the "OFF" position to stop the blender.
6. Adding Ingredients During Blending: If necessary, remove the measuring cup insert from the lid to add additional ingredients while the blender is operating. Replace the insert immediately after adding.

Maintenance

Cleaning:

1. Disconnect Power: Always unplug the blender from the power outlet before cleaning.
2. Disassemble Container:
   • Remove the container from the motor base.
   • Invert the container and unscrew the collar at the bottom.
   • Carefully remove the blade and gasket assembly. Exercise caution as blades are sharp.
   • Separate the rubber gasket from the blade.
3. Wash Components:
   • The 44 oz. co-polyester container is dishwasher-safe.
   • Hand wash the blade assembly, gasket, and lid with warm, soapy water. Rinse thoroughly.
4. Clean Motor Base: Wipe the motor base with a damp cloth. Do not immerse the motor base in water.
5. Dry and Reassemble: Ensure all parts are completely dry before reassembling. Reassemble the blade and gasket, then secure the collar onto the container.

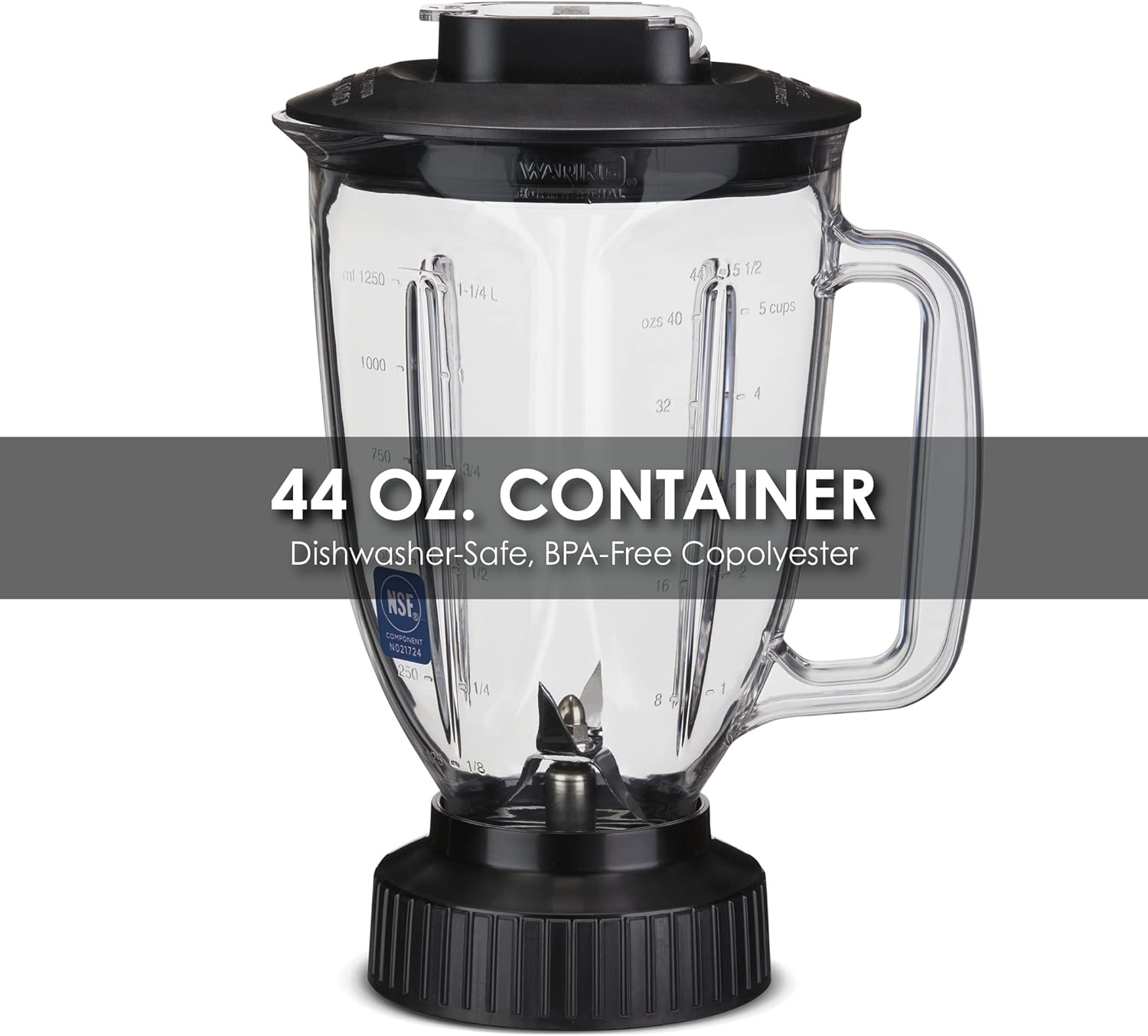

Image: The 44 oz. co-polyester container, which is dishwasher-safe and BPA-free.

Image: Close-up of the rugged, two-piece stainless steel cutting blade.

Image: The user-replaceable, metal-reinforced rubber drive coupling.

Troubleshooting

Specifications

Image: Diagram showing the dimensions of the Waring BB155 blender, approximately 13.88 inches tall.

Warranty and Support

This Waring Commercial BB155 blender comes with a 1 Year Limited Warranty. Additionally, a 2-year motor warranty is provided, guaranteeing reliable performance.

For technical support, service, or warranty claims, please contact Waring Commercial customer service. Refer to the official Waring Commercial website for the most up-to-date contact information and detailed warranty terms.
