Invicta Men's 22235 Speedway Quartz Chronograph Watch Instruction Manual

Introduction

This manual provides detailed instructions for the proper setup, operation, and maintenance of your Invicta Men's 22235 Speedway Quartz Chronograph Watch. Please read this manual thoroughly to ensure optimal performance and longevity of your timepiece. Keep this manual for future reference.

Product Overview

The Invicta 22235 Speedway is a robust men's chronograph watch featuring a precise quartz movement. It is designed with a durable stainless steel case, a black dial with multi-dial analog display, and a comfortable silicone band. Key features include a date function and 100-meter water resistance, making it suitable for various activities.

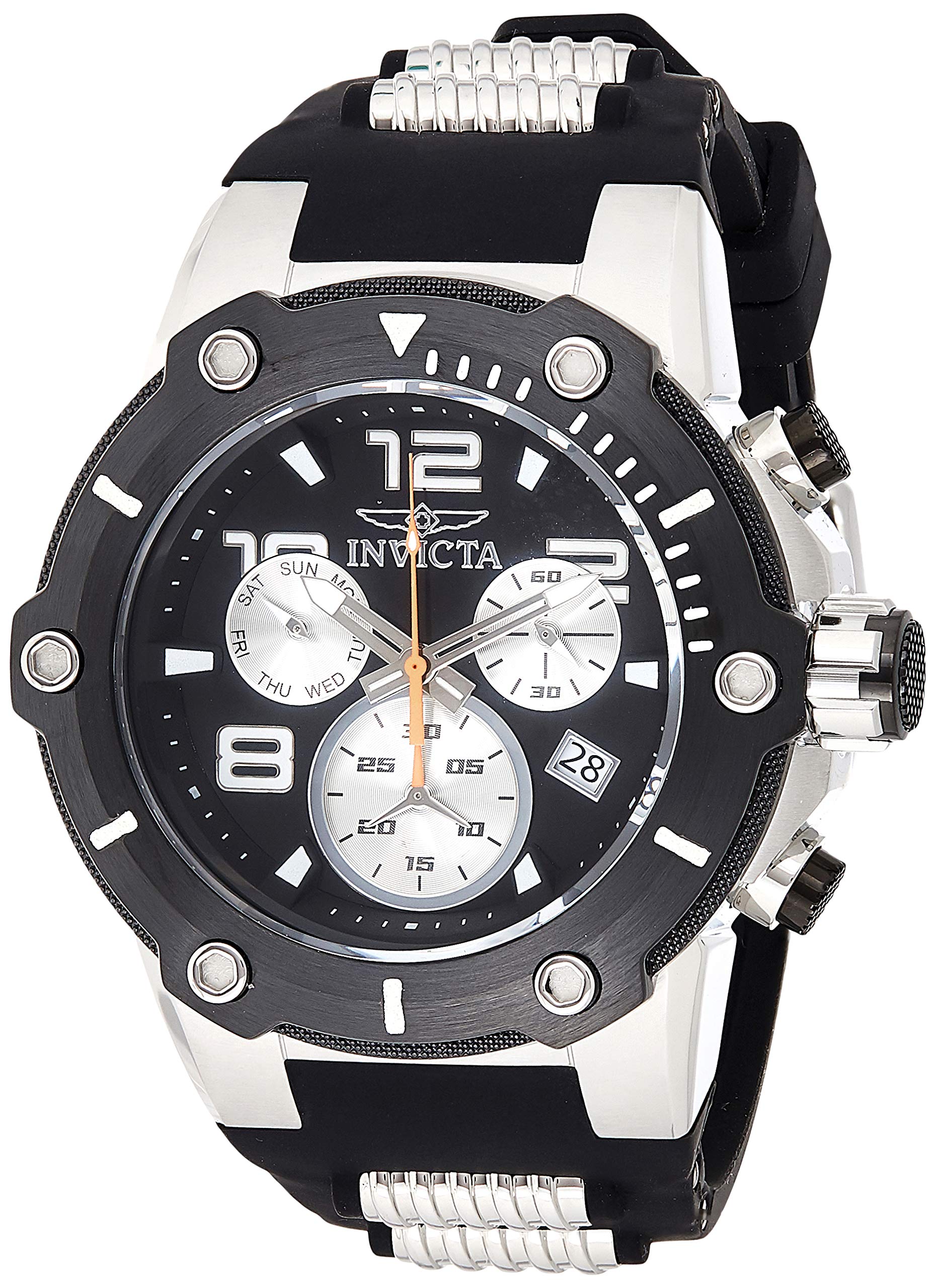

Figure 1: Front view of the Invicta 22235 Speedway watch, showcasing the black dial, chronograph sub-dials, and stainless steel case.

Components:

• Crown: Used for setting time and date.
• Pushers (A & B): Used for operating the chronograph functions.
• Bezel: Fixed stainless steel bezel.
• Dial: Black dial with luminous hands and markers, and three chronograph sub-dials.
• Date Window: Displays the current date.
• Case: Stainless steel case with a screw-down crown for enhanced water resistance.
• Band: Black silicone band with a tang buckle clasp.
• Crystal: Flame Fusion crystal for scratch resistance.

Figure 2: Side view illustrating the crown and chronograph pushers (A and B).

Setup

1. Setting the Time:

1. Unscrew the crown (if applicable) and pull it out to position 2 (the outermost position).
2. Rotate the crown to move the hour and minute hands clockwise until the desired time is set. Ensure AM/PM is correctly observed if setting the date.
3. Push the crown back to position 0 (normal operating position) and screw it down firmly to maintain water resistance.

2. Setting the Date:

1. Unscrew the crown (if applicable) and pull it out to position 1 (the middle position).
2. Rotate the crown clockwise or counter-clockwise (depending on the movement) until the correct date appears in the date window. Avoid setting the date between 9 PM and 3 AM, as this can damage the movement.
3. Push the crown back to position 0 and screw it down firmly.

3. Adjusting the Band:

The silicone band is designed for comfort. To adjust, simply use the tang buckle to find the most comfortable fit on your wrist. Ensure the watch is snug but not overly tight to allow for proper circulation.

Figure 3: The Invicta 22235 watch displayed on a wrist, demonstrating typical wear.

Operating Instructions

1. Basic Timekeeping:

Once the time and date are set, the watch will continuously display the current time. The quartz movement ensures accurate timekeeping with minimal deviation.

2. Using the Chronograph:

The chronograph function allows for precise measurement of elapsed time.

1. Start: Press pusher A (top pusher) to start the chronograph. The chronograph second hand will begin to move.
2. Stop: Press pusher A again to stop the chronograph. The elapsed time will be indicated by the chronograph hands.
3. Reset: After stopping the chronograph, press pusher B (bottom pusher) to reset all chronograph hands to their zero positions.
4. Split Time (if applicable): Some chronographs allow for split time measurement. Consult the specific movement manual if this feature is desired.

3. Water Resistance:

This watch is water resistant to 100 meters (330 feet). This rating makes it suitable for swimming and snorkeling, but not for diving. Ensure the crown is always fully screwed down before exposing the watch to water. Do not operate the crown or pushers while the watch is wet or submerged.

Maintenance

1. Cleaning:

Wipe the watch regularly with a soft, dry cloth to remove dust and dirt. For the silicone band, a mild soap and water solution can be used, followed by thorough rinsing and drying. Avoid harsh chemicals or abrasive materials.

2. Battery Replacement:

The watch is powered by a quartz battery. When the battery runs low, the second hand may start to skip seconds (End-of-Life indicator). Battery replacement should be performed by a qualified watch technician to ensure proper sealing and maintain water resistance. Incorrect battery replacement can damage the movement and compromise water resistance.

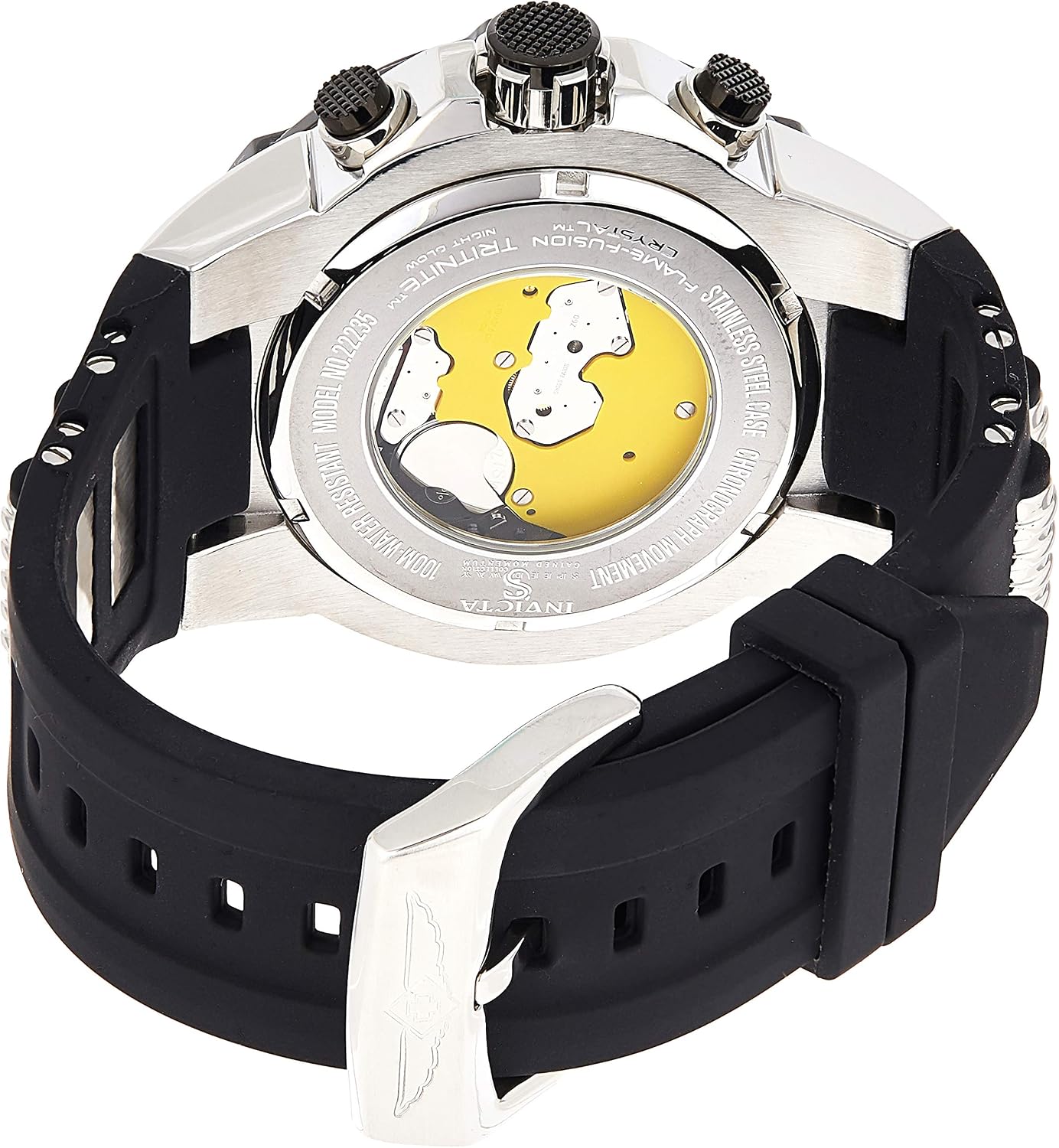

Figure 4: Rear view of the watch, showing the stainless steel case back. Battery access is typically through this panel.

3. Water Resistance Seals:

Over time, the gaskets that ensure water resistance can degrade. It is recommended to have the water resistance seals checked and replaced by a professional watchmaker every 2-3 years, especially if the watch is frequently exposed to water.

4. Storage:

When not in use, store your watch in a cool, dry place away from direct sunlight and extreme temperatures. The original packaging (see Figure 5) can provide suitable protection.

Figure 5: The Invicta watch packaging box, suitable for storage.

Troubleshooting

Specifications

Figure 6: Detailed view of the watch face and case, highlighting the chronograph sub-dials and date window.

Figure 7: General watch size guide for reference. The Invicta 22235 has a 52mm case diameter.

Warranty Information

Invicta watches typically come with a manufacturer's warranty covering defects in materials and workmanship. The duration and terms of the warranty may vary by region and purchase date. Please refer to the warranty card included with your watch or visit the official Invicta website for detailed warranty information and registration procedures.

Support

For further assistance, technical support, or service inquiries regarding your Invicta 22235 Speedway watch, please contact Invicta customer service. Contact details can usually be found on the official Invicta website or on your warranty documentation. When contacting support, please have your watch model number (22235) and purchase information readily available.
