1. Product Overview
The HAGO 3.75 GPH 45 Degree P Solid Nozzle is engineered for applications requiring a precise, solid cone spray pattern. This durable nozzle is designed for consistent performance and efficient fluid delivery.

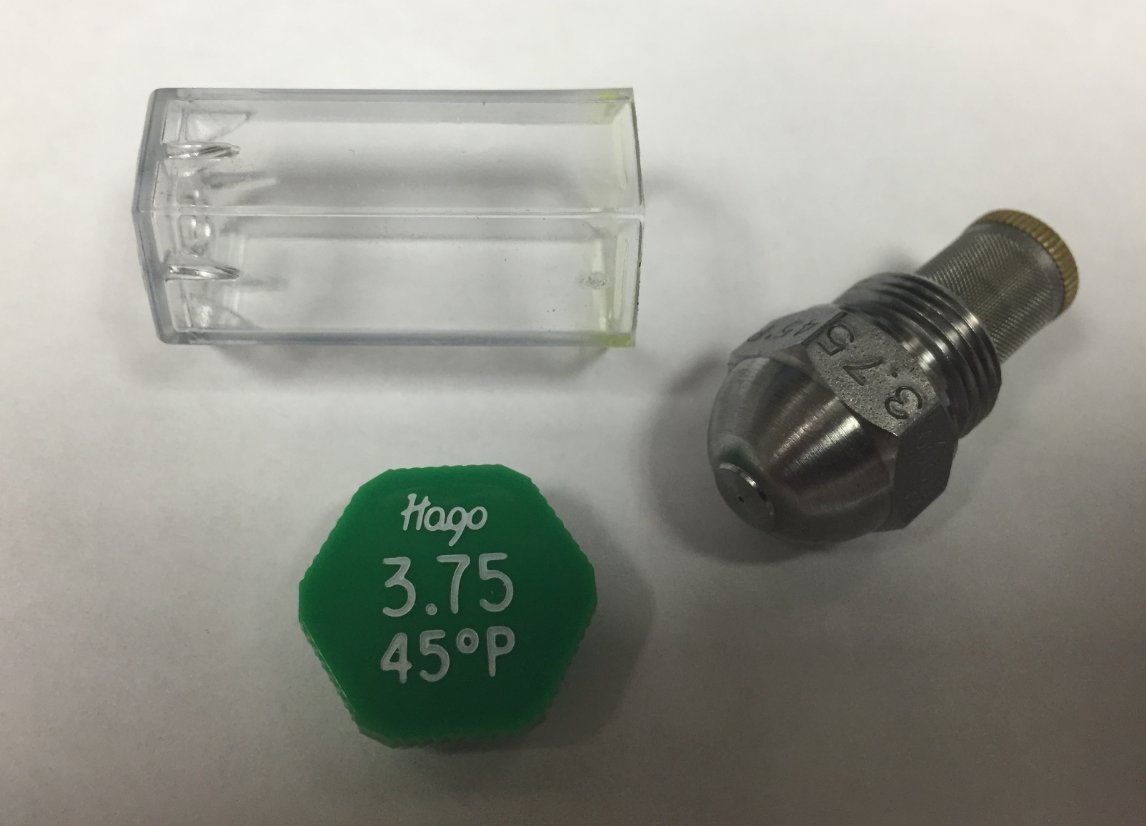

This image displays the HAGO 3.75 GPH 45 Degree P Solid Nozzle. The main component is a metallic nozzle with '3.75' and '45' etched on its side, indicating its flow rate and spray angle. A fine mesh filter is visible at the threaded end. Alongside the nozzle, there is a clear, rectangular plastic protective case. Also present is a green hexagonal piece, likely an identification tag, with 'Hago', '3.75', and '45°P' printed in white.
Components:
- Solid Nozzle: The primary component responsible for fluid atomization and spray pattern formation.
- Protective Case: A clear plastic case designed to protect the nozzle during storage and transport.
- Identification Tag: A green hexagonal tag indicating the brand (Hago), flow rate (3.75), and spray angle (45°P).
2. Setup and Installation
Proper installation is crucial for optimal performance and safety. Always ensure the system is depressurized before beginning installation.
- System Preparation: Ensure the fluid system is clean and free of debris that could clog the nozzle. Flush the lines if necessary.
- Nozzle Placement: Identify the correct location for the nozzle within your system.
- Thread Engagement: Carefully thread the nozzle into the receiving port. Ensure it is aligned correctly to prevent cross-threading.
- Tightening: Hand-tighten the nozzle until snug. Use an appropriate wrench for a final quarter to half turn, ensuring a secure, leak-free seal. Do not overtighten, as this can damage the nozzle or the port.
- Leak Check: After installation, slowly pressurize the system and check for any leaks around the nozzle connection. Tighten slightly if necessary.
3. Operating Instructions
The HAGO 3.75 GPH 45 Degree P Solid Nozzle is designed to produce a consistent solid cone spray pattern at its rated flow and pressure.
- Fluid Compatibility: Ensure the fluid being sprayed is compatible with the nozzle's materials to prevent corrosion or degradation.
- Operating Pressure: Operate the nozzle within the recommended pressure range for your system to achieve the specified flow rate (3.75 GPH) and 45-degree solid spray pattern. Consult your system's specifications for optimal pressure settings.
- Monitoring: Periodically observe the spray pattern during operation to ensure it remains consistent and free of irregularities, which may indicate a partial clog or wear.
4. Maintenance
Regular maintenance extends the life of your nozzle and ensures continued optimal performance.
- Cleaning: If the nozzle becomes clogged or the spray pattern is irregular, remove it from the system. Clean the nozzle orifice and internal passages using a soft brush and a suitable cleaning solution. Avoid using metal objects or abrasive materials that could damage the orifice.
- Inspection: Periodically inspect the nozzle for signs of wear, corrosion, or damage. Pay close attention to the orifice and the threaded connections.
- Storage: When not in use, store the nozzle in its protective case in a clean, dry environment to prevent damage and contamination.
5. Troubleshooting
If you encounter issues with your nozzle, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced flow or no spray | Clogged orifice or internal passages. | Remove and clean the nozzle. Check for debris in the fluid system. |
| Irregular or distorted spray pattern | Partially clogged orifice, damaged orifice, or incorrect operating pressure. | Clean the nozzle. Inspect the orifice for damage; replace if necessary. Verify system pressure. |
| Leakage at connection point | Loose connection, damaged threads, or missing/damaged seal. | Ensure the nozzle is properly tightened. Inspect threads for damage. Check for presence and condition of any required seals or gaskets. |
6. Specifications
| Attribute | Value |
|---|---|
| Brand | Delavan |
| Manufacturer | HAGO |
| Model Numbers | 37545P, 28360, 030G3467 |
| Spray Pattern | Solid Cone |
| Spray Angle | 45 Degrees |
| Flow Rate | 3.75 GPH (Gallons Per Hour) |
| Item Weight | 0.01 ounces |
| UPC | 730284178996 |
| ASIN | B01H46YW2E |
| Date First Available | June 15, 2016 |
7. Warranty and Support
Specific warranty information for the HAGO 3.75 GPH 45 Degree P Solid Nozzle is not provided in the product details. For warranty inquiries, technical support, or replacement parts, please contact the manufacturer, HAGO, or the brand, Delavan, directly through their official customer service channels.
It is recommended to retain your purchase receipt as proof of purchase for any warranty claims.
