1. Introduction
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Yato YT-82930 Cordless Impact Wrench. Please read these instructions carefully before using the tool and keep them for future reference. This impact wrench is designed for tightening and loosening nuts and bolts, offering high torque and portability.
Image: Front view of the Yato YT-82930 Cordless Impact Wrench, showcasing its red and black design with the Yato logo.
2. Safety Instructions
Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury when using power tools.
- Work Area Safety: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Electrical Safety: Avoid body contact with earthed or grounded surfaces. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Personal Safety: Always wear eye protection. Use hearing protection when operating the tool for extended periods. Dress properly; avoid loose clothing or jewelry that can get caught in moving parts.
- Tool Use and Care: Do not force the power tool. Use the correct power tool for your application. Disconnect the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
- Battery Pack Use and Care: Recharge only with the charger specified by the manufacturer. Do not use battery packs with any other power tools. When the battery pack is not in use, keep it away from other metal objects.
3. Package Contents
Verify that all items are present upon unpacking. The Yato YT-82930 Cordless Impact Wrench package typically includes:
- Yato YT-82930 Cordless Impact Wrench
- 18V Lithium-ion Battery Pack
- Battery Charger
- Socket Set (various sizes)
- Carrying Case
- Instruction Manual
Image: The Yato YT-82930 Cordless Impact Wrench, battery, charger, and sockets neatly arranged within its black carrying case.
4. Setup
4.1 Charging the Battery
Before first use, fully charge the battery pack. Connect the charger to a power outlet and insert the battery pack into the charger. The charging indicator light will show the charging status. A full charge takes approximately 120 minutes.

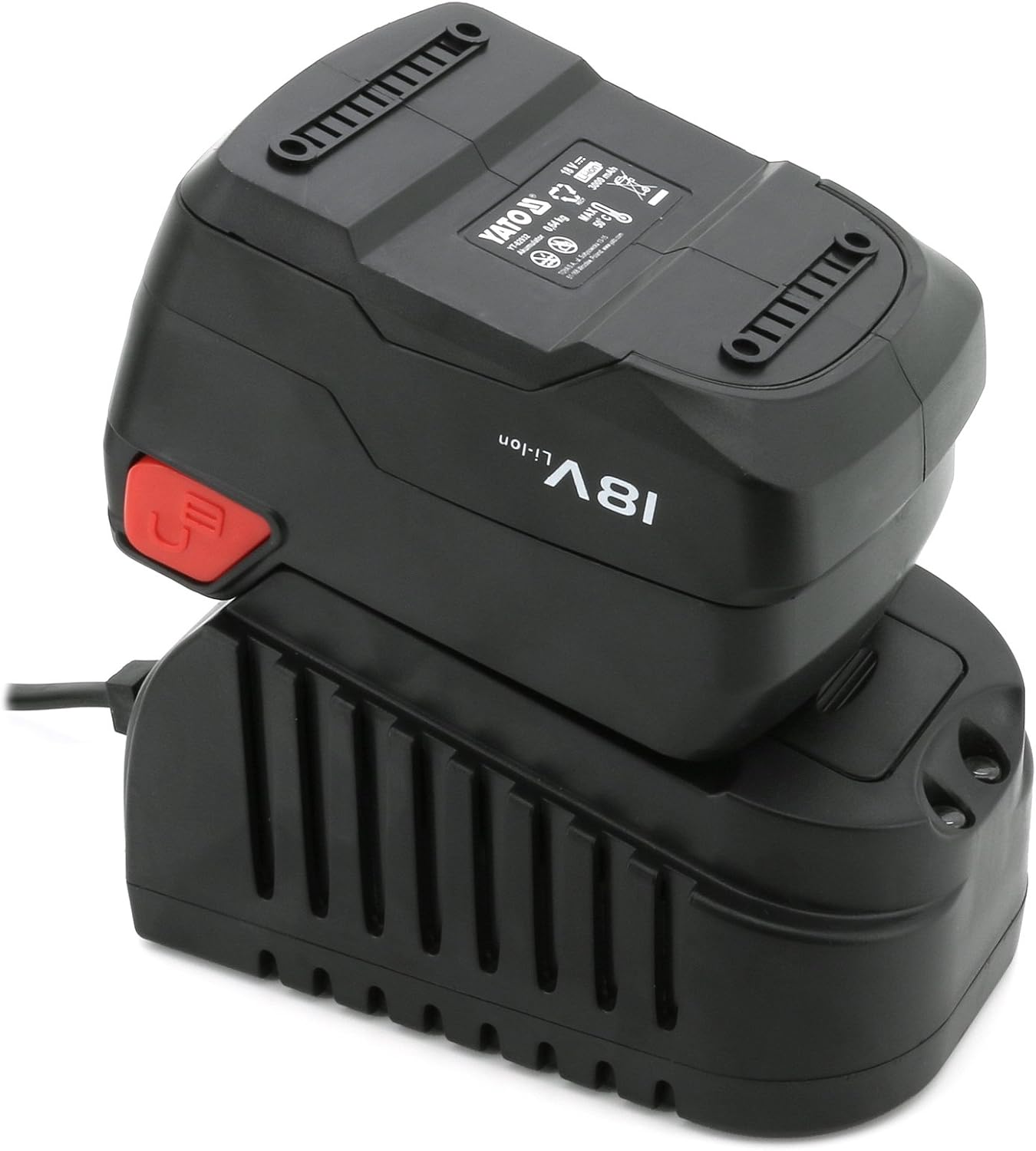

Image: The 18V Lithium-ion battery pack for the Yato impact wrench placed on its charger, indicating the charging process.
4.2 Installing and Removing the Battery
To install the battery, align the battery pack with the base of the impact wrench and slide it in until it clicks into place. To remove, press the battery release button (usually located on the side of the battery pack) and slide the battery out.

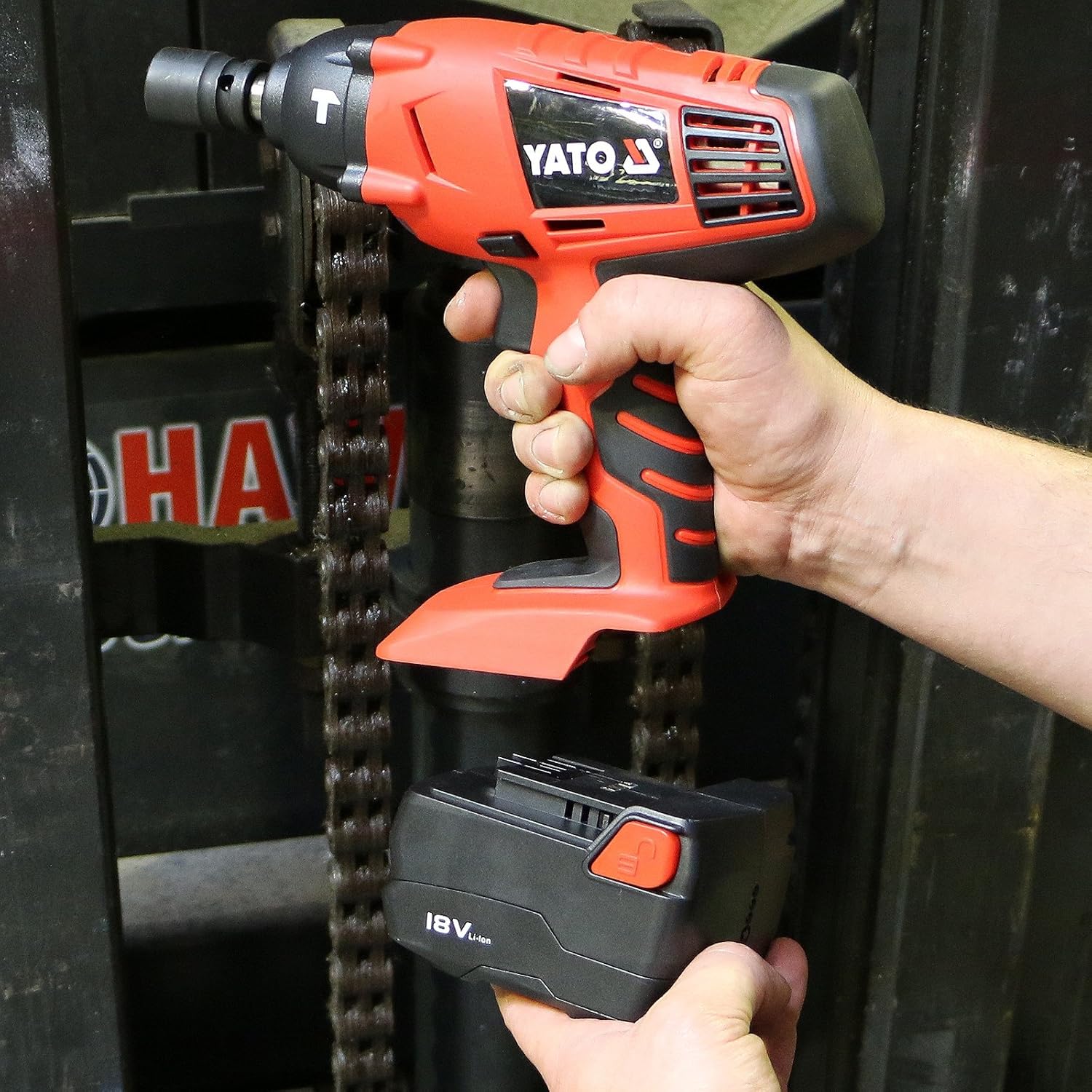

Image: A person's hands demonstrating the installation of the 18V battery into the Yato Cordless Impact Wrench.
4.3 Attaching Sockets
Select the appropriate socket size for your application. Push the socket firmly onto the square drive anvil of the impact wrench until it is securely seated. To remove, pull the socket off the anvil.
5. Operating Instructions
5.1 Powering On/Off and Direction Control
The impact wrench is activated by pressing the trigger switch. The speed is variable, controlled by how far the trigger is pressed (0-2200 RPM). To change the direction of rotation (forward/reverse), use the directional switch located near the trigger. Ensure the tool has come to a complete stop before changing direction.
5.2 Using the Impact Wrench
Position the socket squarely over the fastener. Apply firm, steady pressure and press the trigger. The impact mechanism will engage as resistance is met, providing high torque (up to 280 Nm) for tightening or loosening. Avoid over-tightening fasteners, especially on sensitive materials.

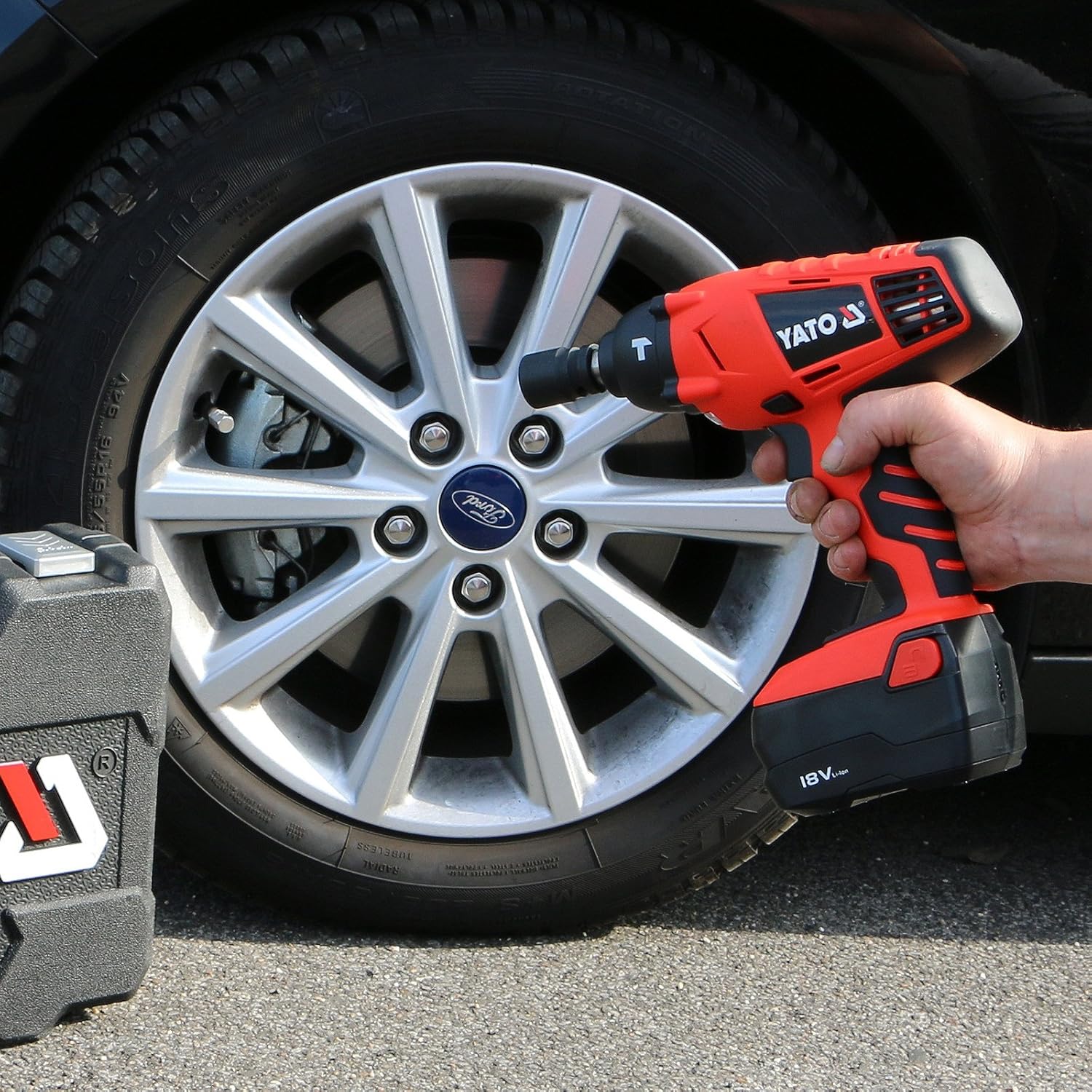

Image: A person using the Yato impact wrench to work on a car wheel, demonstrating its application for automotive tasks.
Image: The Yato impact wrench being used on a larger bolt on what appears to be heavy machinery, highlighting its versatility.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your impact wrench.
- Cleaning: Keep the tool's ventilation openings clean and free from dust and debris. Use a soft, damp cloth for cleaning the housing. Do not use harsh chemicals or abrasive cleaners.
- Battery Care: Store battery packs in a cool, dry place away from direct sunlight and extreme temperatures. Do not store fully discharged batteries for extended periods.
- Inspection: Periodically inspect the power tool for any signs of damage, loose screws, or worn parts. If any damage is found, have the tool serviced by a qualified technician.
7. Troubleshooting
If you encounter issues with your Yato YT-82930, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not start | Battery not charged or improperly installed. | Ensure battery is fully charged and correctly inserted. |
| Reduced power/torque | Low battery charge. Worn carbon brushes (if applicable). | Recharge battery. Contact service for brush replacement. |
| Excessive vibration or noise | Loose components or internal damage. | Stop using the tool immediately and have it inspected by a qualified technician. |
8. Specifications
Key technical specifications for the Yato YT-82930 Cordless Impact Wrench:
- Model: YT-82930
- Brand: Yato
- Voltage: 18V
- Battery Type: Lithium-ion
- Battery Capacity: 3000 mAh
- No-load Speed: 0-2200 RPM
- Max Torque: 280 Nm
- Impact Rate: 0-3300 impacts/minute
- Battery Charge Time: Approximately 120 minutes
- Item Weight: 5.5 kg
- Operation Mode: Battery
- Color: Red/Black
- GTIN (UPC): 05906083829307
9. Warranty and Support
Yato products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Yato website. Keep your purchase receipt as proof of purchase for any warranty claims.
