PATONA Premium V-Mount Battery 190Wh (PT-190WS) Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your PATONA Premium V-Mount Battery 190Wh (Model PT-190WS). This high-capacity lithium-ion battery is designed to power professional video equipment, offering reliable performance for extended shooting sessions.

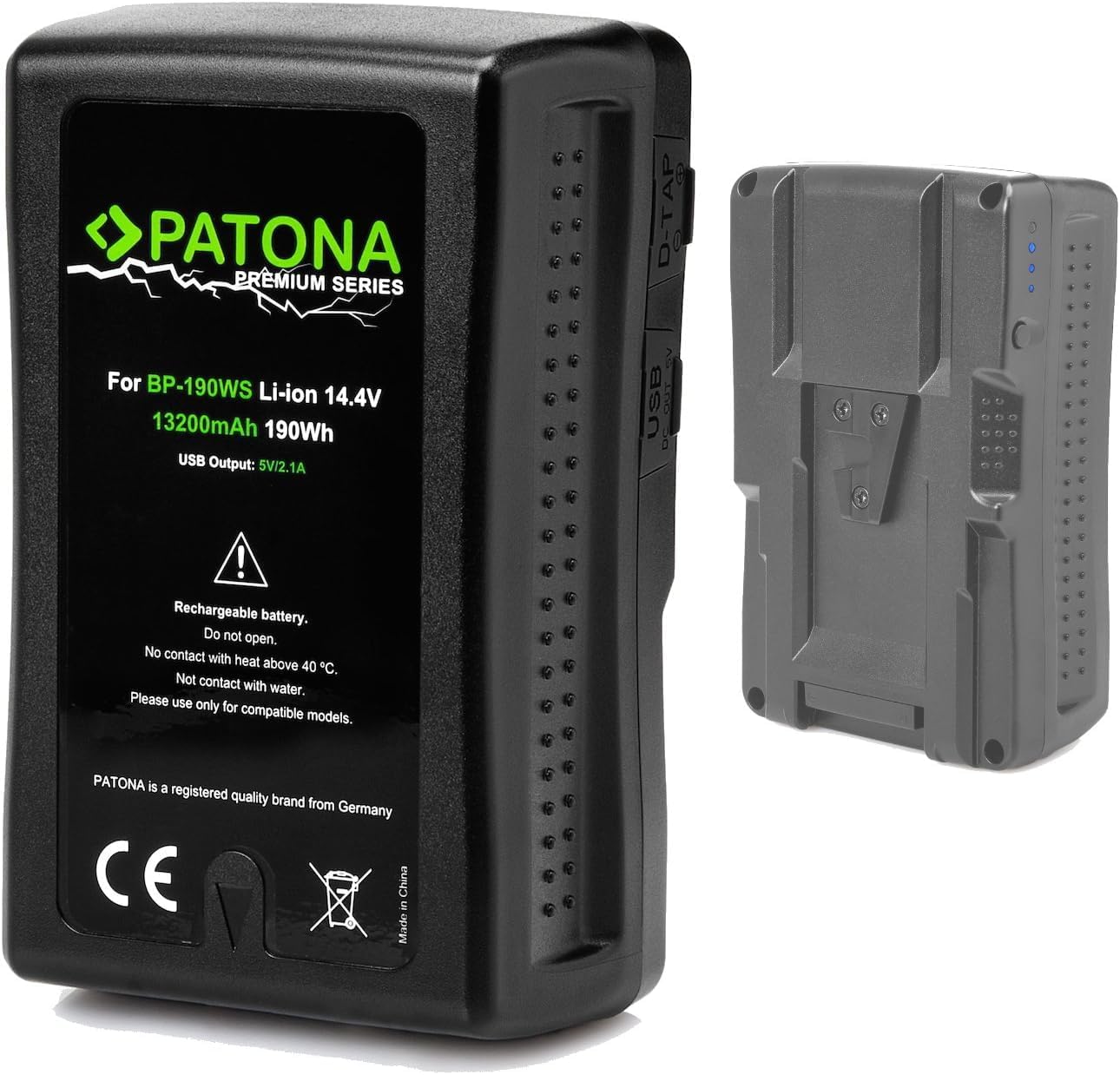

Figure 1: PATONA Premium V-Mount Battery 190Wh.

2. Safety Information

To ensure safe operation and prolong the life of your battery, please observe the following safety precautions:

• Do not expose the battery to high temperatures, direct sunlight, or fire.
• Avoid short-circuiting the battery terminals.
• Do not disassemble, puncture, or modify the battery.
• Keep the battery away from water and moisture.
• Use only PATONA-approved chargers or compatible chargers for recharging.
• Store the battery in a cool, dry place when not in use.
• Dispose of used batteries according to local regulations.

Figure 2: The PATONA V-Mount battery features built-in protection against overcharge, overvoltage, and short circuits for maximum operational safety.

3. Package Contents

The PATONA Premium V-Mount Battery 190Wh package includes:

• 1x PATONA Premium V-Mount Battery 190Wh (PT-190WS)

4. Product Features

The PATONA Premium V-Mount Battery 190Wh offers advanced features for professional use:

• High Capacity: 13200mAh (190Wh) for extended power.
• Stable Voltage: Consistent 14.4V output.
• Multiple Outputs: Includes D-Tap and USB output for versatile power options.
• LED Indicator: Provides real-time charge level indication.
• Advanced Protection: Integrated circuit protects against overcharge, overheating, and short-circuit.
• No Memory Effect: Lithium-ion cells ensure consistent performance without degradation from partial charges.
• Fast Recharge: Capable of rapid recharging, typically within 150 minutes.

Figure 3: Key features include high-quality Li-ion cells, 13200mAh capacity, 190Wh energy, and 14.4V constant power.

Figure 4: The battery features an A+ chip, 150-minute fast recharge capability, and no memory effect.

5. Setup

Follow these steps to prepare your PATONA V-Mount battery for use:

1. Initial Charge: Before first use, fully charge the battery using a compatible V-Mount charger. The LED indicator will show the charging progress.
2. Mounting: Align the V-mount plate on your camera or video light with the V-mount receiver on the battery. Slide the battery down until it clicks securely into place.
3. Connecting Devices: Use the D-Tap or USB outputs to power external accessories as needed. Ensure the voltage and current requirements of your devices are compatible with the battery's outputs.

6. Operating Instructions

Using your PATONA V-Mount battery is straightforward:

• Powering Equipment: Once mounted, the battery will provide power to your connected equipment. Refer to your equipment's manual for specific power-on procedures.
• Checking Charge Level: Press the small button next to the LED indicators to display the current charge level. Typically, multiple LEDs indicate a full charge, while fewer LEDs indicate a lower charge.
• Using D-Tap Output: The D-Tap port provides a 14.4V output for compatible accessories. Ensure the accessory cable is correctly oriented before insertion.
• Using USB Output: The USB port can charge or power USB-compatible devices.
• Removing Battery: To remove the battery, press the release button on the V-mount plate and slide the battery upwards.

Figure 5: The battery provides ample power for 4K recording, up to 600 photos, and up to 2.5 hours of video.

7. Maintenance

Proper maintenance ensures optimal performance and longevity of your battery:

• Charging: Recharge the battery after each use or when the charge level is low. Avoid completely draining the battery for extended periods.
• Storage: For long-term storage, charge the battery to approximately 50-70% and store it in a cool, dry place. Recharge every 3-6 months to prevent deep discharge.
• Cleaning: Use a soft, dry cloth to clean the battery and its terminals. Do not use harsh chemicals or abrasive materials.
• Temperature: Operate and store the battery within the recommended temperature range (typically 0°C to 40°C).

8. Troubleshooting

If you encounter issues with your PATONA V-Mount battery, consider the following:

• Battery Not Charging: Ensure the charger is properly connected to a power source and the battery. Check if the charger is compatible with V-mount batteries.
• Battery Not Powering Device: Verify the battery is securely mounted and fully charged. Check the device's power input requirements and ensure they match the battery's output. Inspect cables for damage.
• Shortened Runtime: Battery capacity naturally degrades over time. Ensure the battery is fully charged before use. Extreme temperatures can also affect performance.
• LED Indicator Malfunction: If the LED indicator does not respond, try recharging the battery. If the issue persists, contact customer support.

9. Specifications

10. Compatibility

The PATONA Premium V-Mount Battery 190Wh is designed as a replacement for original batteries such as Sony BP-190WS, BP-GL95, and BP-GL65. It is compatible with a range of professional video equipment, including but not limited to:

• Sony DSR-250P
• Sony DSR-600P
• Sony DSR-650P
• Sony DSR-652P
• Sony HDW-800P
• Sony PDW-850
• Various broadcast camcorders, URSA cameras, and video lights that utilize V-mount batteries.

Figure 6: The battery is compatible with several Sony DSR, HDW, and PDW series camcorders.

11. Warranty and Support

PATONA products are manufactured to high-quality standards and undergo rigorous testing. This product is CE compliant. For warranty information, technical support, or service inquiries, please refer to the official PATONA website or contact your authorized dealer. Keep your proof of purchase for warranty claims.
