ZOJE Industrial Sewing Machine User Manual

Introduction

This manual provides essential instructions for the safe and efficient operation, setup, and maintenance of your ZOJE Industrial Sewing Machine. This machine is specifically designed for heavy fabrics, leather, and upholstery, featuring a double transport system and an integrated servomotor for reliable performance.

Please read this manual thoroughly before operating the machine to ensure proper usage and to prevent damage or injury. Keep this manual for future reference.

Safety Instructions

• Always disconnect the machine from the power supply before cleaning, lubricating, or performing any maintenance.
• Keep fingers and clothing away from the needle and moving parts during operation.
• Use only genuine ZOJE replacement parts and accessories.
• Ensure the machine is placed on a stable, level surface.
• Do not operate the machine if any parts are damaged or missing.
• Keep the work area well-lit and free from clutter.

Setup

Your ZOJE Industrial Sewing Machine may arrive either fully assembled or requiring assembly of the table and frame. Follow the instructions below based on your delivery configuration.

1. Unpacking and Assembly (if required)

Carefully unpack all components. If the machine, table, and frame were delivered unassembled, refer to the separate assembly guide for the table and frame. Ensure all connections are secure and stable before proceeding.

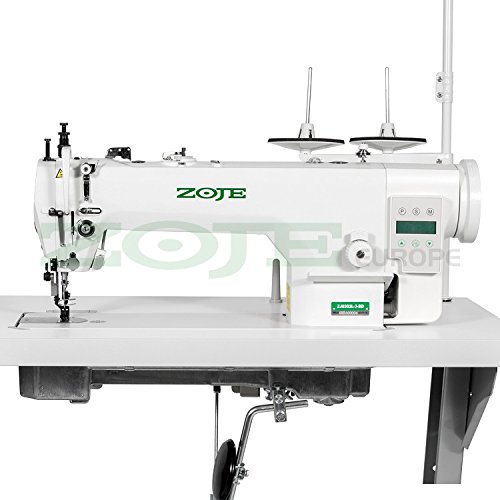

Figure 1: The ZOJE Industrial Sewing Machine, complete with its table and frame. This image shows the machine fully assembled and ready for use, highlighting its robust construction and integrated design.

2. Power Connection

Connect the power cord to a suitable electrical outlet. The machine features an integrated AC servomotor, which is highly efficient and quiet. Ensure the power switch is in the "off" position before connecting.

3. Initial Lubrication

The machine is equipped with a central lubrication system. Before first use, and periodically thereafter, ensure the oil reservoir is filled to the recommended level. Consult the oil level indicator for proper filling. Proper lubrication is crucial for the longevity and smooth operation of the machine.

Operating Instructions

1. Powering On/Off

To power on the machine, flip the main power switch located on the control panel. The integrated servomotor will activate silently. To power off, flip the switch back to the "off" position.

2. Threading the Machine

Follow the threading path indicated on the machine. Ensure the thread is correctly seated in all tension discs and guides. Proper threading is essential for consistent stitch quality.

3. Needle Selection and Installation

This machine uses needle system 134-35 / 135 x 17. Select the appropriate needle size for your fabric type and thread. To install a new needle, loosen the needle clamp screw, insert the needle with the flat side facing away from you, and tighten the screw securely.

4. Adjusting Stitch Length

The maximum stitch length is 8.0 mm. Adjust the stitch length dial on the machine head to your desired setting. Longer stitches are generally suitable for heavier materials like leather, while shorter stitches are for finer work.

5. Material Handling and Double Transport

The ZOJE Industrial Sewing Machine features an under- and upper-transport (walking foot) system, ideal for handling heavy fabrics, leather, and upholstery without slippage. Place your material under the presser foot. The foot ventilation is 16 mm, allowing for thick materials.

Figure 2: A detailed view of the presser foot and needle area, illustrating the robust construction and the double transport mechanism designed for effective handling of thick and challenging materials like leather and upholstery.

6. Automatic Needle Positioning

Utilize the automatic needle positioning feature for precise control over your stitching. This function allows the needle to stop in either the up or down position, facilitating corner turns and material manipulation.

7. Work Area Illumination

The integrated LED lighting illuminates the work field, providing clear visibility for detailed sewing tasks.

8. Sewing Speed

The machine has a maximum sewing speed of 2000 stitches/min. Adjust the speed according to your comfort level and the complexity of the task.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your ZOJE Industrial Sewing Machine.

1. Lubrication

Periodically check the oil level in the central lubrication system and refill as necessary with recommended sewing machine oil. Refer to the machine's oil level indicator. Proper lubrication prevents wear on moving parts.

2. Cleaning

Regularly clean lint and dust from the bobbin area, feed dogs, and tension discs. Use a soft brush or compressed air. Ensure the machine is disconnected from power before cleaning.

3. Cooling System

The integrated fan helps cool the machine during operation. Ensure the fan vents are not obstructed to maintain efficient cooling.

Troubleshooting

This section addresses common issues you might encounter. For problems not listed here, please contact customer support.

• Skipped Stitches: Check needle installation (flat side correct?), needle condition (bent or dull?), and ensure proper threading.
• Thread Breakage: Verify correct threading, proper tension settings, and ensure the needle is the correct size for the thread and fabric. Check for burrs on the needle plate or bobbin case.
• Uneven Stitches: Ensure consistent material feeding. Check tension settings for both upper and bobbin threads.
• Machine Not Powering On: Check power cord connection and ensure the power outlet is functional.

Specifications

Warranty and Support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact ZOJE customer service directly. Ensure you have your model number (B01GM0WLLW) and purchase details available when contacting support.

Note: Specific warranty terms may vary by region and retailer.
