MOMO FIGHTER EVO LEATHER 350mm F-33 Steering Wheel Instruction Manual

1. Introduction

Thank you for purchasing the MOMO FIGHTER EVO LEATHER 350mm F-33 Steering Wheel. This manual provides essential information for the safe installation, operation, and maintenance of your new steering wheel. Please read this manual thoroughly before installation and keep it for future reference.

Note on Logo Variations: Due to ongoing specification changes, the product you receive may feature either the 'arrow logo' or the 'MOMO logo'. The logo type cannot be specified at the time of order. This variation does not affect product quality or performance.

2. Safety Information

Always prioritize safety during installation and use. Failure to follow these instructions may result in serious injury or damage to your vehicle.

• Professional Installation Recommended: Installation of an aftermarket steering wheel requires specialized knowledge and tools. It is highly recommended that installation be performed by a qualified professional mechanic.
• No Airbag: MOMO aftermarket steering wheels do not have airbags built in. Removing the original steering wheel will disable the vehicle's airbag system. Be aware of the safety implications.
• Correct Boss Kit Required: A vehicle-specific boss (adapter) kit is mandatory for proper installation. Ensure you use the correct boss kit for your vehicle model.
• Secure Fasteners: Ensure all bolts and screws are tightened to the manufacturer's specified torque settings. Regularly check for any loosening.
• Electrical Connections: If your vehicle has horn or other electrical connections on the steering wheel, ensure they are correctly reconnected and functioning after installation.

3. Package Contents

Please verify that all components are present before beginning installation:

• MOMO FIGHTER EVO LEATHER 350mm Steering Wheel (F-33)
• Horn Button
• Mounting Screws (Note: If using a spacer with TREK or decorative rings, longer screws may be required and must be prepared separately by the customer.)
• Wiring for Horn (if applicable)

4. Setup (Installation)

This section outlines the general steps for installing your MOMO steering wheel. Specific procedures may vary depending on your vehicle and boss kit. Always refer to your vehicle's service manual and the boss kit instructions for detailed guidance.

1. Disconnect Battery: Before starting, disconnect the vehicle's battery to prevent accidental airbag deployment (if applicable) and electrical shorts.
2. Remove Original Steering Wheel: Carefully remove the original steering wheel according to your vehicle's service manual. This typically involves removing the horn pad, disconnecting electrical connectors, and unbolting the steering wheel from the steering column shaft.
3. Install Boss Kit: Mount the vehicle-specific boss (adapter) kit onto the steering column shaft. Ensure it is properly aligned and secured according to the boss kit manufacturer's instructions.
4. Attach MOMO Steering Wheel: Place the MOMO FIGHTER EVO LEATHER steering wheel onto the boss kit. Align the mounting holes.
5. Connect Horn Wiring: Connect the horn wiring from the boss kit to the horn button on the MOMO steering wheel.
6. Secure Steering Wheel: Insert and tighten the provided mounting screws (or longer screws if using a spacer) to secure the steering wheel to the boss kit. Tighten evenly and to the specified torque.
7. Test Functionality: Reconnect the vehicle's battery. Test the horn and ensure the steering wheel is securely mounted and operates smoothly without any play.

Image 1: Detailed diagram illustrating the dimensions (H, W, DEEP) and grip measurements (A, B, C) of the MOMO FIGHTER EVO LEATHER steering wheel. This helps in understanding the physical characteristics and fitment.

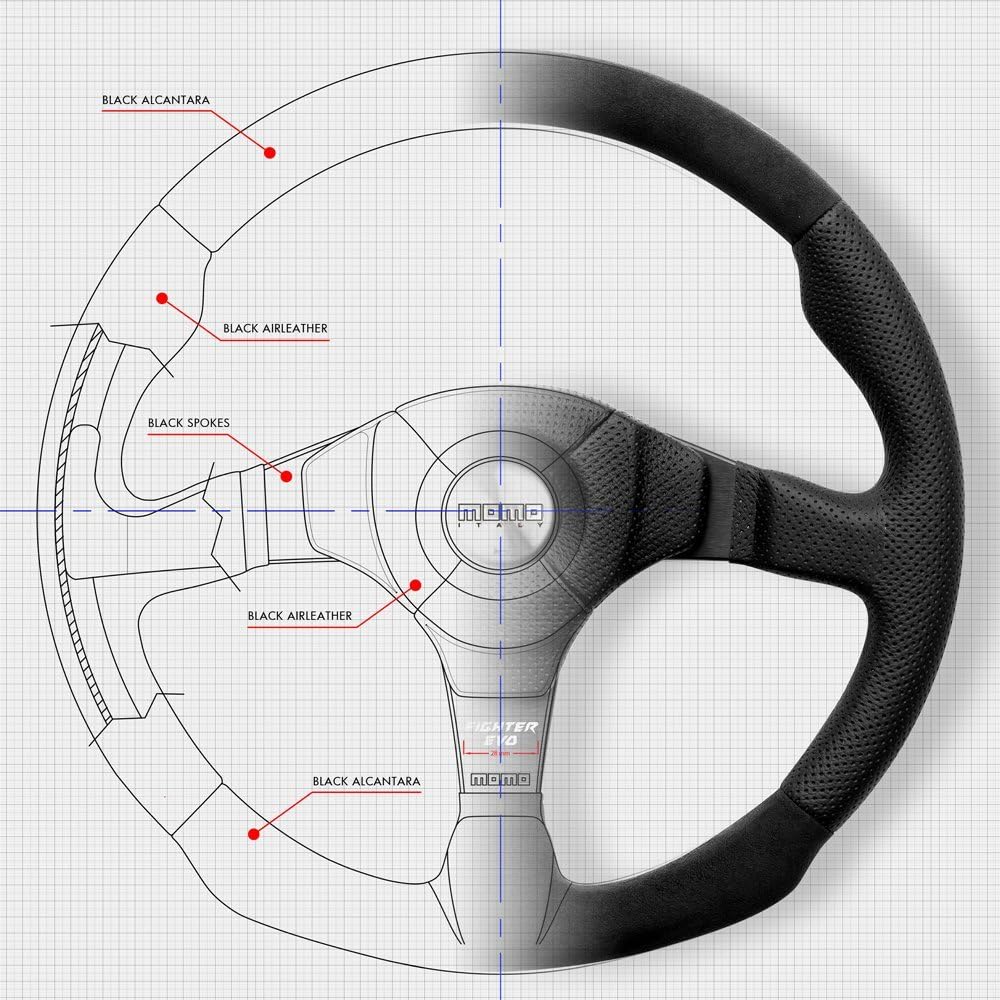

Image 2: Technical blueprint showing the construction and material zones of the MOMO FIGHTER EVO LEATHER steering wheel, including Black Alcantara and Black Airleather sections. This provides insight into the design and material composition.

5. Operating

The MOMO FIGHTER EVO LEATHER steering wheel is designed for enhanced grip and control. Once properly installed, operate your vehicle as usual. The ergonomic design and high-quality leather provide a comfortable and responsive driving experience.

• Horn Function: Press the center horn button to activate the vehicle's horn.
• Driving Position: Adjust your seat and steering column (if adjustable) to achieve an optimal and safe driving position that allows full control of the steering wheel and pedals.

Image 3: Front view of the MOMO FIGHTER EVO LEATHER 350mm F-33 steering wheel, highlighting its black leather finish, spoke design, and central horn button. This image represents the product's aesthetic.

6. Maintenance

To ensure the longevity and appearance of your MOMO FIGHTER EVO LEATHER steering wheel, follow these maintenance guidelines:

• Cleaning: Use a soft, damp cloth to wipe the leather surface. For deeper cleaning, use a specialized leather cleaner designed for automotive interiors. Avoid harsh chemicals, abrasive cleaners, or solvents, as these can damage the leather.
• Conditioning: Periodically apply a leather conditioner to keep the leather supple and prevent drying or cracking.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause fading and deterioration of the leather. Consider using a sunshade when parking for extended periods.
• Check Fasteners: Periodically inspect all mounting screws and bolts for tightness. Re-tighten if necessary to prevent any movement or play.

7. Troubleshooting

If you encounter issues with your MOMO steering wheel, consider the following common solutions:

• Horn Not Working:
  • Check all electrical connections for the horn button and wiring.
  • Ensure the horn fuse in your vehicle's fuse box is intact.
  • Verify the horn button itself is functioning correctly.
• Steering Wheel Feels Loose:
  • Immediately stop driving and safely pull over.
  • Check all mounting screws securing the steering wheel to the boss kit. Tighten them evenly and securely.
  • Inspect the boss kit for any damage or improper installation.
• Unusual Noises from Steering:
  • This could indicate an issue with the boss kit or steering column. Consult a professional mechanic.

For persistent issues, contact a qualified automotive technician or MOMO customer support.

8. Specifications

9. Warranty and Support

This product conforms to the manufacturer's warranty. For specific warranty details, claims, or technical support, please refer to the official MOMO website or contact your authorized MOMO dealer.

Keep your proof of purchase for warranty purposes.
