1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Kospel EPO2-3 AMICUS Instantaneous Water Heater. Please read this manual thoroughly before installation and use, and keep it for future reference. This instantaneous water heater is designed to provide hot water for a single tap or multiple taps, depending on the model variant and power output.
Figure 1: Front view of the Kospel EPO2-3 AMICUS Instantaneous Water Heater.
2. Safety Information
Always adhere to the following safety precautions to prevent injury or damage to the appliance:
- Installation must be performed by a qualified electrician and plumber in accordance with local regulations and standards.
- Ensure the power supply matches the specifications of the heater (230V).
- Do not operate the heater if it is damaged or malfunctioning.
- Do not block the water outlet or tamper with the pressure relief valve.
- Disconnect power before performing any maintenance or cleaning.
- Keep flammable materials away from the heater.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Installation Guide
The Kospel EPO2-3 AMICUS is designed for undersink installation. Ensure adequate space and proper ventilation. Refer to the diagram below for connection points and dimensions.
Figure 2: Installation diagram and dimensions for the Kospel EPO2-3 AMICUS.
3.1. Mounting
- Choose a suitable location, preferably directly under the sink, ensuring easy access for maintenance.
- Mount the heater vertically using appropriate fasteners, ensuring it is level and securely fixed to a solid surface.
- The unit can be mounted in any position, above or below the tap, with connections from the top or bottom.
3.2. Water Connection
- Connect the cold water supply to the blue marked inlet (GZ 3/8").
- Connect the hot water outlet to the red marked outlet (GZ 3/8").
- Ensure all connections are watertight. The distance between the branches is approximately 80 mm.
- The minimum water pressure required is 1.2 bar, with a maximum of 6.0 bar.
- Before connecting to the heater, flush the water pipes to remove any debris.
3.3. Electrical Connection
- The heater requires a 230V power supply.
- Connect the heater to a dedicated electrical circuit with appropriate overcurrent protection (e.g., a circuit breaker).
- The minimum section of cables required is 3 x 1.5 mm².
- Ensure proper grounding.
- All electrical work must comply with local electrical codes.
4. Operation
4.1. First Use
- Before switching on the power, open the hot water tap to allow water to flow through the heater and expel any air from the system.
- Once water flows steadily from the tap, close the tap.
- Switch on the electrical power to the heater. The indicator light on the front of the unit will illuminate when the heater is active.
4.2. Daily Use
- To obtain hot water, simply open the hot water tap. The heater will automatically activate when water flows through it.
- The water temperature is regulated by the flow rate. A lower flow rate will result in hotter water, while a higher flow rate will result in cooler water.
- The EPO2-3 AMICUS model provides approximately 1.7 liters per minute of hot water at a 30°C temperature rise.
5. Maintenance
Regular maintenance ensures the longevity and efficient operation of your water heater.
- Cleaning: Periodically wipe the exterior of the heater with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Descaling: In areas with hard water, mineral deposits can accumulate inside the heater. It is recommended to have the unit descaled by a qualified technician annually or as needed.
- Water Filter: If your water supply has a filter, check and clean it regularly according to the filter manufacturer's instructions.
- Inspection: Periodically check for any signs of leaks, corrosion, or damage to the power cord and water connections. If any issues are found, disconnect power and contact a qualified technician.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No hot water / Heater not activating | No power supply Insufficient water flow Air in the system | Check circuit breaker/fuse Ensure water pressure is adequate (1.2-6.0 bar) Open hot water tap to purge air |
| Water not hot enough | High water flow rate Low incoming water temperature Mineral buildup | Reduce water flow at the tap This is an instantaneous heater, temperature rise is fixed Contact a qualified technician for descaling |
| Water leakage | Loose connections Damaged seals/pipes | Tighten water connections Contact a qualified technician for repair |
| Unusual noise | Air in the system Mineral buildup | Purge air by opening hot water tap Contact a qualified technician for descaling |
If the problem persists after attempting these solutions, please contact a qualified service technician.
7. Technical Specifications
Below are the key technical specifications for the Kospel EPO2-3 AMICUS Instantaneous Water Heater:
| Feature | Specification |
|---|---|
| Model | EPO2-3 AMICUS |
| Rated Power | 3.5 kW |
| Rated Voltage | 230 V |
| Nominal Socket Outlet Current | 15.2 A |
| Minimum Cable Section | 3 x 1.5 mm² |
| Hot Water Output (at 30°C rise) | 1.7 l/min |
| Water Pressure (Min-Max) | 1.2 - 6.0 bar |
| Dimensions (H x W x D) | 200 x 168 x 76 mm |
| Item Weight | 1.2 kg |
| Protection Level | IP 24 |
| Water Connection | GZ 3/8" |
| Distance between branches | ~ 80 mm |
| ERP Energy Class | A |

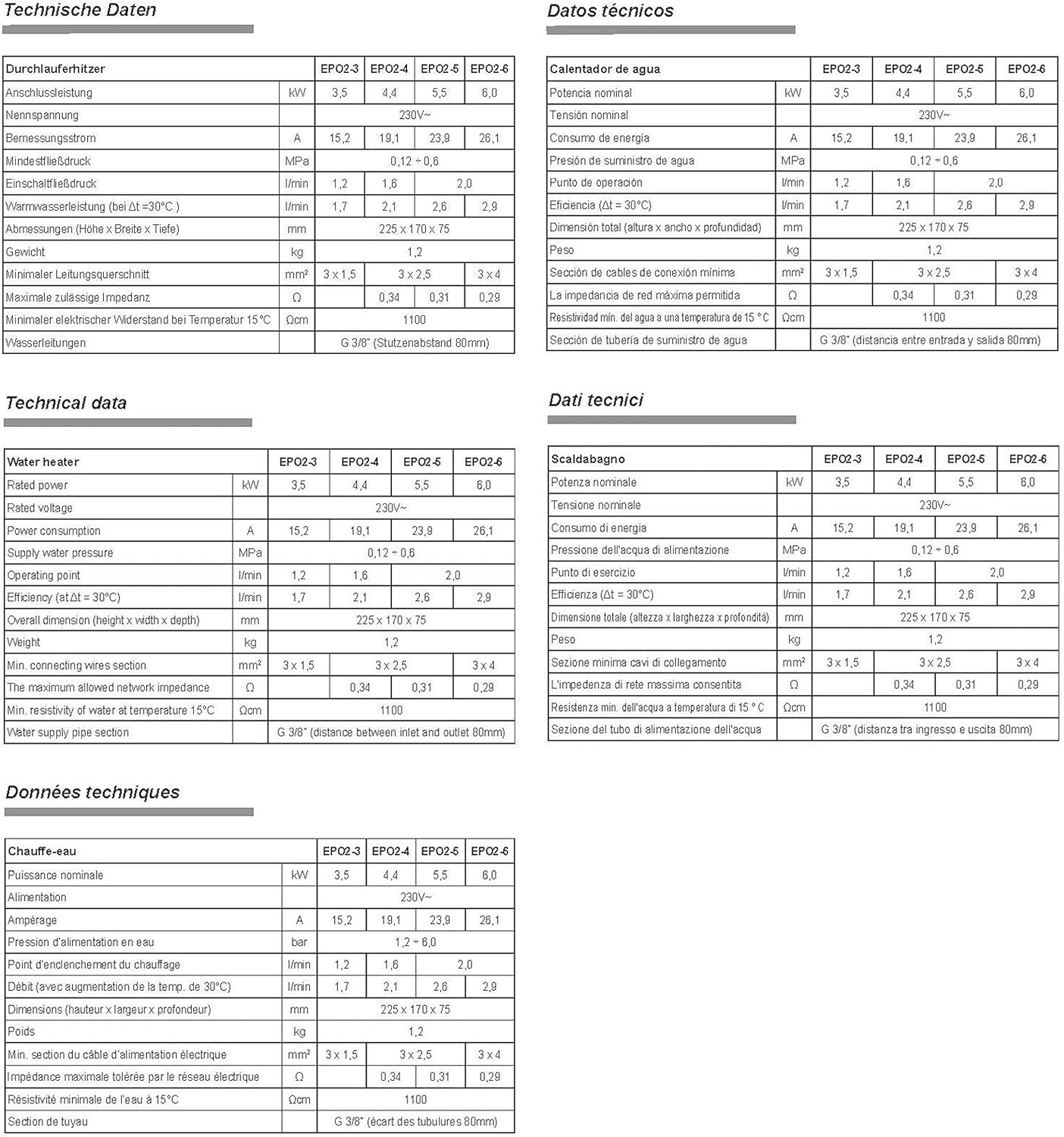

Figure 3: Detailed technical data for Kospel EPO2-3 AMICUS and other models.
8. Warranty and Support
Kospel provides a manufacturer's warranty for this product against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region. Please retain your proof of purchase for warranty claims.
For technical support, service, or warranty inquiries, please contact your local Kospel distributor or authorized service center. Contact information can typically be found on the Kospel official website or through your retailer.
