AMIR Solar Powered 100 LED Copper Wire String Lights

Introduction

Thank you for choosing AMIR Solar Powered 100 LED Copper Wire String Lights. This product is designed to provide decorative lighting for various indoor and outdoor settings. The lights feature a flexible copper wire with 100 super bright LED bulbs, offering 360-degree illumination. The solar panel charges during the day and automatically illuminates the lights at night. This manual provides essential information for the safe and effective use of your string lights.

Product Overview

The AMIR Solar Powered String Lights come as a set, each featuring a solar panel and a string of 100 LED lights on a flexible copper wire.

Image: Two solar panels with ground stakes connected to coiled copper wire LED string lights.

Image: A close-up view of the small, warm white LED lights on the flexible copper wire.

Setup Instructions

1. Unpack Components: Carefully remove the solar panel, ground stake, and coiled string lights from the packaging.
2. Assemble Solar Panel: Attach the ground stake to the solar panel unit. Ensure it is securely fastened.
3. Remove Protective Film: Before first use, gently peel off the protective film from the solar panel surface. This ensures optimal charging efficiency.
4. Initial Power On: Locate the POWER ON/OFF switch on the back of the solar panel. Switch it to the 'ON' position. The lights will not illuminate during the day if the panel detects light.
5. Position Solar Panel: Place the solar panel in a location that receives direct sunlight for at least 6-8 hours daily. Avoid shaded areas, as this will reduce charging efficiency and operating time. The panel should ideally face south.

Image: Diagram illustrating optimal solar panel placement for maximum sunlight exposure (10 AM - 4 PM) for 12 hours of operation.

Image: Diagram illustrating how shade from a tree can negatively impact the solar panel's charging efficiency and reduce light operating time.

6. Arrange String Lights: Uncoil the copper wire lights and arrange them as desired. The flexible copper wire allows for easy shaping around objects like tree trunks, gazebos, or for creating specific designs.

Operating Instructions

The AMIR Solar Powered String Lights are designed for automatic operation once properly set up and charged.

1. Automatic Operation: With the POWER ON/OFF switch in the 'ON' position, the lights will automatically turn on when the environment becomes dark (at dusk) and turn off at sunrise.
2. Mode Selection: Use the 'MODE' switch located on the back of the solar panel to cycle through the 8 available lighting modes. These modes include:
   • Combination
   • Fireflies Flashing
   • Waves
   • Fading
   • Chasing/Flashing
   • Fading Slowly
   • Twinkle/Flashing
   • Steady On

Maintenance

To ensure the longevity and optimal performance of your AMIR Solar Powered String Lights, follow these maintenance guidelines:

• Clean Solar Panel: Regularly wipe the solar panel surface with a soft, damp cloth to remove dust, dirt, or debris. A clean panel ensures maximum sunlight absorption and charging efficiency.
• Inspect Wiring: Periodically check the copper wire and LED bulbs for any signs of damage or wear. Although the lights are water-resistant (IP65 rated), proper care helps prevent issues.
• Battery Care: The product includes a Lithium Ion battery. While designed for durability, extreme temperatures can affect battery life. Store the lights in a cool, dry place if not in use for extended periods.
• Winter Storage: In areas with harsh winters, it is recommended to bring the solar panel and lights indoors to protect them from extreme cold and snow, which can impact performance and lifespan.

Troubleshooting

If your AMIR Solar Powered String Lights are not functioning as expected, consider the following:

• Lights Not Turning On:
  • Ensure the POWER ON/OFF switch is in the 'ON' position.
  • Verify the solar panel is receiving direct sunlight for sufficient charging (6-8 hours). Relocate if necessary.
  • Check for any obstructions (e.g., leaves, dirt) on the solar panel surface. Clean if dirty.
  • Confirm it is dark enough for the light sensor to activate. Cover the solar panel briefly to test if the lights turn on.
• Short Operating Time:
  • Insufficient charging due to cloudy weather or shaded placement. Ensure optimal sunlight exposure.
  • The battery may not be fully charged. Allow for a full day of direct sunlight charging.
  • Battery degradation over time. While not user-replaceable, ensuring proper charging and storage can extend its life.
• Lights Flickering or Dim:
  • This could indicate a low battery charge. Allow the solar panel to charge fully.
  • Check for loose connections or damaged wires.

Specifications

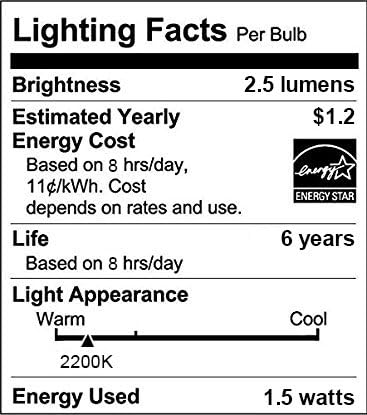

Image: Lighting Facts label providing details on brightness, energy cost, lifespan, and light appearance.

Warranty and Support

For information regarding product warranty and customer support, please refer to the retailer's return policy or contact AMIR customer service directly. The product typically includes a 30-day return policy from the point of purchase.
