Introduction
This instruction manual provides detailed guidance for the TecTake Retractable Windscreen, an automatic privacy screen and sun protection ideal for balconies and terraces. Please read this manual thoroughly before installation and use to ensure proper function, safety, and longevity of your product. Keep this manual for future reference.
Safety Information
Attention: Ensure to install the awning securely and stably to prevent it from detaching during strong winds. Do not use the awning in extreme weather conditions. Keep away from heat sources and flames. Do not use if damaged.
- Always follow local building codes and regulations for installation.
- Ensure the mounting surface is strong enough to support the weight of the windscreen and withstand wind loads.
- Regularly inspect all components for wear, damage, or loose connections.
- Keep children and pets away from the product during operation.
- Do not hang objects on the windscreen or use it for purposes other than its intended design.
Product Overview and Components
The TecTake Retractable Windscreen is designed to provide privacy and protection from sun and wind. It features an automatic winding mechanism for easy operation and a durable aluminum frame.
Figure 1: TecTake Retractable Windscreen. This image shows the main product, highlighting its stainless aluminum frame and the included mounting hardware (screws and anchors) at the bottom.
Figure 2: Key Features. This image illustrates the main benefits and components: optimal protection from privacy, wind, sun, and noise; robust and lightweight stainless aluminum frame; robust polyester fabric with PU coating, easy to clean and waterproof; easy to use automatic spring mechanism; secure fixing of the pole for a firm hold; and easy and quick assembly with included accessories.
Figure 3: Noise Reduction. This image visually represents the windscreen's ability to reduce noise, contributing to a more tranquil environment.
Main Components:
- Main Housing: Contains the retractable fabric and automatic winding mechanism.
- Retractable Fabric: Made of polyester with a PU coating for water repellency and durability.
- Pull-out Handle: Ergonomic plastic handle for extending and retracting the fabric.
- Receiving Post: The pole where the extended fabric locks into place.
- Base Plate: For securing the receiving post to the ground.
- Mounting Hardware: Screws and anchors for installation.
Setup and Installation
The TecTake Retractable Windscreen is designed for straightforward installation. All necessary mounting materials are included. Ensure you have the appropriate tools before beginning.
Tools Required (Not Included):
- Drill
- Drill bits suitable for your mounting surface (e.g., masonry, wood)
- Measuring tape
- Pencil
- Level
- Screwdriver or power drill with appropriate bit
Installation Steps:
- Choose Location: Select a suitable location on your balcony, terrace, or garden. Ensure the mounting surface for the main housing is sturdy and flat. The receiving post can be mounted up to 3 meters away from the main housing.
- Mount Main Housing:
- Position the main housing against the wall or sturdy vertical surface at the desired height.
- Mark the drilling points for the mounting brackets.
- Drill holes at the marked points. Insert wall anchors if necessary.
- Securely fasten the main housing to the wall using the provided screws.
- Mount Receiving Post:
Figure 4: Versatile Mounting. This image demonstrates how the receiving pole can be mounted as desired to adapt the sun awning to any light condition and install it at any width, up to 3 meters.
- Extend the fabric from the main housing to the desired maximum length (up to 300 cm).
- Position the base plate of the receiving post at the end of the extended fabric, ensuring the fabric is taut and level.
- Mark the drilling points for the base plate on the ground.
- Drill holes and secure the base plate firmly to the ground using the provided screws and anchors.
- Attach the receiving post to its base plate.
- Final Check: Ensure all screws are tightened and the windscreen is securely mounted. Test the retraction and extension mechanism to confirm smooth operation.
Figure 5: Mechanism Details. This image shows the automatic spring winding mechanism ensuring smooth operation, the practical plastic handle with a robust pin allowing the fabric to be locked into the pole, the solid base plate screwed to the floor ensuring high stability, and the PU-coated polyester fabric which is tear-resistant, water-repellent, and durable.
Operating Instructions
Operating your TecTake Retractable Windscreen is simple and intuitive.
Extending the Windscreen:
- Grasp the ergonomic handle firmly.
- Gently pull the fabric horizontally outwards from the main housing. The automatic spring mechanism will allow for smooth extension.
- Continue pulling until the handle reaches the receiving post.
- Align the handle with the locking mechanism on the receiving post and push it down to secure the fabric in place. Ensure it is firmly locked to prevent accidental retraction.
Retracting the Windscreen:
- Unlock the handle from the receiving post by lifting it slightly and disengaging the locking pin.
- Slowly guide the handle back towards the main housing. The automatic winding mechanism will retract the fabric smoothly. Do not release the handle abruptly, as this could cause damage or injury.
- Once fully retracted, the fabric will be neatly stored within the main housing.
Figure 6: Windscreen in Use. This image shows the TecTake Retractable Windscreen extended on a patio, providing privacy and shade for an outdoor seating area.
Figure 7: Enhanced Privacy. This image illustrates the windscreen providing increased privacy in an outdoor setting next to a pool, obscuring the view into an indoor living space.
Figure 8: Enjoying Summer Privacy. This image depicts the windscreen creating a private and comfortable outdoor space, allowing users to fully enjoy their summer activities.
Maintenance
Regular maintenance will help prolong the life and appearance of your TecTake Retractable Windscreen.
- Cleaning the Fabric: The polyester fabric with PU coating is easy to clean. Use a soft cloth, mild soap, and water to wipe down the fabric. Do not use harsh chemicals or abrasive cleaners, as these can damage the coating. Allow the fabric to dry completely before retracting to prevent mildew.
- Cleaning the Frame: Wipe the aluminum frame with a damp cloth to remove dust and dirt.
- Inspection: Periodically check all screws and mounting points to ensure they remain tight and secure. Inspect the fabric for any tears or damage. Check the winding mechanism for smooth operation.
- Winter Storage: In areas with harsh winters, it is recommended to retract the windscreen and store it indoors or cover it to protect it from extreme cold, snow, and ice.
Troubleshooting
Here are some common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Windscreen does not extend or retract smoothly. | Obstruction in the path; fabric caught; winding mechanism issue. | Check for any obstructions. Ensure fabric is not twisted or caught. If the mechanism is faulty, contact customer support. |
| Windscreen does not lock into the receiving post. | Handle not properly aligned; locking pin damaged. | Ensure the handle is perfectly aligned with the receiving post's slot. Inspect the locking pin for damage. |
| Fabric appears loose or sags. | Improper installation; fabric stretched over time. | Verify that the main housing and receiving post are mounted at the correct distance and tension. If fabric is stretched, it may be normal wear or require replacement. |
| Mounting points feel unstable. | Loose screws; inadequate anchors; weak mounting surface. | Tighten all screws. If necessary, use stronger anchors or reinforce the mounting surface. Consult a professional if unsure. |
Specifications

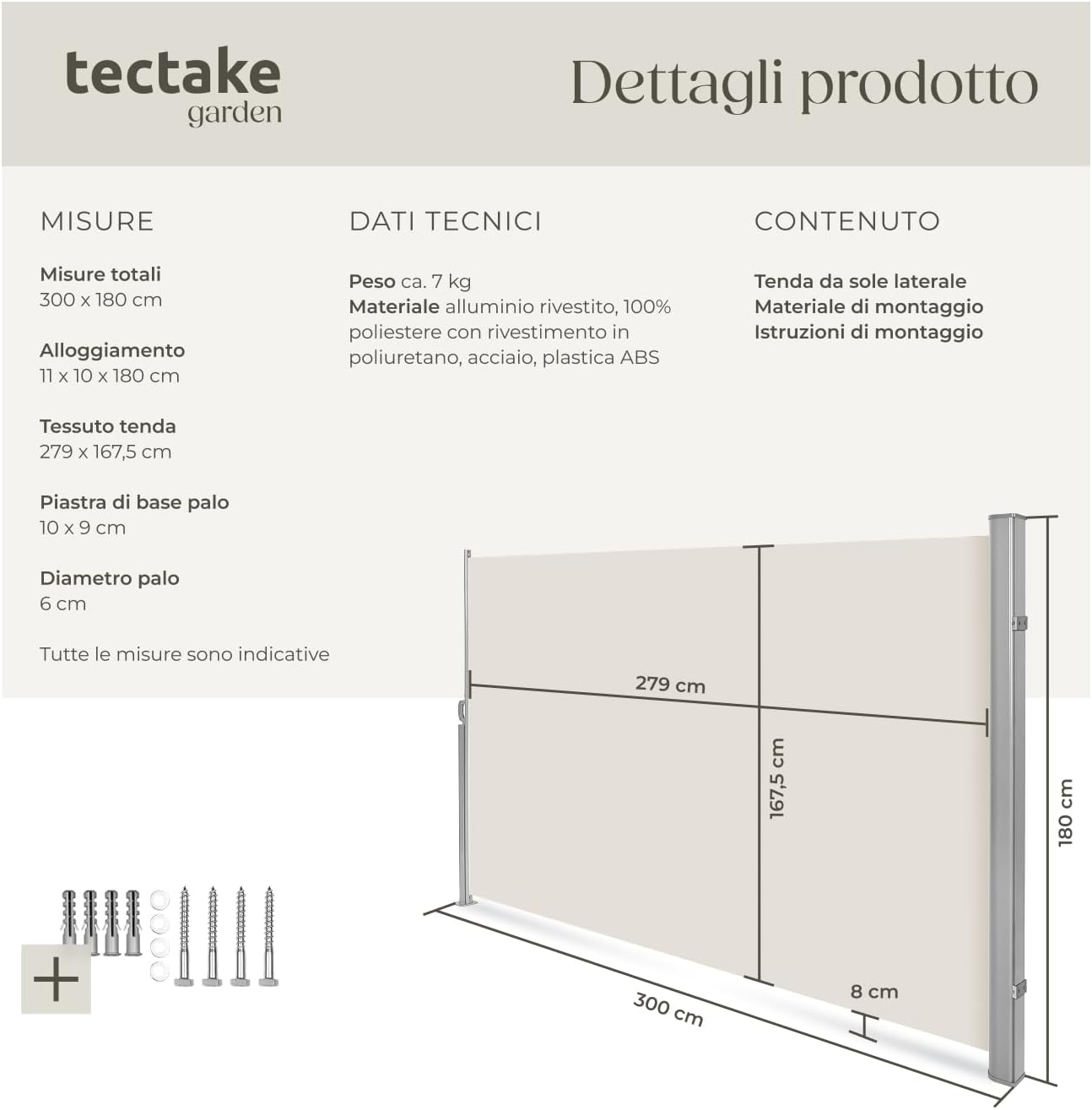

Figure 9: Product Details. This image provides a detailed overview of the product's measurements, technical data, and included contents. It shows total dimensions (300 x 180 cm), housing dimensions (11 x 10 x 180 cm), fabric dimensions (279 x 167.5 cm), base plate dimensions (10 x 9 cm), and pole diameter (6 cm). Technical data includes approximate weight (7 kg) and materials (aluminum, 100% polyester with polyurethane coating, steel, ABS plastic). Contents include the side sun awning, mounting material, and mounting instructions.
| Attribute | Value |
|---|---|
| Brand | TecTake |
| Model | 800289 |
| Color | Beige |
| Product Dimensions | 180 x 11 x 10 cm (Housing); 180 x 300 cm (Extended) |
| Material | Aluminum, Polyester (with PU coating) |
| Item Weight | 7.7 Kilograms |
| Max Extension Length | 300 cm |
Warranty and Support
For any questions, concerns, or issues not covered in this manual, please contact TecTake customer support. Information regarding warranty and return policies can typically be found on the retailer's website where the product was purchased.
- Return Policy: This product typically has a 14-day return policy for refund/replacement, as per standard retail terms.
- Seller Information: The product is sold by "tectake Italia". For direct support, please refer to the seller's contact information provided at the point of purchase or on the Amazon product page.
- Online Resources: Visit the official TecTake website for additional product information, FAQs, or to contact support.
