PROPLUS 900130 Diverter Handle Assembly for Sayco Faucets User Manual

Introduction

This manual provides instructions for the installation, operation, and maintenance of the PROPLUS 900130 Diverter Handle Assembly. This component is designed specifically for use with Sayco Faucets to control water flow diversion.

Product Overview

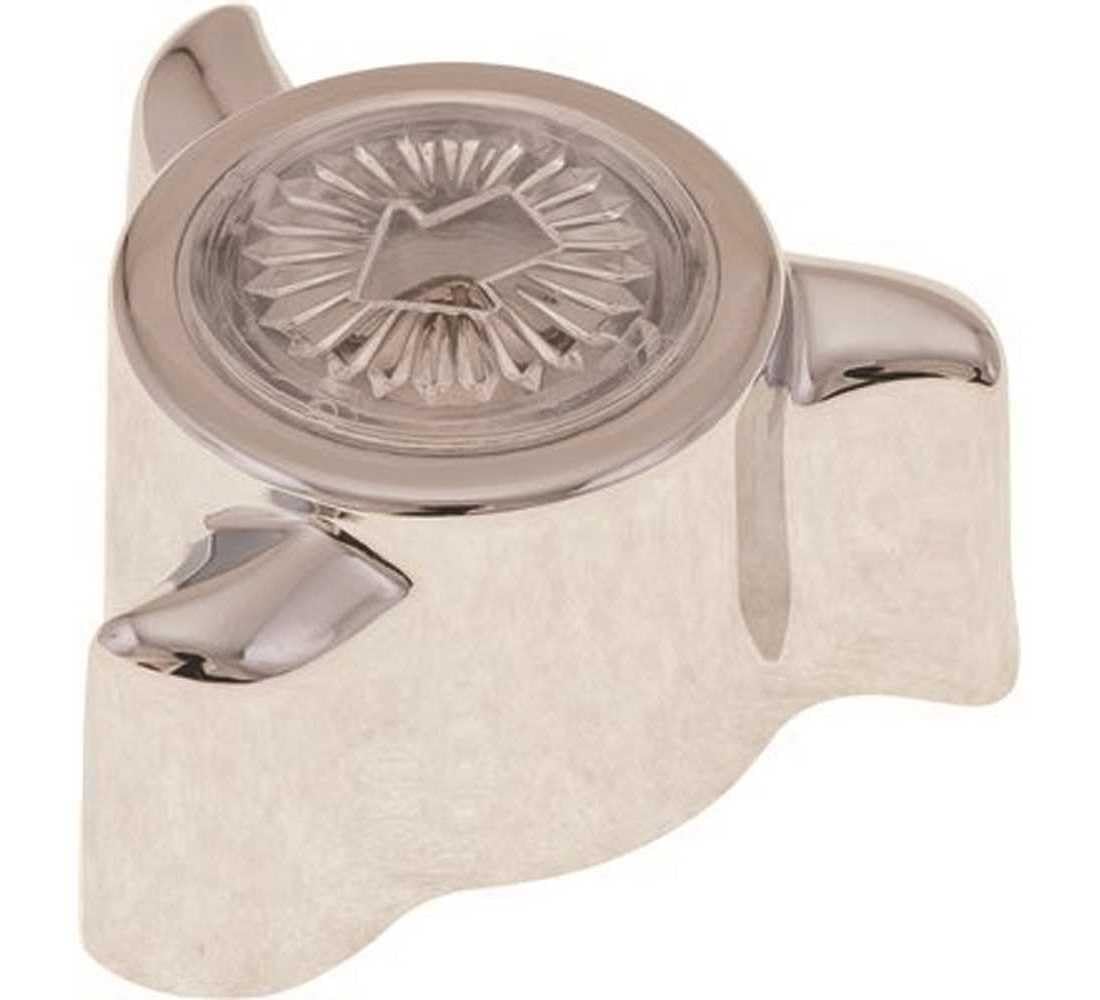

Figure 1: PROPLUS 900130 Diverter Handle Assembly. This image shows the chrome-finished PROPLUS 900130 diverter handle assembly. It features a central clear cap with a decorative pattern and a small lever on the side for operation.

The PROPLUS 900130 is a replacement diverter handle assembly. It is constructed from durable metal, ensuring longevity and reliable performance in plumbing applications.

Setup and Installation

Before beginning installation, ensure the main water supply to the faucet is turned off. Gather necessary tools, which may include a screwdriver, adjustable wrench, and plumber's tape.

1. Remove Old Handle: Carefully remove the existing diverter handle from the Sayco Faucet. This may involve unscrewing a set screw or prying off a decorative cap to access the screw.
2. Clean Area: Clean any debris or mineral buildup from the faucet stem and surrounding area.
3. Install New Handle: Align the PROPLUS 900130 Diverter Handle Assembly with the faucet stem. Push it firmly into place.
4. Secure Handle: Secure the new handle using the appropriate screw or fastening mechanism. Ensure it is snug but do not overtighten.
5. Test Functionality: Slowly turn on the water supply and test the diverter handle to ensure it operates smoothly and diverts water correctly between the faucet spout and shower. Check for any leaks.

If you are unsure about any step, it is recommended to consult a qualified plumber.

Operating Instructions

The PROPLUS 900130 Diverter Handle Assembly is designed for straightforward operation:

• Water Flow Control: Rotate or pull the handle to switch the water flow between the main faucet spout and the showerhead or other connected accessory.
• Smooth Movement: The handle should move smoothly without excessive force. If resistance is encountered, do not force the handle; inspect for obstructions or installation issues.

Maintenance

Regular maintenance helps ensure the longevity and proper function of your diverter handle assembly:

• Cleaning: Clean the handle regularly with a soft cloth and mild, non-abrasive soap. Avoid harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the finish.
• Inspection: Periodically check the handle for any signs of wear, looseness, or damage. Ensure all connections remain secure.
• Mineral Buildup: In areas with hard water, mineral deposits may accumulate. These can be gently removed with a vinegar solution, followed by rinsing with clean water.

Troubleshooting

If you encounter issues with your diverter handle, consider the following common solutions:

• Handle is Loose: If the handle feels loose, gently tighten the set screw (if applicable) or fastening mechanism. Do not overtighten.
• Water Not Diverting Properly:
  • Ensure the handle is fully engaged in the desired position.
  • Check for any obstructions or debris within the diverter mechanism.
  • If the issue persists, the internal diverter cartridge may need inspection or replacement.
• Leaks Around Handle Base:
  • Confirm the handle is properly seated and secured.
  • Inspect the O-rings or seals for damage or improper placement.

For persistent problems, professional plumbing assistance may be required.

Specifications

Warranty Information

Specific warranty details for the PROPLUS 900130 Diverter Handle Assembly are typically provided by the manufacturer or retailer at the time of purchase. Please refer to your purchase documentation or the manufacturer's official website for comprehensive warranty terms and conditions.

Support

For technical assistance, replacement parts, or further inquiries regarding the PROPLUS 900130 Diverter Handle Assembly, please contact the manufacturer, ProPlus, or your authorized dealer. Have your model number (900130) and purchase information ready when contacting support.
