1. Product Overview
The Whirlpool WKIC3C26 is a high-performance, fully integrated dishwasher designed for seamless integration into your kitchen cabinetry. Featuring an A++ energy efficiency rating, 8 wash programs, and a capacity for 14 place settings, it offers efficient and quiet operation at just 46 dB. This appliance is equipped with advanced technologies like PowerClean Pro and PowerDry for superior cleaning and drying results.

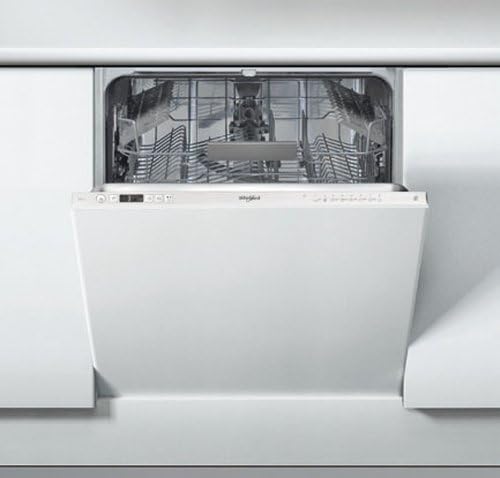

Image 1: Whirlpool WKIC3C26 Fully Integrated Dishwasher, shown installed in a kitchen cabinet with the door partially open.
2. What's in the Box
- Cutlery basket
- Drying system
- Drain hose
3. Specifications
| Feature | Value |
|---|---|
| Brand | Whirlpool |
| Model Number | WKIC3C26 |
| Product Dimensions (H x W x D) | 82 x 59.5 x 57 cm |
| Installation Dimensions (H x W x D) | 82-90 x 60 x 57 cm |
| Net Weight | 35.5 kg |
| Energy Efficiency Class | A++ |
| Noise Level | 46 dB |
| Place Settings | 14 |
| Number of Programs | 8 |
| Water Consumption (L/cycle) | 9 |
| Special Features | Leak sensor, Half-load, Rinse aid dispenser, Low water consumption, Remaining time indicator, Quick wash, Adjustable basket, Overflow protection, Leak protection, Safety lock |
| Material | Stainless Steel |
4. Setup and Installation
The Whirlpool WKIC3C26 is designed as a fully integrated dishwasher, meaning it will be concealed behind a custom kitchen cabinet door (not supplied). Ensure your cabinet opening meets the specified installation dimensions of 82-90 cm (Height) x 60 cm (Width) x 57 cm (Depth).
Before installation, verify that water supply and drainage connections are accessible and meet local regulations. The appliance includes an Overflow (anti-débordement) and Aquastop (anti-débordement et anti-fuite) system for enhanced safety against water leaks.
Image 2: A Whirlpool integrated dishwasher partially installed, showing the interior racks and control panel, ready for the custom cabinet door.
Adjust the appliance's feet to ensure it is level and securely positioned within the cabinet space. The rear foot is adjustable from the front for convenience. Once positioned, secure the dishwasher to the surrounding cabinetry according to the detailed instructions provided in the full installation guide (refer to the product packaging for the complete manual).
5. Operating Instructions
5.1. Loading the Dishwasher
The dishwasher features a flexible interior with a 3rd drawer, a height-adjustable upper basket, and foldable tines in both upper (0) and lower (4) baskets, along with 4 retractable balconies in the upper basket. A portable and divisible cutlery basket is also included. These features allow for versatile loading of various items, from large pots and pans to delicate glassware and numerous plates.
Image 3: Interior view of the Whirlpool WKIC3C26 dishwasher, showcasing the adjustable upper and lower racks and cutlery basket for flexible loading.
5.2. Selecting a Program
The digital display allows for easy program selection and monitoring. Choose from 8 programs to suit your needs:
- 6th Sense (45-60°C): Automatically adjusts wash cycle based on soil level.
- Pre-wash (Cold): For rinsing dishes before a full wash.
- Delicate (45°C): Gentle wash for fragile items.
- 1 Hour Wash&Dry (55°C): Quick wash and dry for lightly soiled items.
- Rapid (50°C, 30 min): Very quick wash for minimal soil.
- ECO (50°C): Energy-efficient program for normal soil.
- Half-load (50°C) / Daily (50°C): For smaller loads or everyday use.
- Intensive (65°C): For heavily soiled pots and pans.
- Antibacterial (65°C) / Silence (50°C): For enhanced hygiene or quiet operation.
- Self-cleaning (65°C): For maintaining the dishwasher's cleanliness.
5.3. Program Options
Enhance your wash cycle with these options:
- PowerClean Pro: Provides powerful jets for stubborn dirt.
- PowerDry: Ensures excellent drying results.
- Tablets: Optimizes performance when using all-in-one detergent tablets.
- Half-load - Multizone: Allows washing in specific baskets to save water and energy.
- Antibacterial: Increases wash temperature for improved hygiene.
- Turbo: Reduces program duration.
- Delayed Start (1-12h): Postpone the start of the wash cycle.
- Auto-Open Dry: The door automatically opens at the end of the cycle to release steam and allow fresh air in, ensuring perfectly dry dishes.
6. Maintenance
To ensure optimal performance and longevity of your dishwasher:
- Self-cleaning Program (65°C): Regularly run the dedicated self-cleaning program to maintain the internal hygiene of the appliance.
- Salt and Rinse Aid Indicators: Pay attention to the salt and rinse aid indicator lights on the digital display. Refill these compartments when the indicators illuminate to ensure effective cleaning and drying, preventing water spots and streaks.
- Filter Cleaning: Periodically clean the filters located at the bottom of the dishwasher to remove food debris and prevent blockages.
7. Warranty and Support
This Whirlpool WKIC3C26 dishwasher comes with a 2-year manufacturer's commercial warranty. For any technical assistance, repairs, or warranty claims, please contact Whirlpool customer support or your retailer. Ensure you have your proof of purchase and model number (WKIC3C26) ready when contacting support.
