1. Introduction
The Runleader RL-HM035R is a digital inductive tachometer and hour meter designed for 2-stroke and 4-stroke gasoline engines. It accurately tracks engine RPMs and total operating hours, providing essential data for engine maintenance and performance monitoring. This device features a backlit LCD display for clear visibility and includes functions for job timing, maintenance reminders, maximum RPM recording, and overspeed alerts.
2. Safety Information
Please read this manual thoroughly before installation and operation. Failure to follow instructions may result in damage to the device or engine, or personal injury.
- Ensure the engine is off and cool before attempting installation or maintenance.
- Do not attempt to modify the device. Any modifications will void the warranty.
- Keep the device away from extreme temperatures, corrosive materials, and strong magnetic fields.
- Dispose of batteries according to local regulations.
3. Product Features
- Digital Tachometer and Hour Meter for 2 or 4 Stroke Gasoline Engines.
- Backlit LCD display for enhanced visibility.
- Timing System: Total running hours (TOT), resettable partial running time (JOB), and settable maintenance timer (SVC 0-200 hours).
- RPM Measuring System: Displays current engine RPM, records and recalls maximum RPM, and features a programmable overspeed warning function.
- Adjustable RPM refresh rate (0.5s or 1s).
- Replaceable CR2032 battery.
- Waterproof rating: IP65.
- CE & RoHS Certified.
4. Specifications
| Parameter | Value |
|---|---|
| Brand | Runleader |
| Model | RL-HM035R |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Dimensions (L x W x H) | 6.7 x 3.5 x 1.8 cm |
| Weight | 100 Grams |
| Induction Wire Type | UL2464 26AWG/2C stranded wire (1.5M length) |
| Waterproof Rate | IP65 |
| Display Screen | LCD with Green Backlight (40.9 x 16.9 mm) |
| Refresh Rate | 0.5S / 1S (Selectable) |
| Hours Range | 0-99999H (0.1H accuracy) |
| RPM Range | 0-20000RPM (10RPM accuracy) |
| RPM Alert Setting Range | 1000-20000RPM |
| Battery | CR2032 210mAH (Replaceable) |
| Maintenance Timer | 0-200H |
| Applicable Engine Types | 2-Stroke (1, 2, 3 Cylinders), 4-Stroke (1, 2, 3, 4, 5, 6, 8, 12, 16 Cylinders) |
Figure 4.1: Product dimensions of the RL-HM035R tachometer in millimeters.
5. Setup and Installation
5.1 Wiring the Inductive Cable
- Locate the spark plug wire on your engine.
- Wrap the inductive signal wire (approximately 1.5 meters long) around the spark plug wire 5 to 7 times. Ensure a snug fit for reliable signal detection.
- Secure the wrapped wire with zip ties or electrical tape to prevent it from coming loose due to vibration.
- Route the remaining wire and the tachometer to a suitable mounting location, ensuring the wire is clear of moving parts and heat sources.
Figure 5.1: Illustration of wrapping the inductive signal wire around the spark plug cable.
5.2 Engine Firing Pattern Setting
The tachometer needs to be configured for your specific engine type to ensure accurate RPM readings. Refer to the table below to select the correct firing pattern.
Figure 5.2: Table showing programmable firing patterns for various engine types.
(Note: The image above also contains the wiring diagram. The table for firing patterns is part of this image.)
To set the firing pattern:
- With the device off, press and hold the 'MENU' button until the setting mode appears.
- Use the 'SET' button to cycle through the firing patterns (e.g., 1P1R, 2P1R).
- Once the correct pattern for your engine is displayed, press 'MENU' to confirm and exit.
6. Operating Instructions
6.1 Display Modes
The RL-HM035R features several display modes accessible via the 'MENU' and 'SET' buttons.
- Total Hours (TOT): Displays the cumulative total operating hours of the engine. This value is non-resettable.
- Real-time RPM: Displays the current engine revolutions per minute when the engine is running.
- Job Timer (JOB): Measures the duration of a specific task or operation. This timer is resettable.
- Service Timer (SVC): A countdown timer for maintenance reminders, settable from 0 to 200 hours.
- Maximum RPM (MAX RPM): Records and displays the highest RPM achieved during operation.
- Alert RPM (ALERT RPM): Allows setting a programmable RPM threshold. An icon will flash as a warning reminder if this threshold is exceeded.
Figure 6.1: Display showing total accumulated hours (TOT) when the engine is off.
Figure 6.2: Display showing real-time RPM when the engine is running.

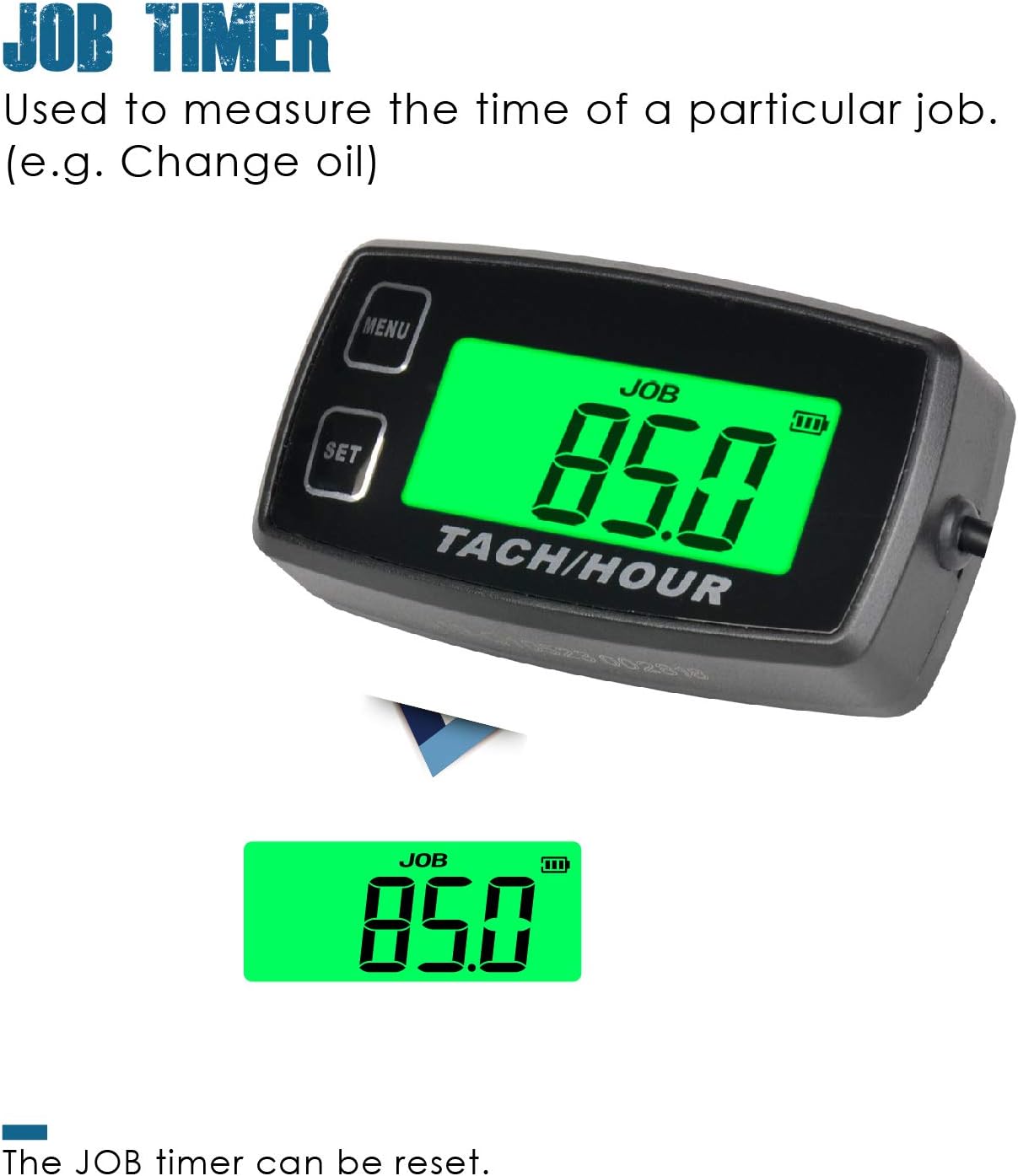

Figure 6.3: Display showing the resettable job timer (JOB).
Figure 6.4: Display showing the service timer (SVC) for maintenance tracking.
Figure 6.5: Display showing the recorded maximum RPM value.
Figure 6.6: Display showing the programmable alert RPM setting with a flashing warning icon.
6.2 Button Functions
- MENU Button: Used to cycle through different display modes and enter/exit setting menus.
- SET Button: Used to adjust values within setting menus or reset specific timers (e.g., JOB timer).
7. Maintenance
7.1 Battery Replacement
The RL-HM035R uses a replaceable CR2032 battery. When the battery level is low, a reminder will appear on the display.
- Carefully remove the back cover of the device.
- Remove the old CR2032 battery.
- Insert a new CR2032 battery, ensuring correct polarity.
- Replace the back cover securely to maintain the IP65 waterproof rating.
Figure 7.1: Diagram illustrating the battery replacement process for the RL-HM035R.
7.2 Cleaning
Wipe the device with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No display or dim display | Low or dead battery. | Replace the CR2032 battery. |
| Inaccurate RPM readings | Incorrect firing pattern setting. Loose or insufficient wraps of inductive wire. | Verify engine firing pattern setting. Ensure inductive wire is wrapped 5-7 times tightly around the spark plug wire. |
| Hour meter not accumulating | Inductive wire not properly connected or damaged. | Check the inductive wire connection to the spark plug. Ensure the engine is running for hours to accumulate. |
9. Scope of Application
The Runleader RL-HM035R is suitable for a wide range of gasoline-powered engines, including:
- Lawn Mowers
- ATVs (All-Terrain Vehicles)
- Compressors
- Generators
- Motorcycles
- Chainsaws
- Outboard Motors
- Snowmobiles
- PWC (Personal Watercraft)
- Marine Boats
Figure 9.1: Visual representation of common applications for the RL-HM035R.
10. Warranty and Support
For warranty information and technical support, please refer to the official Runleader website or contact your authorized dealer. Keep your purchase receipt as proof of purchase.
