1. Product Overview
The GRIPPLE No. 2 Y-Hook Cable-Leg System is designed for efficient and secure single-point suspension, allowing two distinct points to be suspended using a single Gripple fastener. This system features two cable legs that enhance the center of gravity and improve overall stability of the suspended item. It is particularly suitable for applications requiring future maintenance or access, especially when paired with a snap hook end fixing.
Each pack contains 10 units of the Y-Hook Cable-Leg system. The No. 2 size has a maximum safe working load of 100 lbs.
Figure 1: GRIPPLE No. 2 Y-Hook Cable-Leg System. This image shows the complete Y-hook assembly, featuring a single top cable leading to a Gripple fastener, which then splits into two separate cable legs, each terminating with a hook for attachment.
2. Safety Information
Always adhere to local building codes and safety regulations when installing suspension systems. Ensure the maximum safe working load of 100 lbs is never exceeded. Regularly inspect the cables and fasteners for any signs of wear, damage, or corrosion. Do not use if any components appear compromised. Installation should only be performed by qualified personnel.
- Do not exceed the maximum safe working load of 100 lbs.
- Always wear appropriate personal protective equipment (PPE) during installation.
- Ensure all connections are secure before applying load.
- Inspect components regularly for wear or damage.
- Consult a professional if unsure about installation procedures.
3. Components
The GRIPPLE Y-Hook Cable-Leg System consists of the following primary components:
- Single Suspension Cable: The main cable extending from the top, designed for connection to a single anchor point.
- Gripple Fastener: An integrated mechanism that allows for quick and easy adjustment of the cable length.
- Two Cable Legs: Two separate cables branching from the Gripple fastener, providing dual suspension points.
- Y-Hook End Fixings: Hooks at the end of each cable leg for attaching to the suspended item.
Figure 2: Close-up view of the GRIPPLE Y-Hook. This image highlights the detail of the Y-shaped cable assembly, showing the Gripple mechanism where the single cable splits into two legs, each ending with a hook.
4. Setup and Installation
Follow these steps for proper installation of the GRIPPLE Y-Hook Cable-Leg System:
- Identify Anchor Point: Securely attach the single suspension cable to a suitable overhead anchor point. Ensure the anchor point can support the intended load, including the weight of the suspended item and the Y-Hook system.
- Attach to Suspended Item: Connect the two Y-Hook end fixings to the designated attachment points on the item to be suspended. Ensure both hooks are securely fastened.
- Adjust Cable Length: Use the integrated Gripple fastener to adjust the length of the cable. To shorten, simply push the cable through the Gripple. To lengthen, insert the Gripple adjustment key (sold separately) into the release mechanism and pull the cable. Ensure both legs are of appropriate and equal length for balanced suspension.
- Verify Security: After adjustment, gently apply pressure to the suspended item to ensure all connections are secure and the system is stable.
For optimal stability, ensure the two cable legs are spread adequately to provide a wide base of support for the suspended object.
5. Operating Instructions
The GRIPPLE Y-Hook Cable-Leg System is designed for static suspension. Once installed and adjusted, it requires minimal "operation." Its primary function is to securely hold suspended items. The system's design facilitates easy access for maintenance or repositioning of the suspended item by allowing quick adjustments or detachment of the Y-hooks.
- Load Application: Apply load gradually and ensure it is evenly distributed across both cable legs.
- Adjustments: Minor height adjustments can be made by manipulating the cable through the Gripple fastener. For significant changes or to release tension, use the appropriate Gripple adjustment tool.
- Maintenance Access: The Y-hook design is ideal for items requiring periodic access. The hooks can be easily disengaged and re-engaged as needed, provided the load is temporarily supported.
6. Maintenance
Regular maintenance ensures the longevity and safety of your GRIPPLE Y-Hook Cable-Leg System:
- Visual Inspection: Periodically inspect all components (cables, Gripple fastener, hooks) for signs of wear, fraying, bending, corrosion, or other damage.
- Cleanliness: Keep the system clean and free from excessive dust, dirt, or corrosive substances.
- Load Check: Re-verify that the suspended load does not exceed the 100 lbs maximum safe working load.
- Replacement: If any component shows signs of significant wear or damage, replace the entire Y-Hook Cable-Leg System immediately. Do not attempt to repair damaged components.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| System appears unstable or sways excessively. | Uneven cable leg lengths; insufficient spread of legs; overloaded. | Ensure cable legs are of equal length. Increase the spread between the two attachment points on the suspended item if possible. Verify load does not exceed 100 lbs. |
| Cable cannot be adjusted through Gripple. | Cable is under tension; Gripple mechanism is jammed; incorrect adjustment method. | Reduce tension on the cable before attempting adjustment. Ensure the Gripple adjustment key is used correctly for lengthening. Inspect for debris in the mechanism. |
| Visible wear or damage on cable/hooks. | Normal wear and tear; excessive load; improper installation; environmental factors. | Immediately cease use. Replace the entire GRIPPLE Y-Hook Cable-Leg System. Do not attempt to repair. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | YHF2-HG-10FT-460MM |
| Brand | GRIPPLE |
| Cable Length | 10 feet (approx. 3.05 meters) |
| Leg Length | 460 mm (18 inches) |
| Maximum Safe Working Load | 100 lbs (approx. 45.36 kg) |
| Quantity per Pack | 10 units |
| Approval | UL Approved |
| Origin | U.S.A Made |

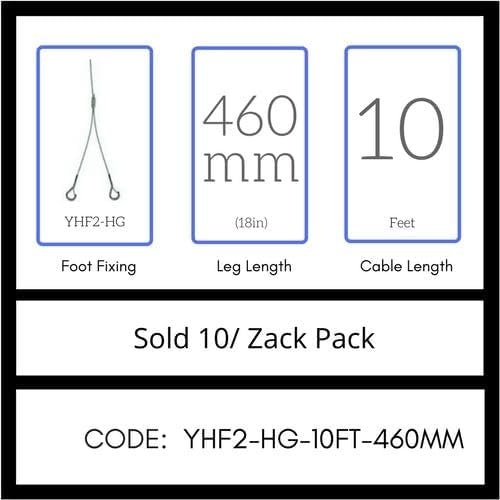

Figure 3: GRIPPLE Y-Hook Specifications Diagram. This diagram illustrates key dimensions and identifiers: Foot Fixing (YHF2-HG), Leg Length (460mm or 18in), and Cable Length (10 Feet). It also indicates the product is sold as a 10-pack and provides the full product code: YHF2-HG-10FT-460MM.
9. Warranty and Support
For information regarding product warranty, technical support, or to purchase additional accessories, please visit the official GRIPPLE website or contact their customer service department. Keep your purchase receipt as proof of purchase.
GRIPPLE Official Website: www.gripple.com
For specific inquiries related to this product (Model: YHF2-HG-10FT-460MM), please reference the model number when contacting support.
