1. Introduction
This instruction manual provides essential information for the proper installation, operation, and maintenance of the Direct Store Parts Kit DG149. This kit is designed to replace worn or damaged components in compatible Charbroil gas grills, restoring their functionality and extending their lifespan.
Compatibility: This kit is a replacement for Charbroil 463247310 and 463257010 Commercial Series 4 Burner Gas Grills. It replaces original part numbers G515-2200-W1, G5152200W1, G501-0008-W1, and G5010008W1.
Important: Before purchasing and installing, it is crucial to verify the size and shape of your existing grill parts against the specifications provided in this manual to ensure proper fitment.
2. Product Components
The Direct Store Parts Kit DG149 includes the following components:
- 4 x Stainless Steel Burners
- 3 x Stainless Steel Carry-Over Tubes
- 4 x Porcelain Steel Heat Plates (Heat Tents/Shields)
Image 2.1: Overview of the Direct Store Parts Kit DG149, showing all included replacement components for a gas grill.
3. Setup and Installation
Replacing your grill parts can improve performance and safety. Follow these general steps for installation. Always refer to your grill's original manufacturer manual for specific disassembly and reassembly instructions.
Safety Precautions:
- Ensure the grill is completely cool before beginning any work.
- Disconnect the gas supply (turn off the gas tank valve and disconnect the regulator, or turn off the natural gas supply valve).
- Wear appropriate safety gear, such as gloves, to protect your hands.
Installation Steps:
- Disassembly: Carefully remove the cooking grates, flame tamers (if present), and any other components covering the burners and heat shields.
- Remove Old Parts: Detach and remove the old burners, crossover tubes, and heat shields. Note their orientation and connections for reference during reassembly.
- Install New Burners: Place the new stainless steel burners into their respective positions. Ensure they are properly seated over the gas valve orifices at one end and supported at the other.
- Install New Crossover Tubes: Attach the stainless steel carry-over tubes between the burners. These tubes facilitate ignition across multiple burners. The kit includes necessary clips for these tubes.
- Install New Heat Plates: Position the porcelain steel heat plates above the burners. These protect the burners and help distribute heat evenly.
- Reassemble Grill: Replace any removed components such as flame tamers and cooking grates.
- Reconnect Gas: Reconnect the gas supply and check all connections for leaks using a soapy water solution. Bubbles indicate a leak.
- Test Ignition: With the grill lid open, turn on the gas and attempt to ignite the burners to ensure proper operation.
Image 3.1: Individual components with their respective dimensions for verification during installation.

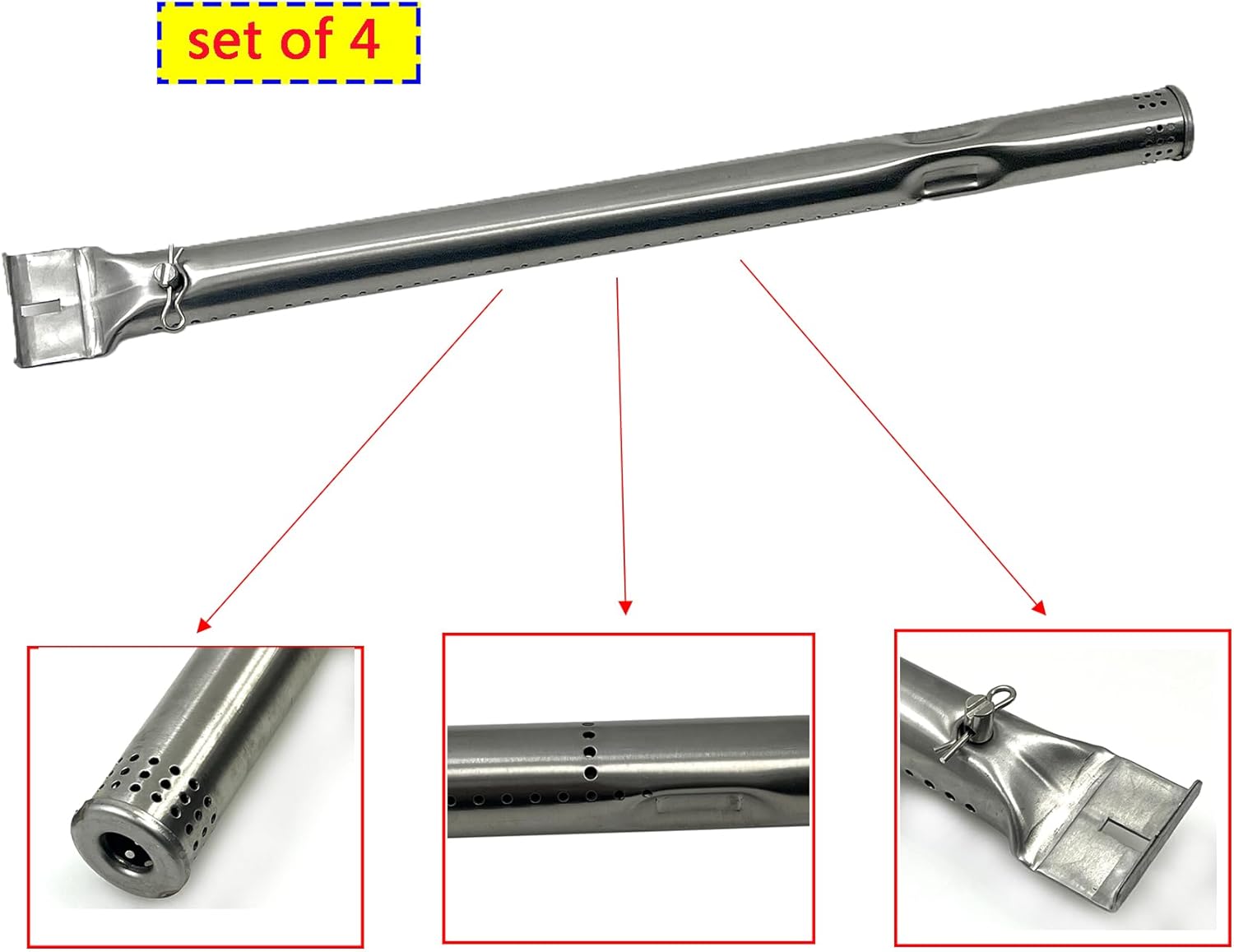

Image 3.2: Detailed view of the stainless steel burner, highlighting key features for proper placement.

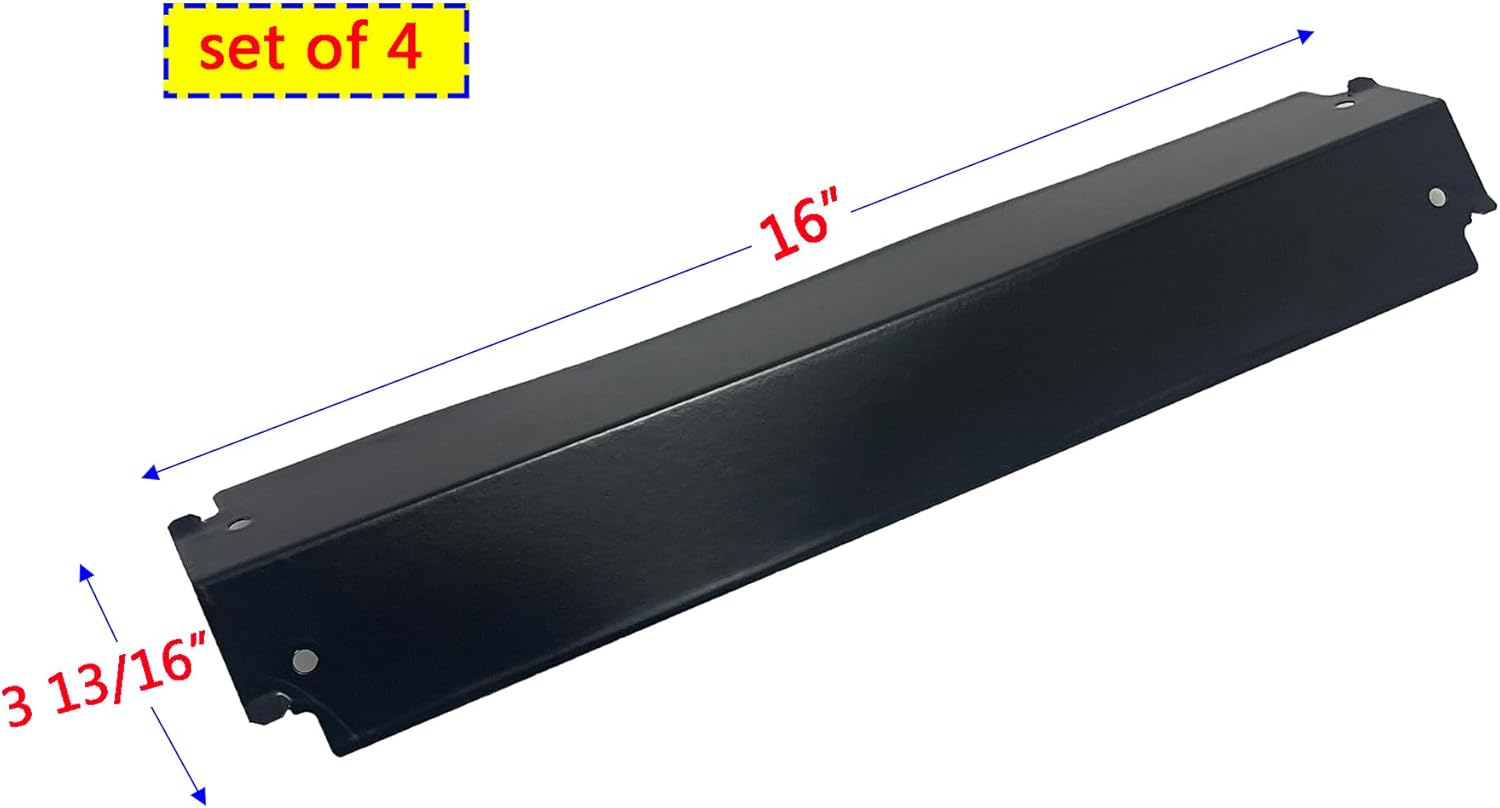

Image 3.3: The porcelain steel heat plate, showing its dimensions for accurate fitment.
Image 3.4: The three stainless steel crossover tubes included in the kit, along with their attachment hardware.
4. Operating Considerations
After installing new components, observe the grill's performance during initial use.
- Burner Output: The new burners may have slightly different gas port sizes compared to original parts. This can result in a hotter flame. It may be necessary to adjust burner control knobs to a lower setting than previously used to achieve desired cooking temperatures.
- Crossover Tube Function: For the crossover tubes to effectively transfer flame between burners, ensure that all gas tubes connected by the crossover tubes have their gas supply turned on.
- Even Heating: Monitor for even heat distribution across the cooking surface. Minor adjustments to burner placement or heat shield positioning may be required to optimize performance.
5. Maintenance
Regular cleaning and maintenance will prolong the life of your grill parts and ensure safe operation.
- Cleaning Heat Plates: The porcelain steel heat plates feature a smooth, non-stick surface for easy cleaning. After the grill has cooled, remove the heat plates. Soak them in hot water with a mild detergent for a few minutes. Use a brush to remove any accumulated grease or food residue. Rinse thoroughly and dry completely before reinstalling.
- Cleaning Burners and Crossover Tubes: Periodically inspect burners and crossover tubes for blockages (e.g., from food debris or insects). Use a soft brush or pipe cleaner to clear any obstructions. Ensure all gas ports are clear for optimal flame.
- Rust Prevention: While made from durable materials, proper care helps prevent corrosion. Always ensure components are dry before storage or prolonged periods of non-use. Store the grill in a dry environment or use a grill cover to protect against moisture.
6. Troubleshooting
This section addresses common issues that may arise during or after the installation of your replacement parts.
- Parts Do Not Fit: Double-check the dimensions of the replacement parts against your original grill components and the specifications listed in Section 7. Ensure your grill model number matches the compatible models.
- Igniter Clips Not Holding Burners: Some grill igniter clips may not perfectly align with the indentations on the new burner tubes. A common workaround is to use small hose clamps to secure the igniter wires to the burner tubes, ensuring proper spark delivery.
- Uneven Heating or Hot Spots: Verify that all burners are properly seated over the gas orifices and that the heat plates are correctly positioned. Ensure all gas ports on the burners are clear. Adjust burner control knobs as needed to achieve balanced heat.
- Premature Rusting: Ensure components are regularly cleaned and thoroughly dried after use. Store the grill in a dry, covered area to minimize exposure to moisture and prevent corrosion.
7. Specifications
Detailed specifications for the components included in the Direct Store Parts Kit DG149:
Image 7.1: Key dimensions of the burner, heat plate, and crossover tubes for reference.
| Component | Dimensions | Material |
|---|---|---|
| Burner | 15 15/16" x 1" | Stainless Steel |
| Heat Plate (Heat Tent) | 16" x 3 13/16" | Porcelain Steel |
| Carry-Over Tube | 6 3/8" | Stainless Steel |
Product Dimensions (Packaged): 16 x 4 x 2 inches
Item Weight: 4.27 pounds
8. Support
For any questions, concerns, or assistance regarding the Direct Store Parts Kit DG149, please contact Direct Store customer service. We are committed to providing satisfactory solutions and support for our products.
Contact Information: Please refer to your purchase documentation or the Direct Store brand page on Amazon for the most current contact details.
