Haotian FSR30-W White Storage Bench User Manual

1. Introduction

This manual provides essential information for the assembly, operation, and maintenance of your Haotian FSR30-W White Storage Bench. Please read these instructions carefully before use to ensure proper function and longevity of the product.

Important Safety Information:

• Do not exceed the maximum weight limit of 220.5 lbs (100 kg) on the bench.
• Avoid exposing the bench to excessive moisture or direct sunlight.
• Ensure all components are securely fastened during assembly and periodically check for tightness.

Image 1.1: The Haotian FSR30-W White Storage Bench, featuring three storage compartments and a comfortable grey padded seat.

2. Package Contents

Before beginning assembly, verify that all parts and hardware are present. Refer to the detailed parts list included in the product packaging. If any components are missing or damaged, please contact customer support.

• Bench frame components (labeled boards)
• 3 Storage drawers/boxes
• 1 Padded seat cushion
• Assembly hardware (screws, dowels, etc.)
• Assembly instruction manual

3. Assembly Instructions

The Haotian FSR30-W storage bench is designed for straightforward assembly. A detailed, step-by-step instruction manual is included in your product packaging. All boards and parts are labeled to facilitate the process.

1. Unpack and Identify Parts: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Match each part to the corresponding label in the instruction manual.
2. Assemble the Main Frame: Follow the numerical sequence in the provided manual to connect the main frame pieces using the designated hardware. Ensure all connections are snug but do not overtighten.
3. Construct the Drawers: Assemble the three storage drawers according to the separate instructions for these components.
4. Insert Drawers: Once the main frame and drawers are complete, slide the drawers into their respective compartments.
5. Place the Seat Cushion: Position the padded seat cushion on top of the bench.
6. Final Check: Verify that all screws are tightened and the bench is stable before use.

Image 3.1: Dimensional overview of the storage bench and its individual storage boxes, indicating overall width, depth, and height.

4. Operating Instructions

The Haotian FSR30-W storage bench is designed for versatile use in various areas of your home, such as entryways, hallways, or bedrooms.

• Seating: The padded seat cushion provides a comfortable surface for sitting, ideal for changing shoes or taking a brief rest. The cushion is removable and can be placed or removed as needed.
• Storage: The three pull-out storage boxes offer ample space for organizing shoes, scarves, small blankets, books, or other items. The U-shaped handle design on the drawers facilitates easy opening and closing and aids in ventilation.
• Weight Capacity: The bench has a maximum load capacity of 220.5 lbs (100 kg). Do not exceed this limit to prevent damage or injury.

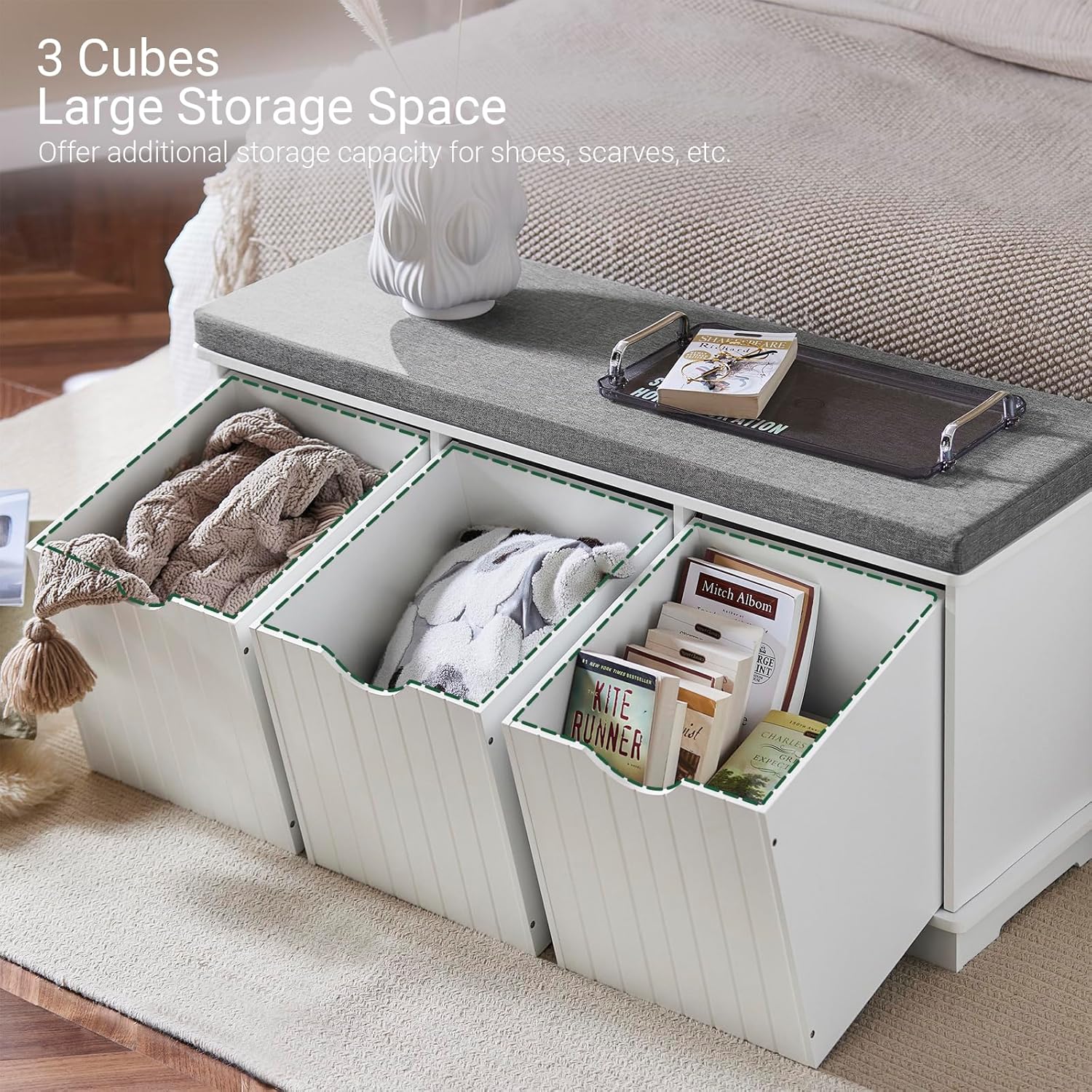

Image 4.1: The storage bench with its three drawers pulled out, demonstrating their capacity for storing various household items.

Image 4.2: A detailed view of the 1.6-inch thick padded seat cushion, designed for comfort.

5. Maintenance

Proper care will help maintain the appearance and functionality of your storage bench.

• Cleaning: Wipe the bench surfaces with a dry, soft cloth. For stubborn marks, a slightly damp cloth followed by a dry cloth can be used. Avoid abrasive cleaners or harsh chemicals.
• Cushion Care: The fabric cushion can be spot cleaned with a mild detergent and water. Allow to air dry completely.
• Inspection: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary.
• Environment: Keep the bench in a dry environment and away from direct heat sources or prolonged exposure to sunlight to prevent material degradation.

6. Troubleshooting

If you encounter any issues with your Haotian FSR30-W storage bench, consider the following common solutions:

• Bench Instability: Ensure all assembly screws are fully tightened. Check that the bench is placed on a flat, even surface.
• Drawers Sticking: Verify that the drawers are inserted correctly and are not obstructed by items inside or around the bench. Ensure the drawer components were assembled correctly.
• Cushion Slipping: While the cushion is designed to be removable, if excessive slipping occurs, consider placing non-slip pads underneath it.

For issues not resolved by these steps, please contact Haotian customer support.

7. Specifications

8. Warranty and Support

For information regarding product warranty, returns, or technical support, please refer to the documentation included with your purchase or contact Haotian customer service directly. Contact details can typically be found on the product packaging or the official Haotian website.
