Introduction
This manual provides instructions for the installation, maintenance, and troubleshooting of the Iwata Air Valve, Model I 609 1. This component is designed to regulate airflow within compatible Iwata airbrushes, ensuring precise control during operation. Please read these instructions carefully before installation and use.
Compatibility
The Iwata Air Valve (Model I 609 1) is compatible with the following Iwata airbrush series and models:
- ECLIPSE Series: HP-BS, HP-CS, HP-BCS, HP-SBS
- REVOLUTION Series: HP-AR, HP-BR, HP-CR, HP-BCR, HP-SAR
- KUSTOM Series: HP-KCS
This air valve is a direct replacement part for the original air valve in these models.
Parts Included
The package for the Iwata Air Valve (Model I 609 1) typically includes:
- 1 x Iwata Air Valve (Model I 609 1)
- 1 x Air Valve Key #19 (for installation/removal)
Setup and Installation
Follow these steps to install the Iwata Air Valve into your compatible airbrush:
- Preparation: Ensure your airbrush is disconnected from the air source and is clean.
- Remove Old Air Valve: If replacing an existing valve, use the Air Valve Key #19 to carefully unscrew and remove the old air valve from the airbrush body. Turn counter-clockwise to loosen.
- Insert New Air Valve: Place the new Iwata Air Valve into the valve guide opening in the airbrush body.
- Tighten Air Valve: Use the Air Valve Key #19 to gently screw the new air valve into place. Turn clockwise to tighten. Do not overtighten, as this can damage the airbrush body or the valve. The valve should be snug but not excessively tight.
- Test Connection: Reconnect your airbrush to the air source and perform a test spray to ensure proper function and no air leaks.

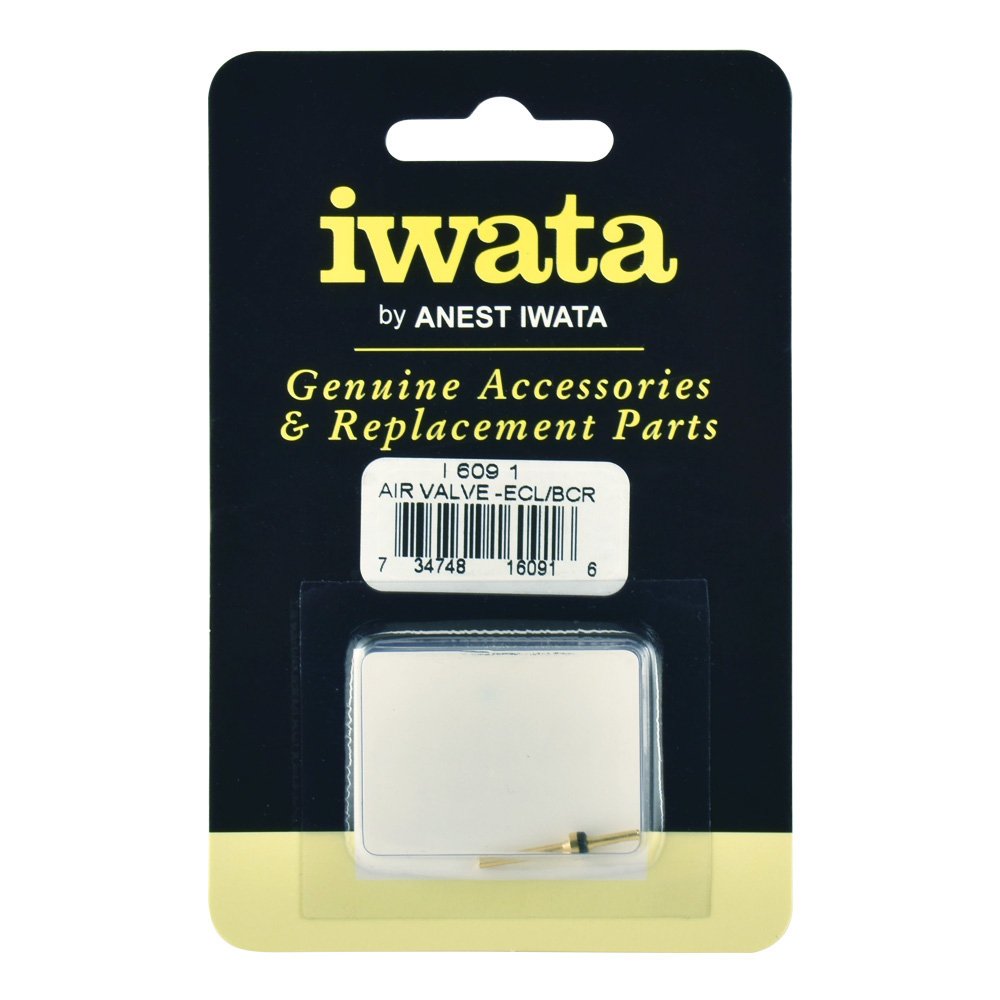

Image: The Iwata Air Valve (Model I 609 1) shown alongside the Air Valve Key #19, used for installation and removal. The valve is a small metallic component with threading, and the key is a specialized tool designed to fit its grooves for secure handling.
Operating Principles
The air valve is a critical component that controls the flow of air to the airbrush's nozzle. When the trigger is depressed, the air valve opens, allowing compressed air to pass through. The degree to which the trigger is depressed directly correlates to the amount of air released, enabling fine control over your spray pattern. Ensure the air valve moves freely and smoothly for optimal performance.
Maintenance
Proper maintenance extends the life of your air valve and ensures consistent performance:
- Regular Cleaning: After each use, flush your airbrush thoroughly. If paint or debris enters the air valve area, it can cause sticking or leaks.
- Disassembly for Cleaning: If the air valve becomes sticky or unresponsive, carefully remove it using the Air Valve Key #19. Clean the valve and its housing with an appropriate airbrush cleaner.
- Lubrication: Apply a tiny amount of airbrush-safe lubricant (e.g., Iwata Lube) to the air valve stem and O-rings (if present) to ensure smooth operation. Avoid over-lubrication.
- Inspection: Periodically inspect the air valve for wear, especially the O-rings. Replace worn components as needed to prevent air leaks.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Air leaks from trigger area | Damaged or worn air valve O-rings; improperly seated air valve. | Inspect and replace O-rings. Ensure air valve is securely but not overtightened. |
| Trigger sticks or feels stiff | Paint buildup or debris in air valve mechanism; lack of lubrication. | Disassemble and thoroughly clean the air valve. Apply a small amount of airbrush lubricant. |
| No air flow when trigger is pressed | Air valve stuck closed; obstruction in air path. | Clean and lubricate air valve. Check for blockages in the airbrush's air passages. |
Specifications
- Model Number: I 609 1
- Material: Metal
- Item Dimensions (L x W x H): 0.5 x 3 x 4.63 inches
- Item Weight: 0.01 Kilograms
- Exterior Finish: Metallic finish
- Inlet Connection Type: Female Thread
- Outlet Connection Type: Female Thread
- Number of Ports: 2
- Outlet Connection Size: 0.13 Inches
- Valve Type: Needle Valve
- UPC: 734748160916
- Manufacturer: IWATA
Warranty and Support
For specific warranty information regarding your Iwata Air Valve (Model I 609 1), please refer to the documentation provided with your original airbrush purchase or visit the official Iwata website. For technical support, replacement parts, or service inquiries, please contact Iwata customer service directly. Keep your purchase receipt as proof of purchase.
Iwata Official Website: www.iwata-airbrush.com
