JET JWL-1442VS

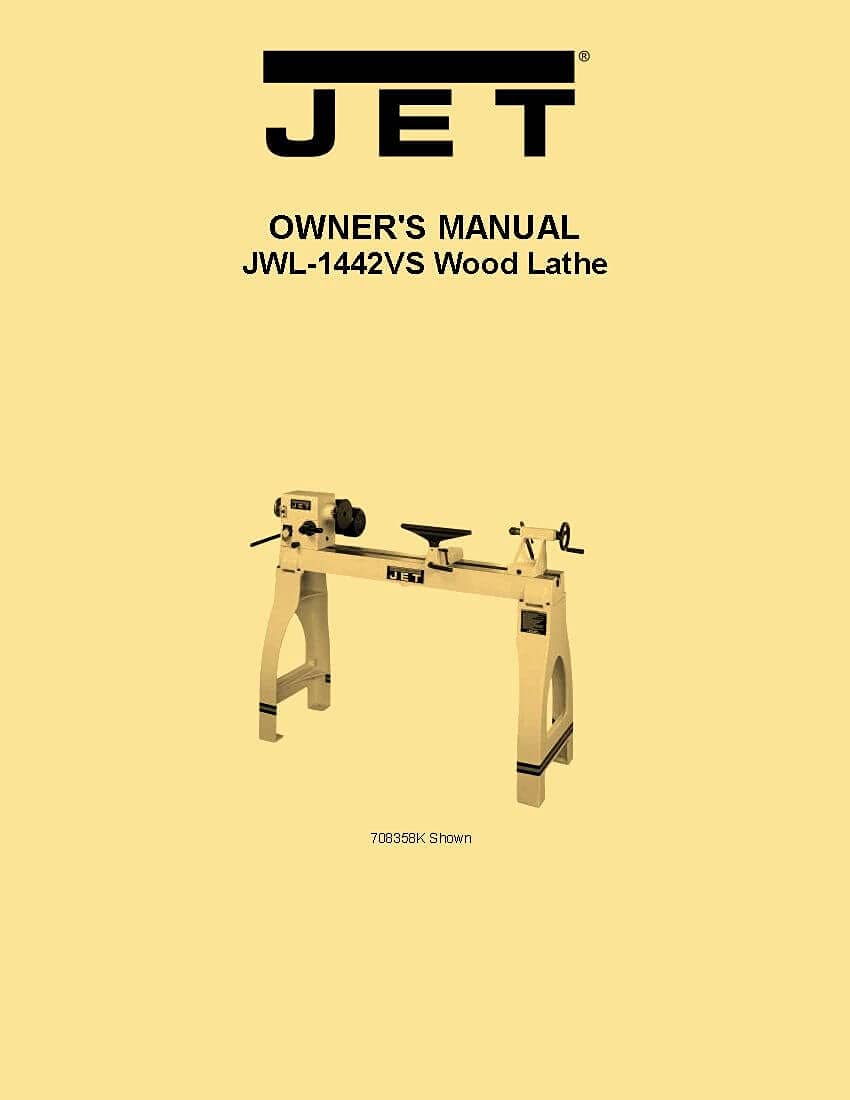

JET JWL-1442VS Wood Lathe Instruction Manual

Model: JWL-1442VS

Introduction

The JET JWL-1442VS lathe is a high-quality tool designed for superior service. To achieve maximum performance and enjoyment from your new lathe, please review this entire manual before beginning assembly and operation.

Warranty and Support

The JET JWL-1442VS, like all JET products, is supported by a nationwide network of authorized distributors and service centers. For parts or service, please contact your nearest distributor. Parts are also available directly from JET by calling 1-800-274-6848.

Specifications

Detailed specifications for the JET JWL-1442VS Wood Lathe, including electrical requirements (115V and 230V operation), can be found in the comprehensive manual. Please refer to the full document for complete technical data.

Setup and Assembly

Contents of the Shipping Container

Upon receiving your JET JWL-1442VS Wood Lathe, carefully inspect the shipping container for any damage. Verify that all components listed in the packing list are present before proceeding with assembly. Report any missing or damaged parts immediately to your distributor.

Unpacking and Cleanup

Remove all packing materials and protective coatings from the lathe components. Clean any residual oil or grease using a suitable degreaser. Ensure the work area is clear and well-lit before beginning assembly.

Assembly

Follow these general steps for assembling your wood lathe. Specific details for each component are provided below.

Stand Legs (Optional Accessory)

  1. Remove the headstock, tailstock, and tool rest. With assistance, lift the lathe bed and place it onto a workbench.
  2. Angle the lathe bed to access the stand leg mounting holes. Refer to Figure 2 for visual guidance.
  3. Thread the adjustable feet (A, Figure 2) into the stand legs (B, Figure 2). A flat spot on the shaft accommodates a wrench. Thread a 5/16 hex nut (C, Figure 2) onto the shaft, leaving it loose.
  4. Mount each leg to the lathe bed using four 5/16"-18 x 1-1/2" hex socket cap screws (D, Figure 2).
  5. Repeat the process for the other leg.
  6. Adjust the feet to ensure the lathe rests evenly on the floor, then tighten the nuts securely.
  7. Reinstall the headstock, tailstock, and tool rest.
Figure 2: Illustration of stand leg assembly with adjustable feet (A), stand leg (B), hex nut (C), and cap screws (D).
Figure 2: Detailed view of the stand leg assembly, highlighting adjustable feet, stand leg, hex nut, and cap screws for mounting.

Stand Shelf

An optional shelf can be constructed to fit between the stand legs, as shown in Figure 3. This shelf is useful for storing lathe accessories or adding sandbags for extra weight. The shelf requires two 2x4s, each 55-3/4" long, and two pieces of plywood, each 27-13/16" x 17-1/2". Assemble the plywood between the 2x4 supports using screws.

Figure 3: Diagram showing the construction of an optional stand shelf using 2x4s and plywood, with dimensions 55-3/4 inch 2x4 and 27-13/16 inch plywood.
Figure 3: Schematic for constructing an optional stand shelf, indicating dimensions for 2x4 supports and plywood sections.

Operating Instructions

Controls and Features

Familiarize yourself with the controls and features of your JET JWL-1442VS Wood Lathe for safe and efficient operation. Refer to Figure 4 for the location of these components.

  • Headstock Lock Handle (E, Figure 4): Loosen this handle to unlock the headstock, allowing it to be positioned anywhere along the lathe bed. Tighten the handle firmly once the headstock is in the desired position.
  • Headstock Indexing Pin (F, Figure 4): To unlock the plunger, turn the knurled knob counter-clockwise. Pull the knob out to release the headstock. Unlock the headstock locking handle and rotate the headstock. Turn the knurled knob clockwise until it stops to lock the plunger.
Figure 4: Close-up view of the headstock, showing the Headstock Lock Handle (E) and Headstock Indexing Pin (F).
Figure 4: Detailed view of the headstock controls, identifying the lock handle and indexing pin.

Electrical Operation (115V and 230V)

The JET JWL-1442VS Wood Lathe can operate on both 115V and 230V power supplies. Ensure the lathe is correctly wired for your specific power source. Consult the wiring diagram in the full manual for detailed instructions on electrical connections and safety precautions.

Workpiece Mounting and Turning

Properly mounting your workpiece is crucial for safe and effective turning. This section covers:

  • Mounting Workpiece Between Centers
  • Stock Selection and Preparation
  • Roughing Out
  • Creating Beads, Coves, "V" Cuts, and Parting
  • Sanding and Finishing Techniques

For detailed instructions on these operations, including specific tools and techniques for face plate or bowl turning, mounting stock with a face plate or chuck, and wood selection considerations, please refer to the comprehensive manual.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your JET JWL-1442VS Wood Lathe. Key maintenance procedures include:

  • Adjusting the Clamping Mechanism: Periodically check and adjust the clamping mechanisms to ensure secure operation.
  • Changing the Belt and Bearings: Instructions for replacing the drive belt and bearings are provided in the full manual to maintain smooth and quiet operation.

Always disconnect power before performing any maintenance.

Troubleshooting

This section provides guidance on identifying and resolving common issues that may arise during the operation of your JET JWL-1442VS Wood Lathe. For a comprehensive troubleshooting guide, including solutions for distortion, checks, and cracks in wood, consult the complete owner's manual.

Parts Breakdown and Diagrams

The full manual includes explosive view parts diagrams and a detailed wiring diagram. These resources are essential for identifying specific components, ordering replacement parts, and understanding the electrical layout of your JET JWL-1442VS Wood Lathe.

© 2023 JET. All rights reserved. This manual is for informational purposes only.
