FAGOR Oven Baking Tray Instruction Manual

1. Introduction

This instruction manual provides essential information for the safe and effective use of your FAGOR Oven Baking Tray, Model 4535878. This product is an original manufacturer part designed for specific FAGOR oven models. Please read this manual thoroughly before first use and retain it for future reference.

2. Safety Instructions

• Always handle the baking tray with oven mitts or heat-resistant gloves when it is hot.
• Ensure the tray is correctly positioned on the oven racks to prevent tipping.
• Do not use abrasive cleaners or sharp objects that could damage the tray's surface.
• Avoid sudden temperature changes, such as placing a hot tray directly into cold water, as this may cause warping or damage.
• Keep out of reach of children.

3. Product Overview

The FAGOR Oven Baking Tray (Model 4535878) is a genuine replacement or accessory part for compatible FAGOR ovens. It is constructed for durability and even heat distribution.

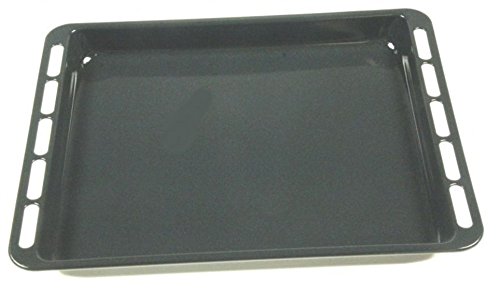

Figure 1: FAGOR Oven Baking Tray. This image shows the rectangular baking tray, typically made of metal, designed to fit into FAGOR ovens for various cooking and baking purposes.

Dimensions:

• Length: 37.5 cm
• Width: 44.5 cm
• Height: 4.1 cm

4. Setup and Installation

1. Before first use, wash the baking tray with warm soapy water and dry thoroughly.
2. Ensure your oven is clean and free of debris.
3. Slide the baking tray onto the desired oven rack level. Ensure it is stable and level before placing food on it.
4. For optimal cooking, preheat your oven with the tray inside if the recipe requires it.

5. Operating Instructions

This baking tray is suitable for a variety of cooking and baking applications in compatible FAGOR ovens. Always refer to your oven's specific user manual for general operation guidelines.

• Place food directly on the tray or on parchment paper/foil as per your recipe.
• Insert the tray into the preheated oven at the appropriate rack level.
• Monitor cooking progress and remove the tray using oven mitts when food is done.
• Allow the tray to cool down before cleaning.

6. Cleaning and Maintenance

Proper cleaning and maintenance will extend the life of your FAGOR Oven Baking Tray.

• After Each Use: Allow the tray to cool completely. Wash with warm, soapy water using a soft sponge or cloth. For stubborn food residues, soak the tray in warm soapy water for a period before cleaning.
• Avoid: Do not use steel wool, abrasive pads, or harsh chemical cleaners, as these can scratch or damage the surface.
• Drying: Dry the tray thoroughly after washing to prevent water spots and rust, especially if it is not made of stainless steel.
• Storage: Store the clean, dry tray in a safe place where it will not be scratched or bent.

7. Troubleshooting

If you encounter issues with your baking tray, consider the following:

• Food Sticking: Ensure the tray is properly greased or lined with parchment paper/foil as required by the recipe. Overcooking can also cause food to stick.
• Warping: This can occur due to extreme temperature changes. Always allow the tray to cool gradually. Ensure the oven is preheated evenly.
• Difficulty Cleaning: Soak the tray in hot soapy water immediately after use to loosen baked-on food. Avoid letting food dry and harden on the tray.

8. Specifications

Compatible Oven Models: AS0000026, 6H-220 X, 6H750ANEPO, 6H750BE, 6H755AB, 6H755AX, 6H755BB, 6H755BX, 6H755CX, 6H757BX, 6H757CX, 6H760AB, 6H760AN, 6H760AX, 6H760AXAUS, 6H760BB, 6H760BN, 6H760BX, 6H860AX, 6H865BX, 6H870ATCX, 6H870BTBTCV, 6H875ATCX, 6H875ATCXAUS, 6H876ATCX, 6H880ATCX, FC1032X, FSO1100X, FSO1700X, H7960XS, HP7460AX, HP7660AX, SFC1110X1, 6H755AX1, 6H760AN1, 6H870ATCX1, 6H875ATCX, SFC1110B, FC1243X, FC1141B, FC1141X, FC941W, FC941B, FC941X, FC1132B1, FC1132X1, FC1141B1, FC1240B, FC1240W, FC1240X, FC941M1, FE1220X, FP1060X1, FP1067XN1, FP12760XC, FP1364B, FP1364M, FP1364W, FP1364X, FP1371X, TFP2610X1.

9. Warranty and Support

As an original manufacturer part, this FAGOR Oven Baking Tray is typically covered by the warranty terms of your FAGOR appliance or the standard warranty for replacement parts. Please refer to your original oven documentation or contact FAGOR customer support for specific warranty details and assistance.

For further support or inquiries, please visit the official FAGOR website or contact their customer service department.
