1. Introduction
The EISCO Economy Spectroscope Tube is an educational instrument designed for observing and analyzing the visible light spectrum. It utilizes a built-in diffraction grating to separate light into its constituent wavelengths, providing a hands-on method for studying optics and spectral analysis. This manual provides instructions for the proper setup, operation, and care of your spectroscope.

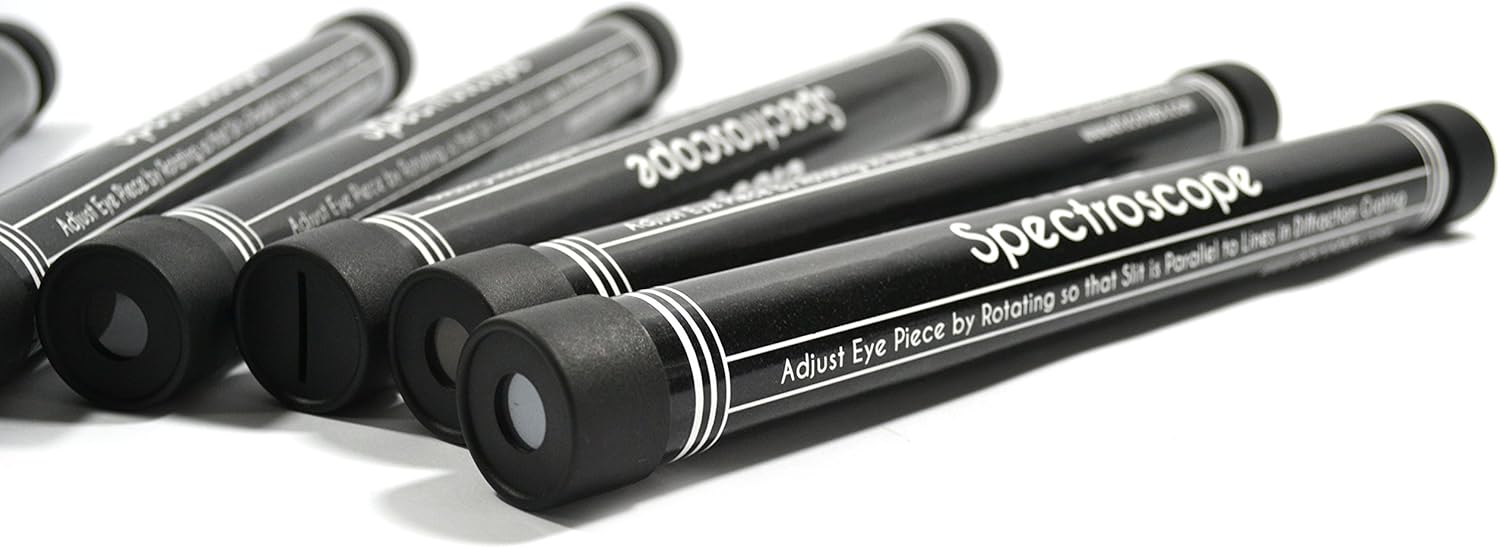

Image 1.1: A pack of EISCO Economy Spectroscope Tubes.
2. Components
Each EISCO Economy Spectroscope Tube consists of the following main components:
- Spectroscope Body: The main tube housing the optical components.
- Eyepiece: The end through which you observe the spectrum. It contains the diffraction grating.
- Slit Cap: The adjustable cap on the opposite end of the eyepiece, which controls the amount and shape of light entering the spectroscope.
- Diffraction Grating: An internal optical component that separates light into its spectrum.
Image 2.1: Eyepiece of the spectroscope.
3. Setup
- Unpack: Carefully remove the spectroscope tubes from their packaging.
- Inspect: Check each spectroscope for any visible damage. Ensure both end caps are securely in place.
- Familiarize: Identify the eyepiece (the end with the diffraction grating) and the slit cap (the end with the adjustable slit).
- Adjust Slit: The slit cap can be rotated. For initial observation, ensure the slit is open enough to allow light in, but not excessively wide, as a narrower slit provides better spectral resolution. The instruction on the tube states: "Adjust Eye Piece by Rotating so that Slit is Parallel to Lines in Diffraction Grating". This refers to aligning the slit for optimal viewing.
4. Operating Instructions
Follow these steps to observe light spectra using your spectroscope:
- Point Towards Light Source: Hold the spectroscope with the slit cap end pointed towards the light source you wish to analyze. Ensure the light source is not excessively bright (e.g., do not look directly at the sun).
- Look Through Eyepiece: Place your eye close to the eyepiece.
- Observe Spectrum: You should see a band of colors (the spectrum) within the field of view. The colors will be arranged from red to violet.
- Adjust Slit (if necessary): If the spectrum appears blurry or too dim, gently rotate the slit cap to adjust the width of the light entering the spectroscope. A narrower slit generally provides a sharper, more defined spectrum, while a wider slit allows more light, making dimmer sources easier to observe.
- Analyze Different Light Sources: Experiment with various light sources such as incandescent bulbs, fluorescent lights, LED lights, or natural daylight to observe their unique spectral patterns.
Image 4.1: Example of a light spectrum observed through the spectroscope.
Safety Note: Never look directly at the sun or other extremely bright light sources through the spectroscope, as this can cause eye damage.
5. Maintenance
- Cleaning: Use a soft, dry cloth to wipe the exterior of the spectroscope. Avoid using abrasive cleaners or solvents.
- Lens Care: If the eyepiece or slit cap becomes dusty, gently blow off loose particles. For smudges, use a lens cleaning cloth specifically designed for optics. Do not touch the diffraction grating directly.
- Storage: Store the spectroscopes in a cool, dry place, away from direct sunlight and extreme temperatures. Keep them in their original packaging or a protective case to prevent dust accumulation and physical damage.
- Handling: Handle the spectroscopes with care to avoid dropping them or applying excessive force, which could dislodge internal components or damage the diffraction grating.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No spectrum visible or very dim. | Insufficient light source; slit is too narrow; spectroscope not pointed correctly. | Ensure adequate light; rotate slit cap to widen the slit; aim directly at the light source. |
| Spectrum is blurry or indistinct. | Slit is too wide; light source is too diffuse; diffraction grating misaligned (unlikely for user). | Rotate slit cap to narrow the slit; use a more focused light source if possible. |
| End caps come off easily. | Normal for some models; caps are designed to be removable. | Gently push caps back into place. Handle with care to avoid losing internal components. |
7. Specifications
- Model Number: PH0596CBT6
- Brand: EISCO
- Product Dimensions: Approximately 10.25 inches (26 cm) long with a 1 inch (2.5 cm) body diameter
- Item Weight: 1.6 ounces
- Primary Function: Classroom optics instrument for light spectrum analysis
- Key Feature: Built-in diffraction grating, adjustable slit cap
8. Support Information
For further assistance or inquiries regarding the EISCO Economy Spectroscope Tube, please contact EISCO customer support through their official channels. Refer to the product packaging or the EISCO website for current contact details.
