1. Introduction
Thank you for choosing the YATO YT-09741 Air Belt Sander. This pneumatic belt sander is designed for various sanding tasks, offering precision and efficiency. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your tool. Please read it thoroughly before use and keep it for future reference.
2. Safety Information
Always observe basic safety precautions to reduce the risk of personal injury and damage to the tool. Failure to follow these instructions may result in serious injury.
- Eye Protection: Always wear ANSI-approved safety goggles or safety glasses with side shields when operating this tool.
- Hearing Protection: Wear hearing protection during extended use to prevent hearing damage.
- Respiratory Protection: Wear a dust mask or respirator when sanding materials that produce fine dust.
- Disconnect Air Supply: Always disconnect the air supply before changing accessories, performing maintenance, or when the tool is not in use.
- Secure Workpiece: Ensure the workpiece is securely clamped or held to prevent movement during sanding.
- Proper Ventilation: Operate the tool in a well-ventilated area.
- Avoid Explosive Atmospheres: Do not operate the tool in the presence of flammable liquids, gases, or dust.
- Keep Hands Clear: Keep hands and fingers away from the moving sanding belt and other rotating parts.
- Inspect Tool: Before each use, inspect the tool for any damage or wear. Do not use a damaged tool.
- Air Pressure: Do not exceed the maximum recommended air pressure for the tool.
3. Package Contents
Verify that all items are present upon unpacking. If any parts are missing or damaged, contact your supplier immediately.
- YATO YT-09741 Air Belt Sander
- 3 Abrasive Belts (K60, K80, K120)
- Air Quick Connector
- Hex Key
Figure 3.1: YATO YT-09741 Air Belt Sander and accessories as packaged.
Figure 3.2: Included accessories: sanding belts, air quick connector, and hex key.
4. Product Overview
The YATO YT-09741 is a compact pneumatic belt sander designed for precise sanding in confined spaces. It features a durable construction and an adjustable sanding head for versatile applications.

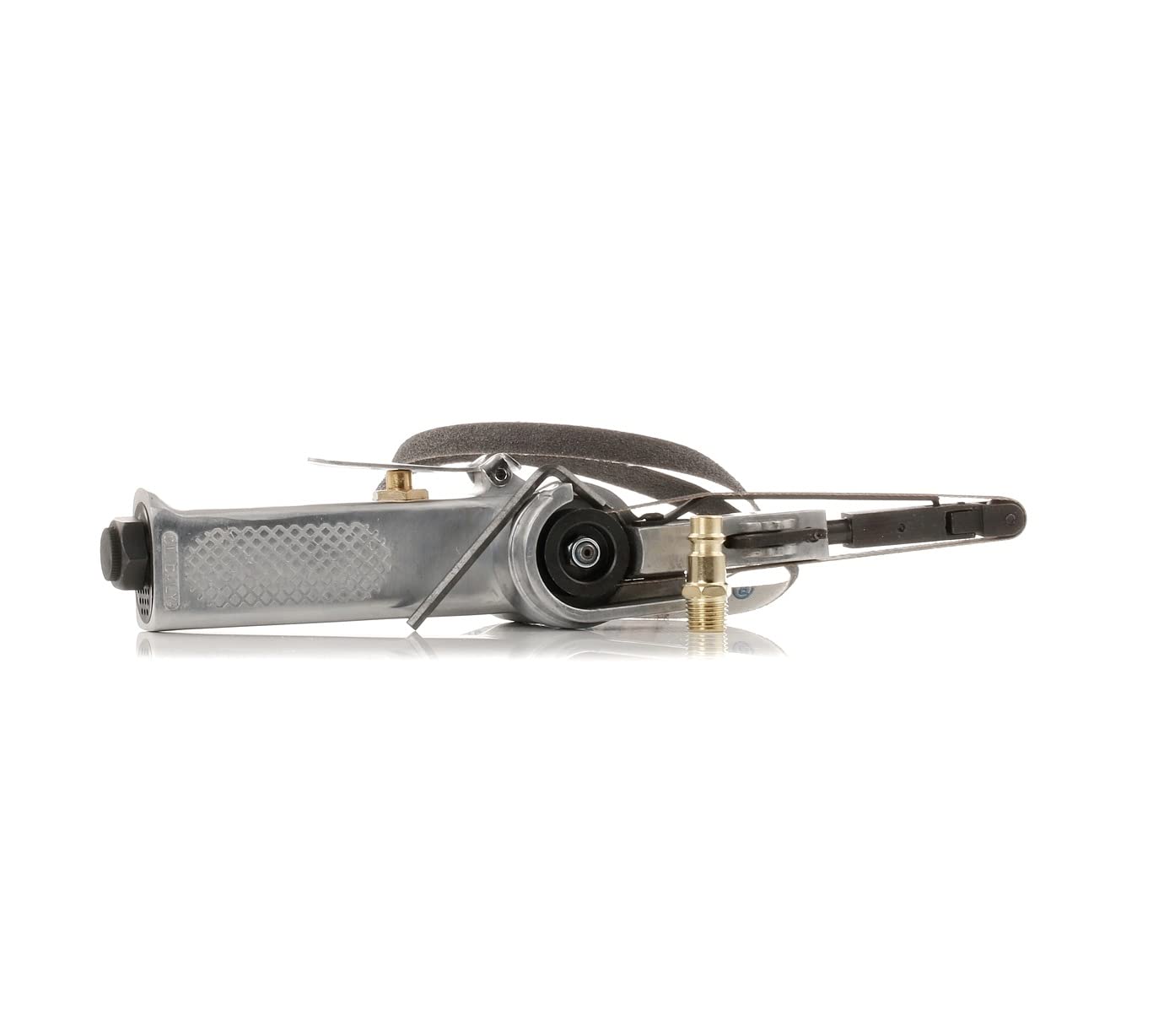

Figure 4.1: Close-up view of the YATO YT-09741 Air Belt Sander.
5. Setup
5.1 Connecting Air Supply
- Ensure your air compressor is capable of providing the required air pressure and volume (refer to Specifications section).
- Attach the supplied air quick connector to the air inlet of the sander.
- Connect the air hose from your compressor to the quick connector.
- Ensure all connections are secure to prevent air leaks.
5.2 Installing or Changing Sanding Belt
- Disconnect the air supply before attempting to change the sanding belt.
- Locate the belt tension release lever or mechanism on the sander.
- Engage the release mechanism to loosen the tension on the current belt.
- Carefully slide the old belt off the rollers.
- Select the desired new sanding belt (e.g., K60 for coarse, K120 for fine).
- Slide the new belt onto the rollers, ensuring the directional arrow on the belt (if present) matches the rotation direction of the sander.
- Release the tension mechanism to secure the new belt. Ensure the belt is centered and properly tensioned.
6. Operating Instructions
6.1 Adjusting the Sanding Head
The sanding head of the YATO YT-09741 can be continuously adjusted to various angles, allowing access to different work areas and optimizing sanding performance.
- Loosen the locking mechanism for the sanding head (usually a knob or lever near the pivot point).
- Adjust the sanding head to the desired angle.
- Tighten the locking mechanism securely to fix the head in position.

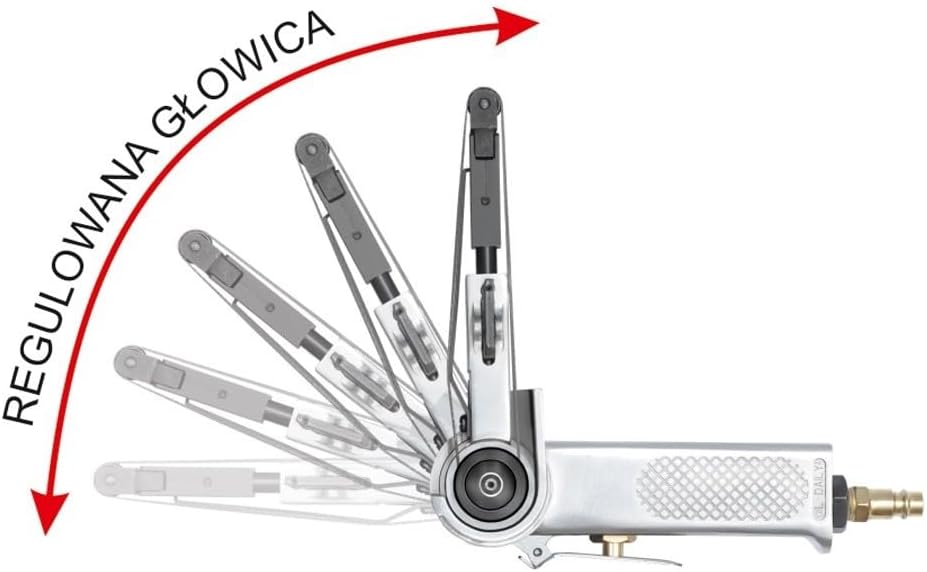

Figure 6.1: Adjustable sanding head positions.
6.2 Sanding Techniques
- Ensure the workpiece is clean and free of debris.
- Hold the sander firmly with both hands.
- Start the sander before making contact with the workpiece.
- Apply light, even pressure and move the sander smoothly across the surface. Avoid excessive pressure, which can reduce efficiency and damage the belt or workpiece.
- For best results, sand with the grain of the material.
- Periodically check the sanding belt for wear and replace it when necessary.
- When finished, lift the sander from the workpiece before releasing the trigger.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your air belt sander. Always disconnect the air supply before performing any maintenance.
7.1 Cleaning
- After each use, clean the tool to remove dust and debris. Use compressed air to blow out any particles from the motor housing and belt area.
- Wipe the exterior of the tool with a clean, dry cloth. Do not use solvents that could damage plastic parts.
7.2 Lubrication
- For pneumatic tools, it is recommended to add a few drops of pneumatic tool oil into the air inlet before each use or after every hour of continuous operation. This lubricates internal components and prevents corrosion.
7.3 Belt Replacement
Refer to Section 5.2 for detailed instructions on how to install or change sanding belts.
8. Troubleshooting
If you encounter issues with your YATO YT-09741 Air Belt Sander, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Sander does not start or runs slowly. | Low air pressure or insufficient air volume. Clogged air inlet. Lack of lubrication. | Check air compressor settings and hose for leaks. Clean air inlet filter. Add pneumatic tool oil. |
| Sanding belt slips or comes off. | Belt not properly tensioned. Incorrect belt size. Worn rollers. | Ensure belt is correctly installed and tensioned. Use correct 10x330mm belts. Inspect rollers for wear. |
| Excessive vibration. | Damaged or unbalanced sanding belt. Loose components. | Replace sanding belt. Check all fasteners and tighten if necessary. |
| Poor sanding performance. | Worn or incorrect grit sanding belt. Excessive pressure. | Replace with a new belt of appropriate grit. Apply lighter, even pressure. |
9. Specifications
Technical data for the YATO YT-09741 Air Belt Sander.
- Model Number: YT-09741
- Power Type: Pneumatic
- Sanding Belt Size: 10 mm x 330 mm
- Sanding Surface: 10 mm x 110 mm
- Included Belts: 3 (K60, K80, K120)
- Product Dimensions (L x W x H): 50 x 50 x 28 cm
- Weight: 804 grams
- Manufacturer: Yato
Figure 9.1: Key technical specifications.
10. Warranty and Support
Information regarding warranty coverage and customer support for the YATO YT-09741 Air Belt Sander is not available in the provided product details. Please refer to the product packaging or contact your point of purchase for specific warranty terms and support options.
For spare parts availability, information is currently unavailable. Please consult your retailer or the manufacturer's official channels for further assistance.
