Product Overview
The Nite Ize Figure 9 Tent Line Kit provides a simple and effective method for tensioning and securing tent guy lines without the need for complex knots. This kit includes four lightweight Figure 9 devices and four 8-foot reflective guy lines, designed to enhance tent stability and visibility during outdoor activities.
Image: Nite Ize Figure 9 Tent Line Kit packaging. The kit contains four black Figure 9 devices attached to green reflective cords. A tent is visible in the background, illustrating the product's use for securing tent lines. A QR code is visible on the packaging, linking to additional product information.
For more information, visit the official product page: Nite Ize Figure 9 Tent Line Kit
Features
- Knot-Free Tensioning: Allows for easy tightening and adjustment of lines without tying knots.
- Reflective Guy Lines: Includes four 8-foot (2.4m) green reflective cords for improved nighttime visibility, reducing tripping hazards.
- Durable Construction: Lightweight black plastic Figure 9 devices (2 grams each).
- Versatile Compatibility: Compatible with cord sizes from 1/16" to 3/16" (2mm to 5mm).
- Integrated Instructions: Engraved instructions on the Figure 9 device guide users through the tensioning process.
Setup and Operation
The Figure 9 offers two primary methods for securing lines: the Fixed End System and the Loop System. Both methods are designed for quick and secure tensioning.
Image: Back of the product packaging illustrating the two main tightening techniques for the Figure 9 device. The "Fixed End System" shows how to secure one end of the rope to a fixed point, while the "Loop System" demonstrates creating an adjustable loop. Both methods are depicted with five sequential steps.
Fixed End System
- Secure one end of the guy line to your tent or a fixed anchor point using a knot.
- Pass the free end of the guy line through the larger opening of the Figure 9 device.
- Loop the line around the smaller hook of the Figure 9.
- Pull the line taut to achieve desired tension.
- Secure the line by wrapping it around the serrated edge of the Figure 9, ensuring it locks into place.
Loop System
- Create a loop in your guy line.
- Pass the loop through the larger opening of the Figure 9 device.
- Bring the loop around the smaller hook of the Figure 9.
- Pull the free end of the line to adjust the size of the loop and achieve tension.
- Lock the line by wrapping it around the serrated edge of the Figure 9.
The Figure 9 device has engraved instructions to guide you through these steps.
Image: A close-up of a hand pulling a green reflective guy line through a black Nite Ize Figure 9 device, demonstrating the tensioning process. The device is attached to a tent fabric in the background.
Reflective Guy Lines
The included 8-foot reflective guy lines are designed to increase visibility in low-light conditions, preventing accidental trips and enhancing safety around your tent.
Image: Reflective green guy lines attached to a tent, illuminated in the dark to show their high visibility. A Figure 9 device is visible securing the line near the tent base.
Maintenance
The Nite Ize Figure 9 devices and reflective cords require minimal maintenance to ensure longevity and performance.
- Inspect devices and cords regularly for wear, fraying, or damage before each use.
- Clean with mild soap and water if necessary.
- Store in a dry place away from direct sunlight when not in use to prolong material life.
Safety Information
Warning:
- Not for use where disengagement could result in bodily injury or property damage.
- Not for climbing or load-bearing applications where failure could cause harm.
- Ensure the Figure 9 is properly secured and tensioned before relying on it.
- Always double-check connections, especially in windy conditions.
Specifications
| Feature | Detail |
|---|---|
| Model Number | F9T4-03-01 |
| Brand | Nite Ize |
| Material | Plastic (Figure 9 devices) |
| Item Weight | 2.11 ounces (total kit) |
| Product Dimensions | 3.8 x 0.2 x 2 inches (packaging) |
| Figure 9 Weight (each) | 2 grams |
| Cord Length (each) | 8 feet (2.4 meters) |
| Cord Type | Reflective Green |
| Compatible Cord Sizes | 1/16" - 3/16" (2mm - 5mm) |
| Kit Contents | 4 Figure 9 devices, 4 reflective cords |
Image: Front view of a single Nite Ize Figure 9 device, highlighting its unique shape and the "NITE IZE FIGURE 9" engraving.

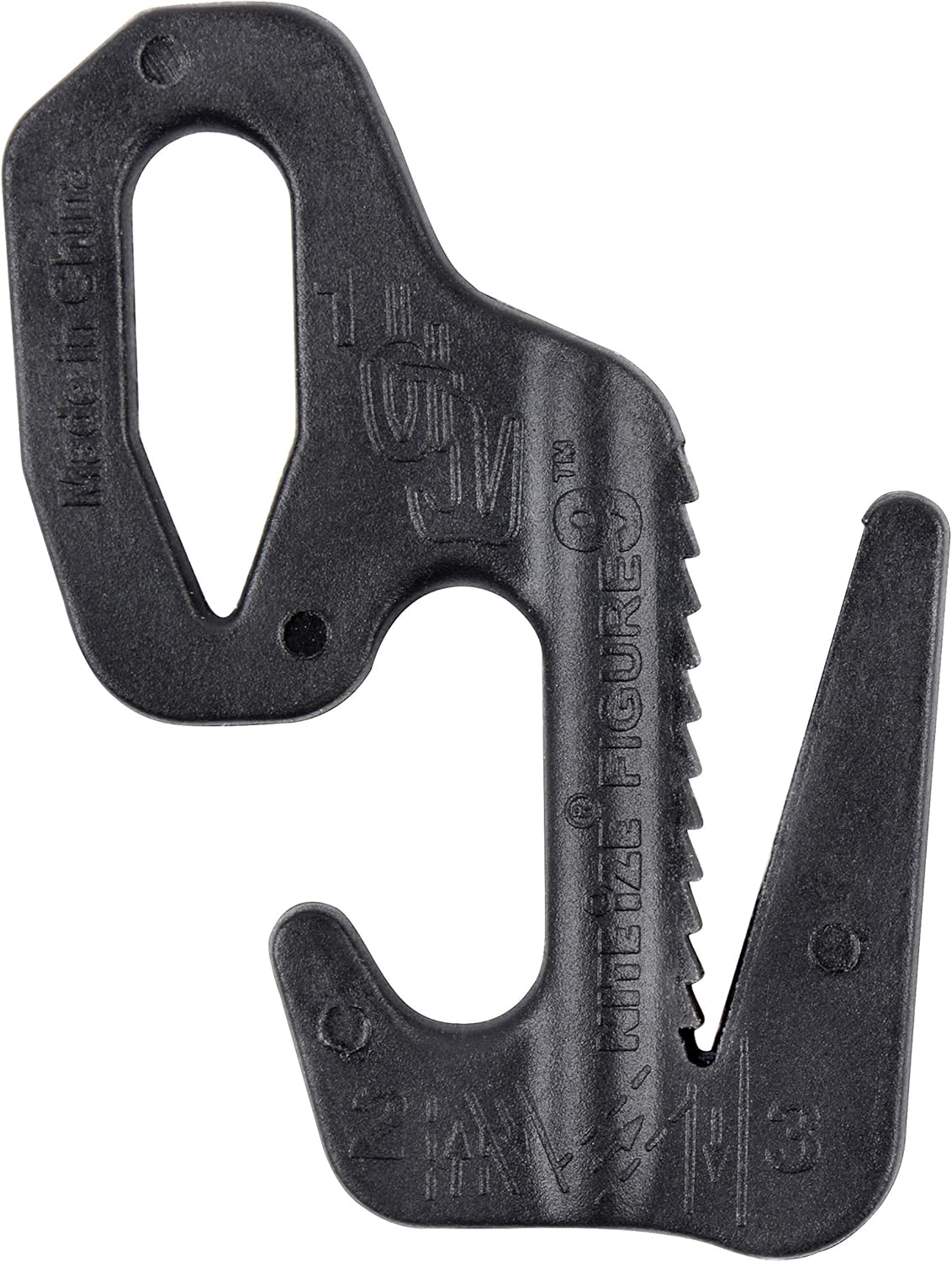

Image: Back view of a single Nite Ize Figure 9 device, displaying the indicated cord sizes (1/16" - 3/16" or 2mm - 5mm) and manufacturing origin.
Warranty and Support
All Nite Ize products purchased from authorized resellers are backed by our Worry-Free Guarantee. For warranty claims or support, please contact Nite Ize directly.
Manufacturer: NITE IZE
Part Number: F9T4-03-01
For additional information, visit the Nite Ize website: www.niteize.com
