Hangsun HOC400 Portable Oral Irrigator Instruction Manual

1. Important Safety Information

Please read all instructions carefully before using this product and retain for future reference. Failure to follow these instructions could result in injury or damage to the product.

• This device is designed for oral hygiene only. Do not use it for any other purpose.
• Do not immerse the charging base in water. The main unit is IPX7 waterproof, meaning it can withstand immersion in water up to 1 meter for 30 minutes, but the charging base is not.
• Keep out of reach of children. This product is not a toy.
• Do not use if you have an open wound in your mouth or have recently undergone oral surgery without consulting a dentist.
• Ensure the power adapter is compatible with your local voltage (100-240V).
• The device features a 2-minute automatic shut-off function to prevent overuse and conserve battery.
• The handle is designed with a non-slip grip for secure handling during use.

2. Product Overview

The Hangsun HOC400 is a portable oral irrigator designed for effective dental cleaning. It utilizes a high-pressure water jet to remove plaque and food debris from between teeth and below the gumline.

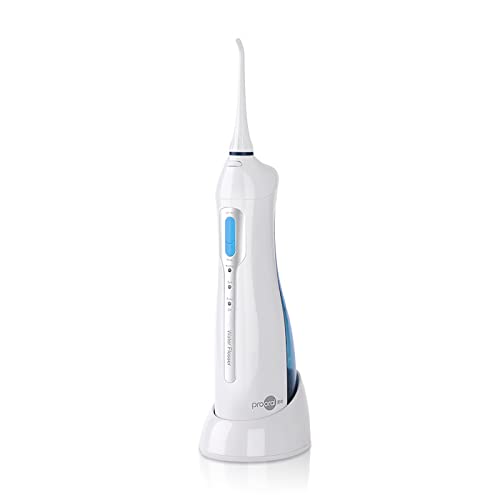

Image: The Hangsun HOC400 Portable Oral Irrigator in white, standing upright on its charging base. The device features a slender, ergonomic body with a blue power button and indicator lights on the front panel. A transparent blue water tank is visible on the side. A pointed nozzle extends from the top of the unit.

Components:

• Main Unit (with integrated water tank)
• Standard Nozzle
• Charging Base
• Power Adapter

3. Key Features

• Powerful Cleaning: Delivers approximately 1,400 pulses per minute, effectively removing plaque and debris from hard-to-reach areas.
• Enhanced Oral Health: Removes approximately 99.9% of plaque, offering 3 times the cleaning effect of dental floss and 4 times that of rinsing.
• Multiple Pressure Modes: Features 3 water flow settings (Normal, Soft, Pulse) to suit individual needs and sensitivities.
• Adjustable Pressure: Water pressure ranges from approximately 275 to 620 kPa, suitable for periodontal pocket cleaning, interdental cleaning, and gum care. Includes a massage effect.
• Portable Design: Compact with a 150mL water tank, ideal for travel.
• Quiet Operation: Operates at a noise level below 75dB.
• Cordless Charging: Convenient inductive charging by simply placing the unit on its stand.
• Global Voltage Support: Compatible with 100-240V power sources, making it suitable for international travel.
• Waterproof: IPX7 rated for use in wet environments like the shower.
• Automatic Shut-off: Automatically turns off after 2 minutes of continuous use.

4. Setup

4.1 Initial Charging

1. Connect the power adapter to the charging base.
2. Plug the power adapter into a suitable electrical outlet.
3. Place the main unit onto the charging base. The indicator light will illuminate to show charging is in progress.
4. Charge the device for at least 24 hours before first use to ensure a full battery.

4.2 Attaching the Nozzle

1. Insert the nozzle into the opening at the top of the main unit until it clicks securely into place.
2. To remove the nozzle, press the nozzle release button (usually located on the back or side of the unit) and pull the nozzle straight out.

4.3 Filling the Water Tank

1. Open the water tank cap located on the side of the unit.
2. Fill the tank with lukewarm water. You may also add a small amount of mouthwash if desired, but ensure it is non-foaming.
3. Close the water tank cap securely to prevent leakage.

5. Operating Instructions

5.1 Basic Operation

1. Ensure the water tank is filled and the nozzle is securely attached.
2. Press the power button to turn on the device. The device will start in the last used mode.
3. To change the mode (Normal, Soft, Pulse), press the mode button repeatedly until the desired mode indicator light illuminates.
4. Lean over a sink and place the nozzle tip into your mouth, aiming the water jet at your gumline at a 90-degree angle.
5. Move the nozzle along your gumline, pausing briefly between teeth to allow the water to clean thoroughly.
6. The device will automatically shut off after 2 minutes. You can manually turn it off by pressing the power button again.
7. Empty any remaining water from the tank after each use.

5.2 Recommended Usage

• Start with the 'Soft' mode if you are new to oral irrigators or have sensitive gums. Gradually increase to 'Normal' mode as you become accustomed.
• Use the 'Pulse' mode for gum massage and improved circulation.
• For optimal results, use the oral irrigator after brushing your teeth.

6. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the lifespan of your oral irrigator.

6.1 Cleaning the Main Unit and Water Tank

1. After each use, empty any remaining water from the tank.
2. Rinse the water tank thoroughly with clean water.
3. Wipe the exterior of the main unit with a soft, damp cloth. Do not use abrasive cleaners or harsh chemicals.
4. For a deeper clean, the water tank can be detached and washed with mild soap and water. Ensure it is completely dry before reattaching.

6.2 Cleaning the Nozzle

1. Remove the nozzle from the main unit.
2. Rinse the nozzle under running water.
3. Periodically, soak the nozzle in a cup of white vinegar for 5-10 minutes to remove mineral deposits, then rinse thoroughly.
4. Replace nozzles every 3-6 months, or sooner if they become worn or damaged.

6.3 Storage

Store the device in a cool, dry place away from direct sunlight when not in use. Ensure the water tank is empty and dry before storing.

7. Troubleshooting

If you encounter any issues with your Hangsun HOC400, please refer to the following common problems and solutions:

8. Specifications

• Model: HOC400
• Brand: Hangsun
• Product Dimensions: 6 x 7.5 x 27 cm
• Product Weight: 258 g
• Color: White
• Material: ABS
• Power Source: Battery-operated
• Water Pressure Range: 275-620 kPa
• Water Tank Capacity: 150 mL
• Waterproof Rating: IPX7
• Noise Level: < 75 dB
• Voltage Compatibility: 100-240V

9. Warranty and Support

The Hangsun HOC400 Portable Oral Irrigator comes with a 1-year warranty from the date of purchase.

This warranty covers manufacturing defects under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or failure to follow the instructions in this manual.

For warranty claims, technical support, or any questions regarding your product, please contact Hangsun customer service through your original point of purchase or visit the official Hangsun website for contact information.

Please retain your proof of purchase for warranty validation.
